TS_EN
| EAN code | 8595057605978 |
| Customs code | 72169180 |
| Weight | 0,0350 kg/pcs |
| Material | steel |
| Surface finish | ZNCR |
| Width | 35 mm |
| Height | 7,5 mm |
| Length | 0,1 m |
| Note | with a cut in the end for quick fixing |
| Thickness of metal sheet | 1 mm |

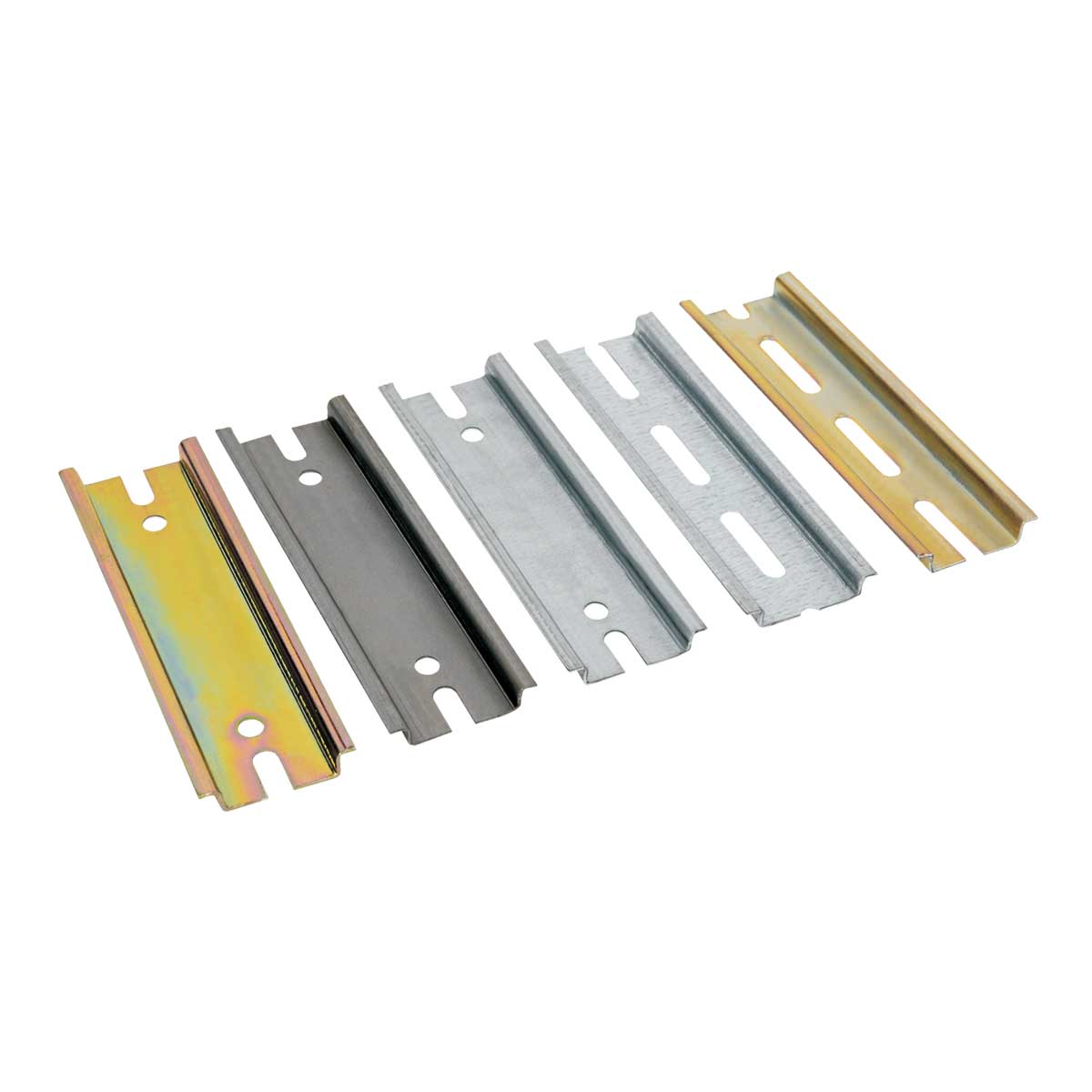

Designed for attaching devices (circuit breakers, contactors, terminals, etc.) in distributors and device boards. At both ends there are holes and grooves for attaching to the washer.
