KUZ_VI_EN
| EAN code | 8595568923684 |
| Customs code | 39259080 |
| Weight | 0,88 kg/pcs |
| Material | tube - PP, box - PC - ABS |
| Halogen free material | yes |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -25 - 60 °C |
| Flaming loop test | 850 °C |
| Width | 156 mm |
| Height | 196 mm |
| Depth | 273 mm |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 30 - 44 |
| Package description individual boxes are packed in separate cardboards | |

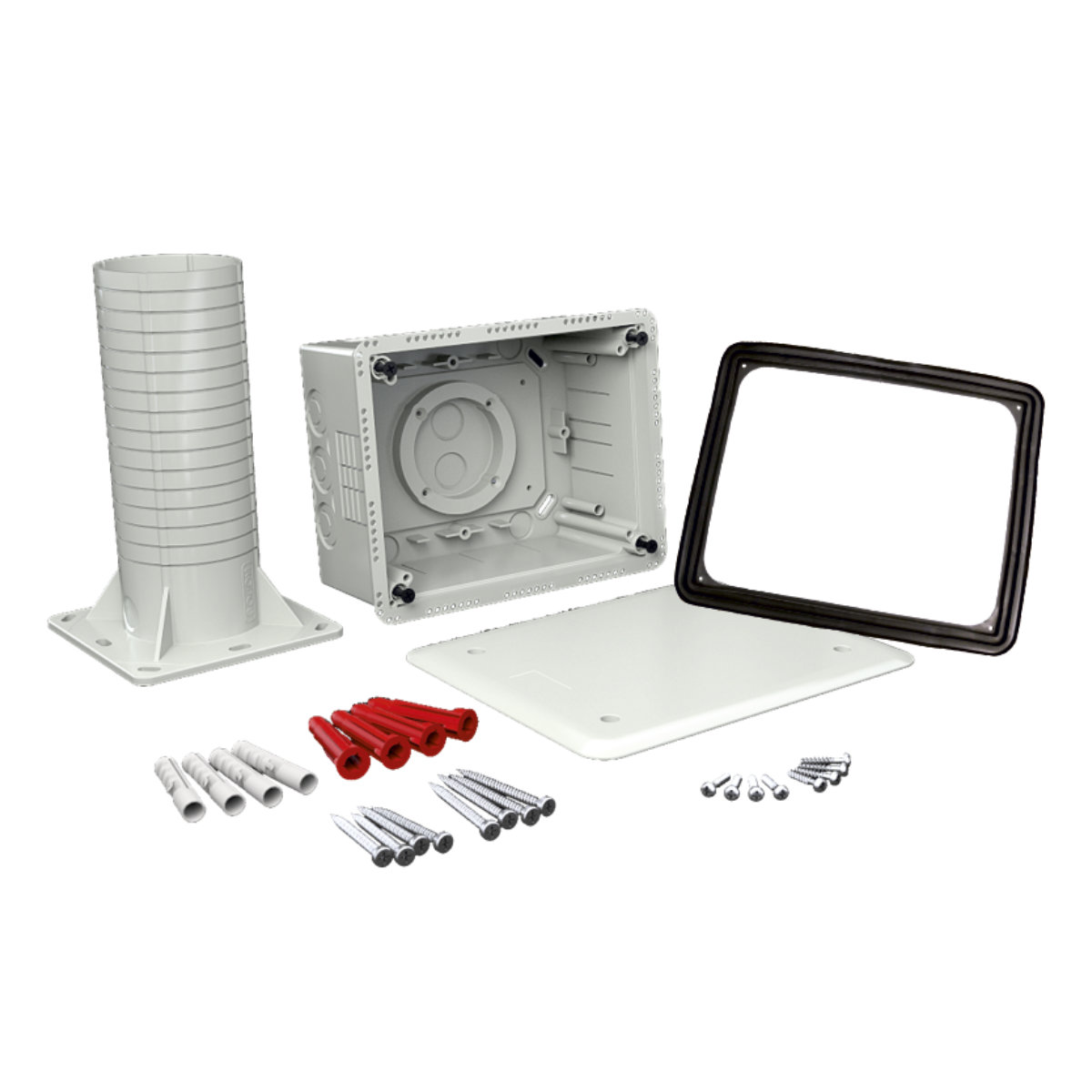

For device installation in insulated building facades with a thickness from 120 - 330 mm. Use as a junction box, for lightning rod measuring clamp and other applications according to the customer. Eliminates thermal bridging. Adjustable depth of the box. The configuration includes a box, a tube, external and internal insulation, assembly set insert, flat lid and stainless steel screws + seal. Robust construction. Protected by a European industrial design and Utility model trademark.
