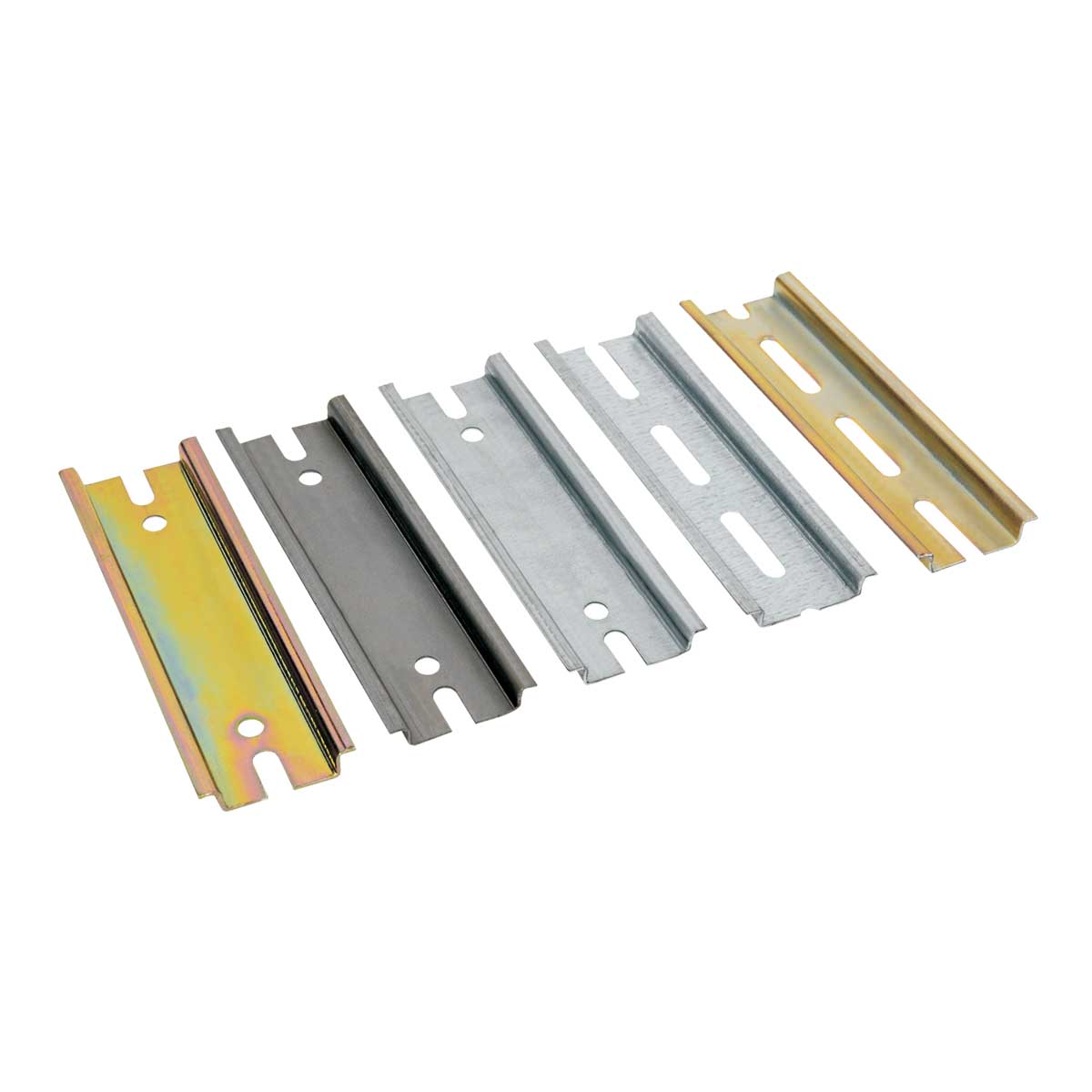

illustrative picture
To download 3D models, please login or create an account and request access.
TS_EN
| EAN code | 8595057631137 |
| Customs code | 72169180 |
| Weight | 0,3500 kg/m |
| Material | steel |
| Surface finish | without surface |
| Width | 35 mm |
| Height | 7,5 mm |
| Length | 3 m |
| Thickness of metal sheet | 1 mm |
Designed for attaching instruments (circuit breakers, contactors, terminals, etc.) in distributors and instrument boards. At both ends there are holes and grooves for attaching to the washer.
