EAN code8595057614741
Customs code85369010
Weight0,0680 kg/pcs
MaterialPA
Halogen free materialyes
Self-extinguishing30 s
Rated voltage<= 500 V
Temperature resistance-30 - +105 °C
Flaming loop test850 °C
Width86 mm
Height86 mm
Thickness24 mm
Cross-section of the connected conductor16 x 4 mm2
Fire reaction class of underlying materialA1 - F
StandardsČSN EN 60 670-1
Package descriptionpacked in shrink foil

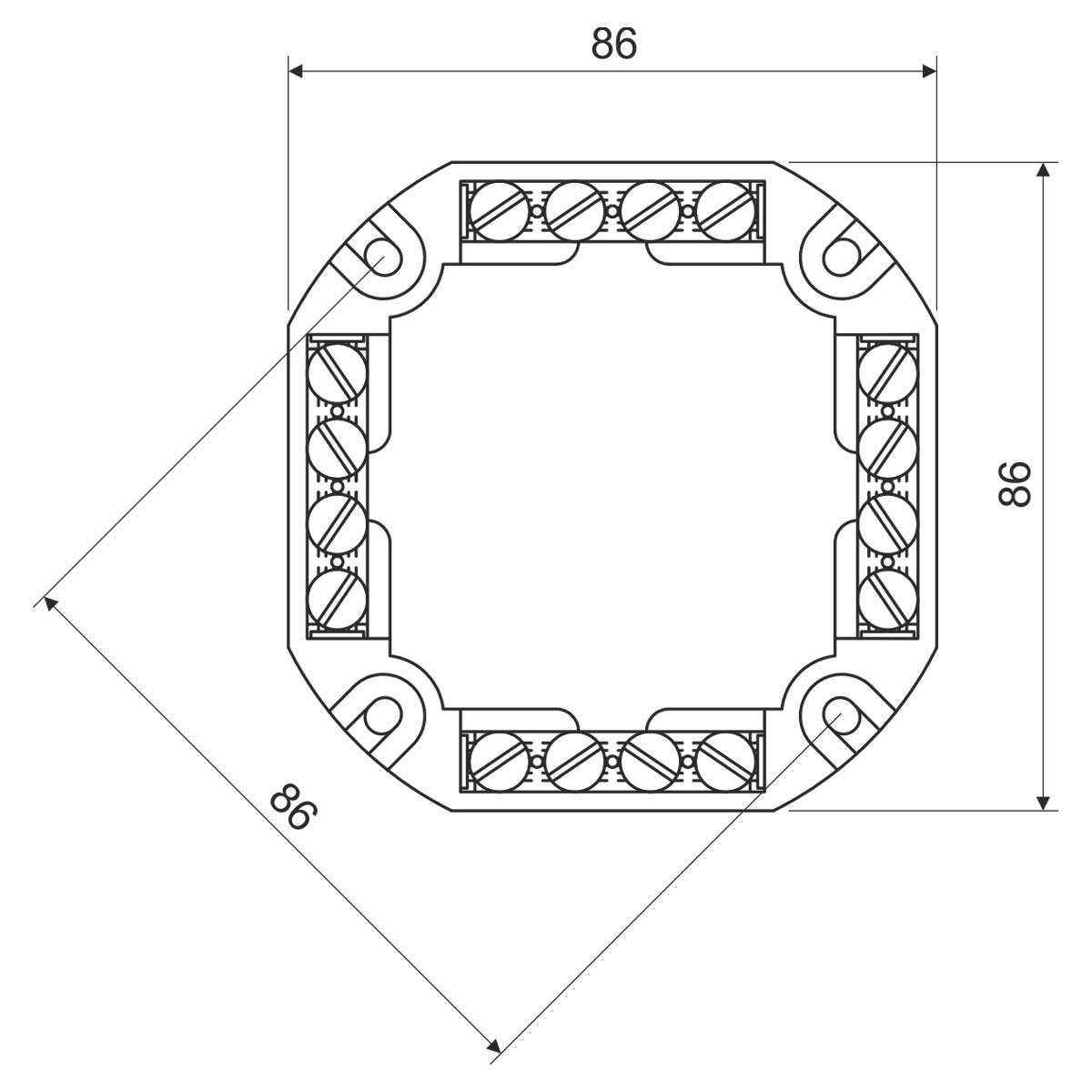

Intended into distribution boxes with fixing spacing of 86 mm (KR 97, KR 97/5). Four separate fields for connecting up to four conductors of up to 4 mm2 in diameter. For voltages of up to 500 V.
