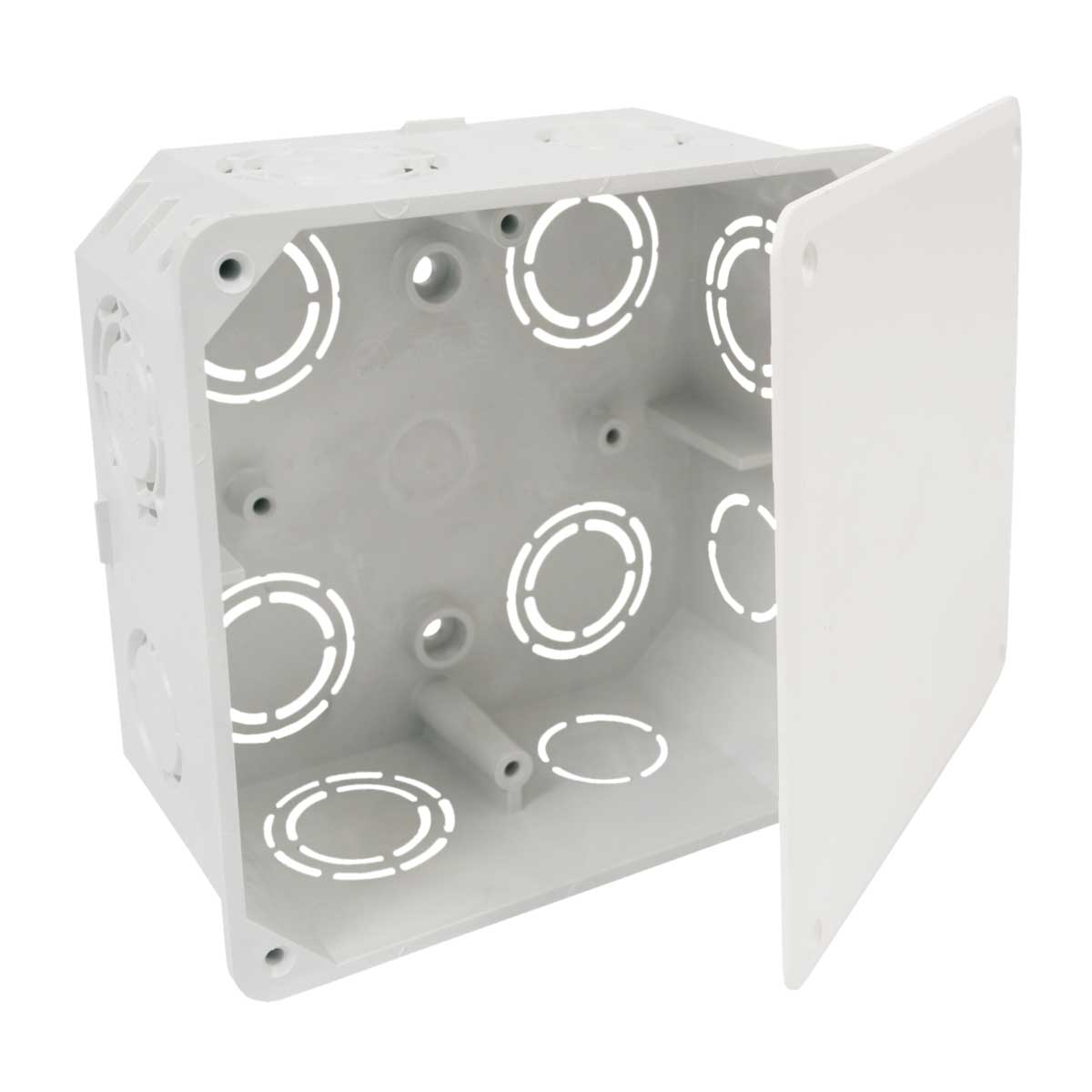

illustrative picture
KO 100 KA - krabice s víčkem
KO 100 KA - krabice s víčkem
To access download of 3D models login or register.
EAN code8595057600133
Customs code85363030
Weight0.16 kg/pcs
MaterialPVC
Self-extinguishing30 sec.
Rated voltage<= 400 V
Rated current<= 16 A
Temperature resistance, range of use-5 - 60 °C
Flaming loop test850 °C
Width107 mm
Height107 mm
Depth50 mm
Fire reaction classA1 - D
StandardsČSN EN 60 670-1
Package description
individual boxes are packed in a shrink foil, straightened in cardboard
A large number of knockouts for inserting cables and pipes.
