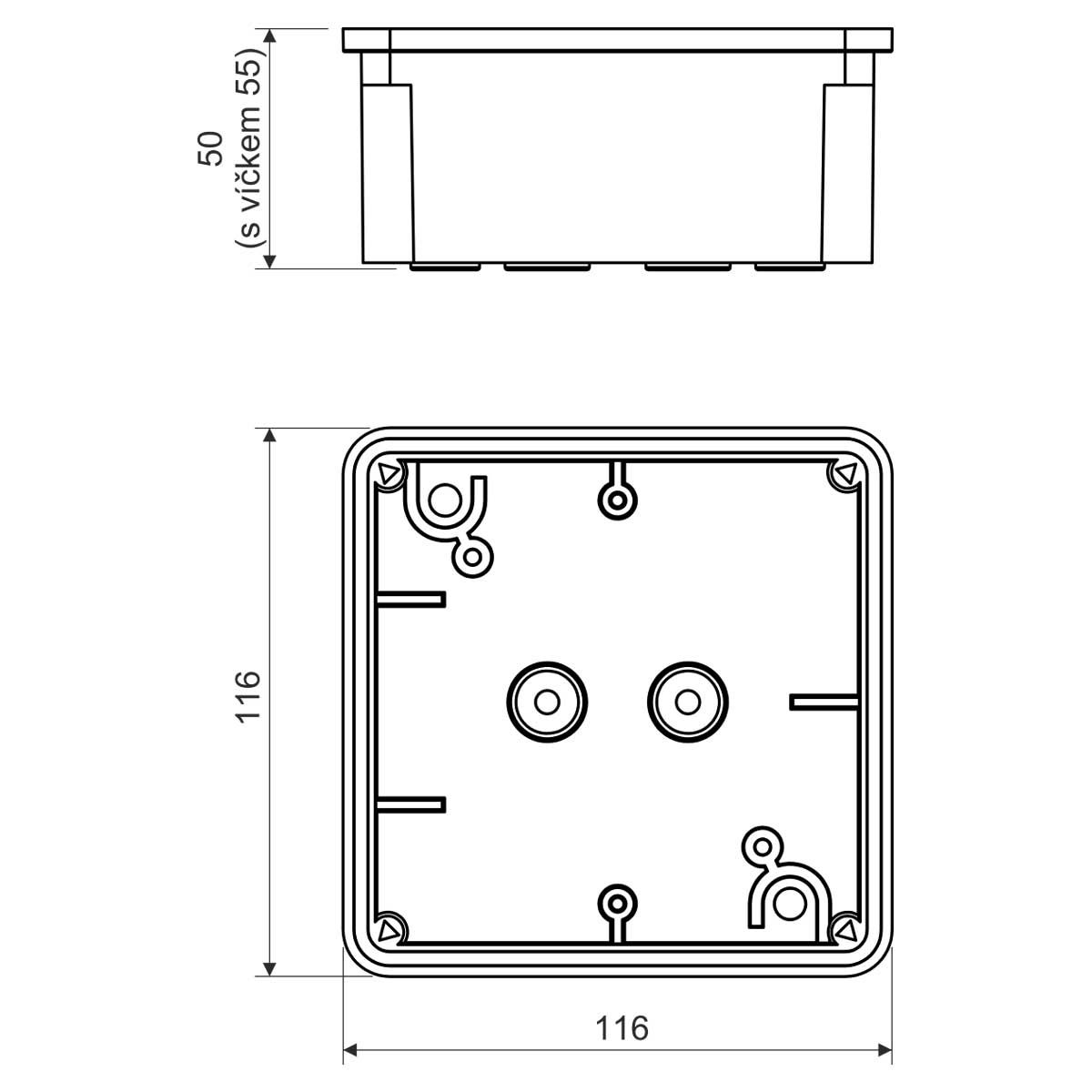

illustrative picture
| EAN code | 8595057603356 |
| Customs code | 39259080 |
| Weight | 0,2180 kg/pcs |
| Colour | dark grey RAL 7012 |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |
| Width | 116 mm |
| Height | 116 mm |
| Depth | 55 mm |
| Fire reaction class of underlying material | A1 - D |
| Protection types | IP 54 |
| Standards | ČSN EN 60 670-1 |
| Package description the screws inserted in the box, each box is packed in a shrink foil and labeled | |
For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Closed box without inlets. To install on materials with fire classes E or F, use thermally insulating pad.
8112_EN
