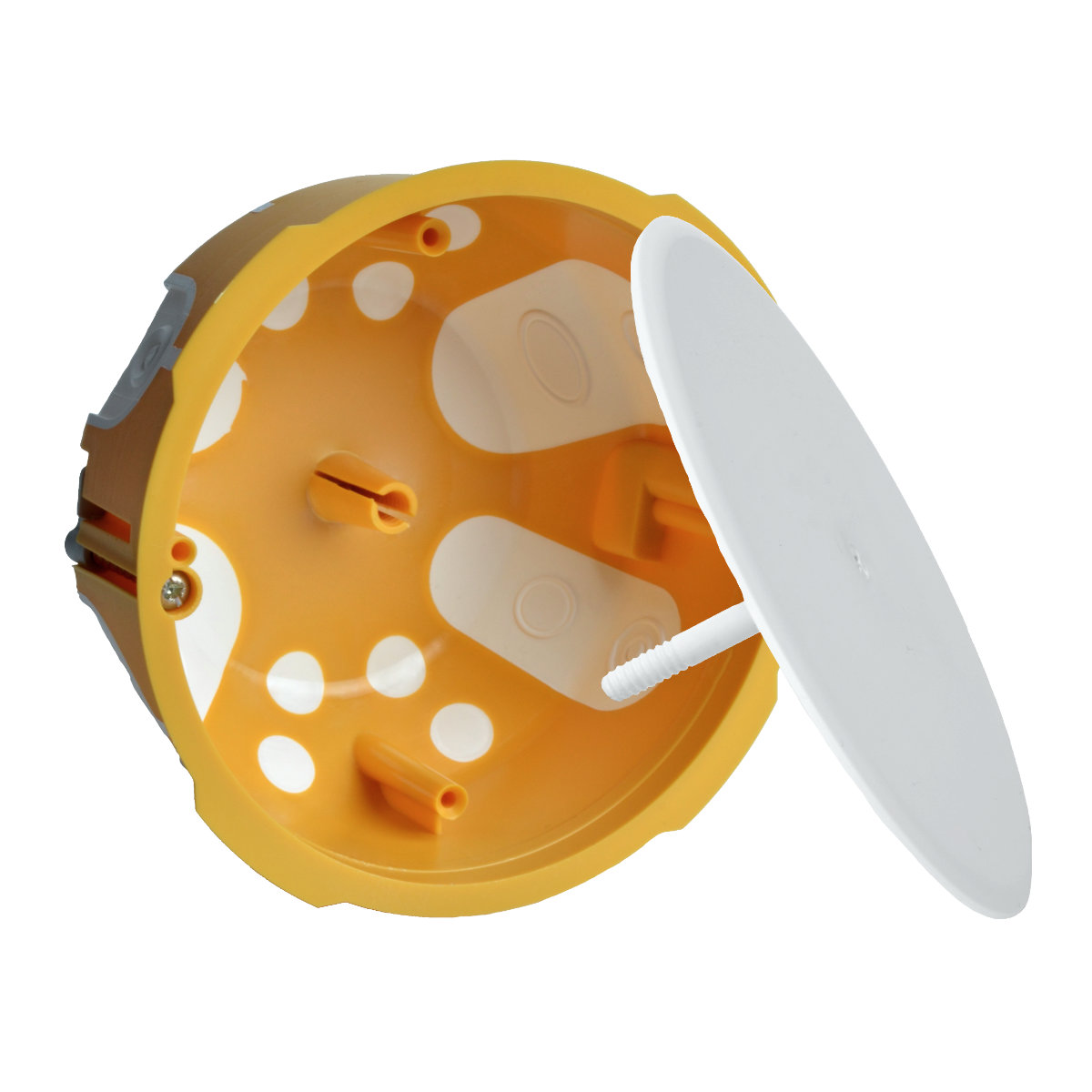

illustrative picture
To access download of 3D models login or register.
EAN code8595568932594
Customs code85363030
Weight0.09 kg/pcs
MaterialPVC
Leadless materialyes
Self-extinguishing30 s
Rated voltage<= 400 V
Rated current<= 16 A
Temperature resistance-5 - 60 °C
Flaming loop test850 °C

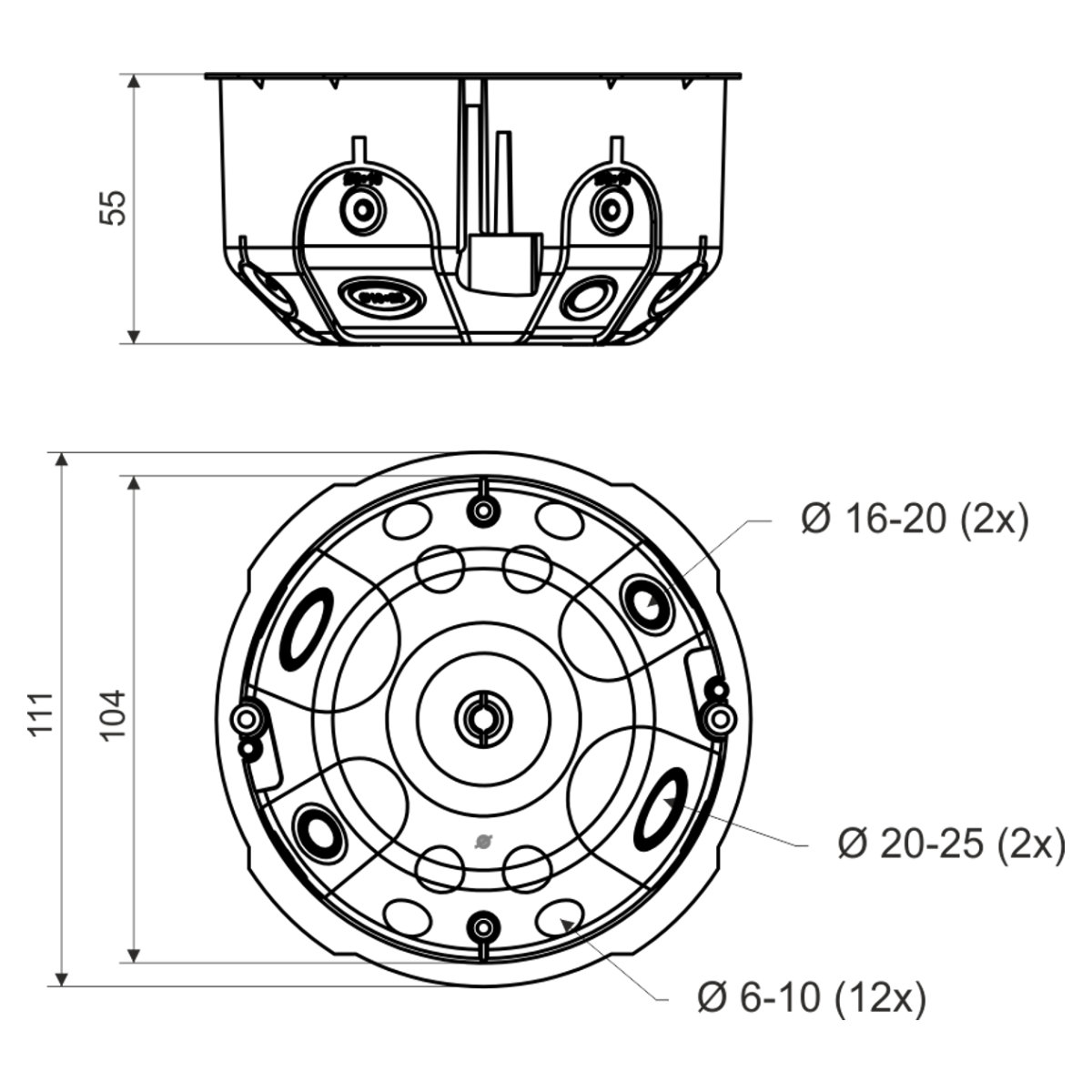

Diameter104 mm
Depth55 mm
Milled (drilled) hole diameter105 mm
Manufactures´s recommendations
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Fire reaction classA1 - F
Protection typesIP30
StandardsČSN EN 60 670-1
Package description
the box is equipped with screws for mounting in plasterboard and with the enclosed lids inserted separately into the carton

Sufficient space to create larger electrical installations. The inlet openings are made of flexible material. Installation of the cable or pipe is done by tearing out the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the resulting hole. Ensured airtightness of the passage even when the cable or pipe is inserted. Prevents airflow through installations. Suitable for low-energy or passive houses. It is not necessary to countersink the edge of the plasterboard during installation. The double thread mounting screws for quick installation provided. Protected by a European industrial design trademark.
