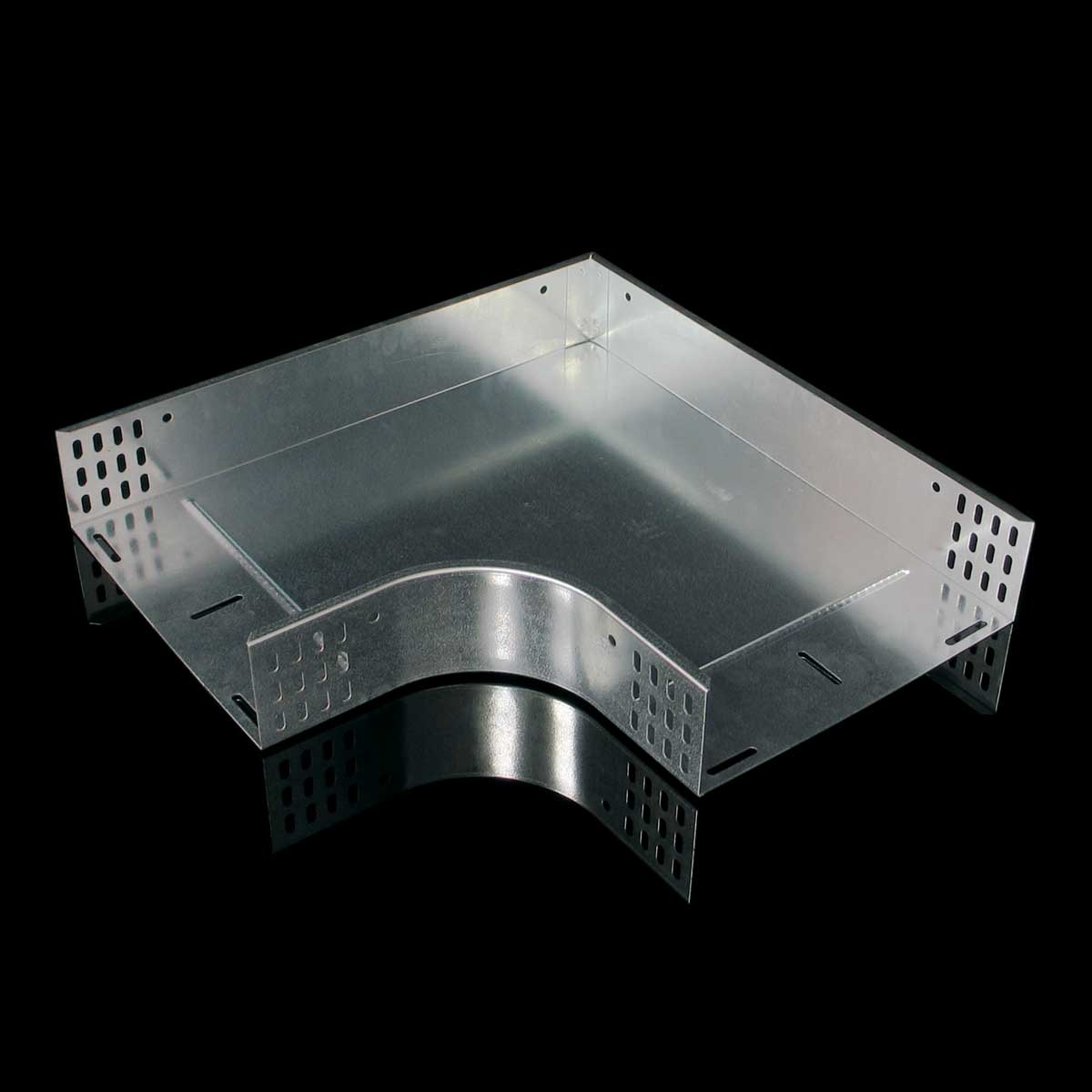

illustrative picture
To download 3D models, please login or create an account and request access.
| EAN code | 8595057658769 |
| Customs code | 73089059 |
| Weight | 2,6042 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 10 |

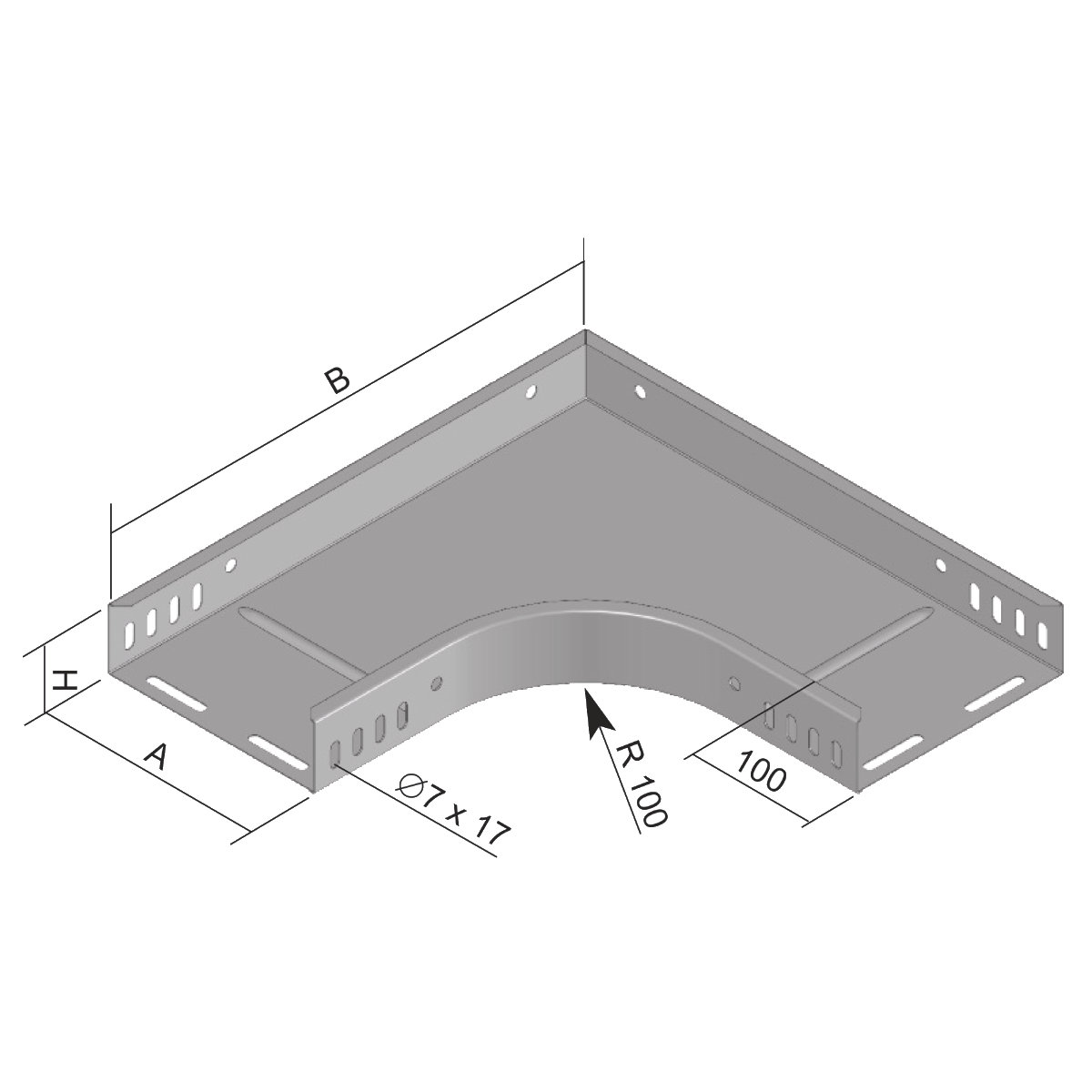

| Dimension A | 303 mm |
| Dimension B | 503 mm |
| Dimension H | 40 mm |
| For width of cable tray | 300 mm |
| For height of cable tray | 35 mm |

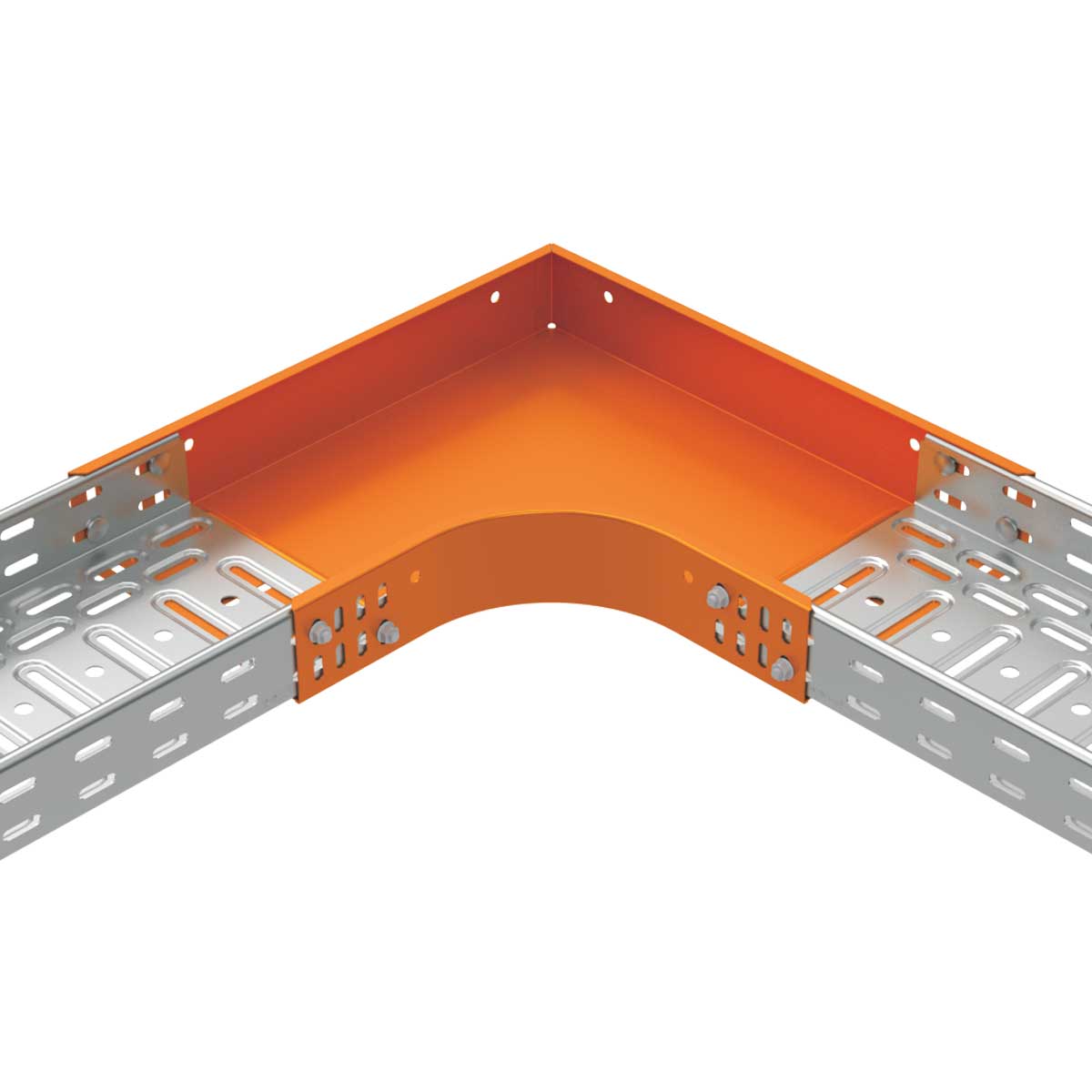

To fix the connection use the bolt NSM 6X10.
O90_EN
