EAN code8595568938138
Customs code73089059
Weight2,2500 kg/pcs
Surface finishMagnelis®
Temperature resistance-50 - 150 °C
Funcionality in fireP90-R, E90, PS90
StandardsČSN EN 61537
Fire resistance standardsČSN 73 0895, DIN 4102-12, STN 92 0205
Thickness of metal sheet1 mm
Quantity of screws for connecting10

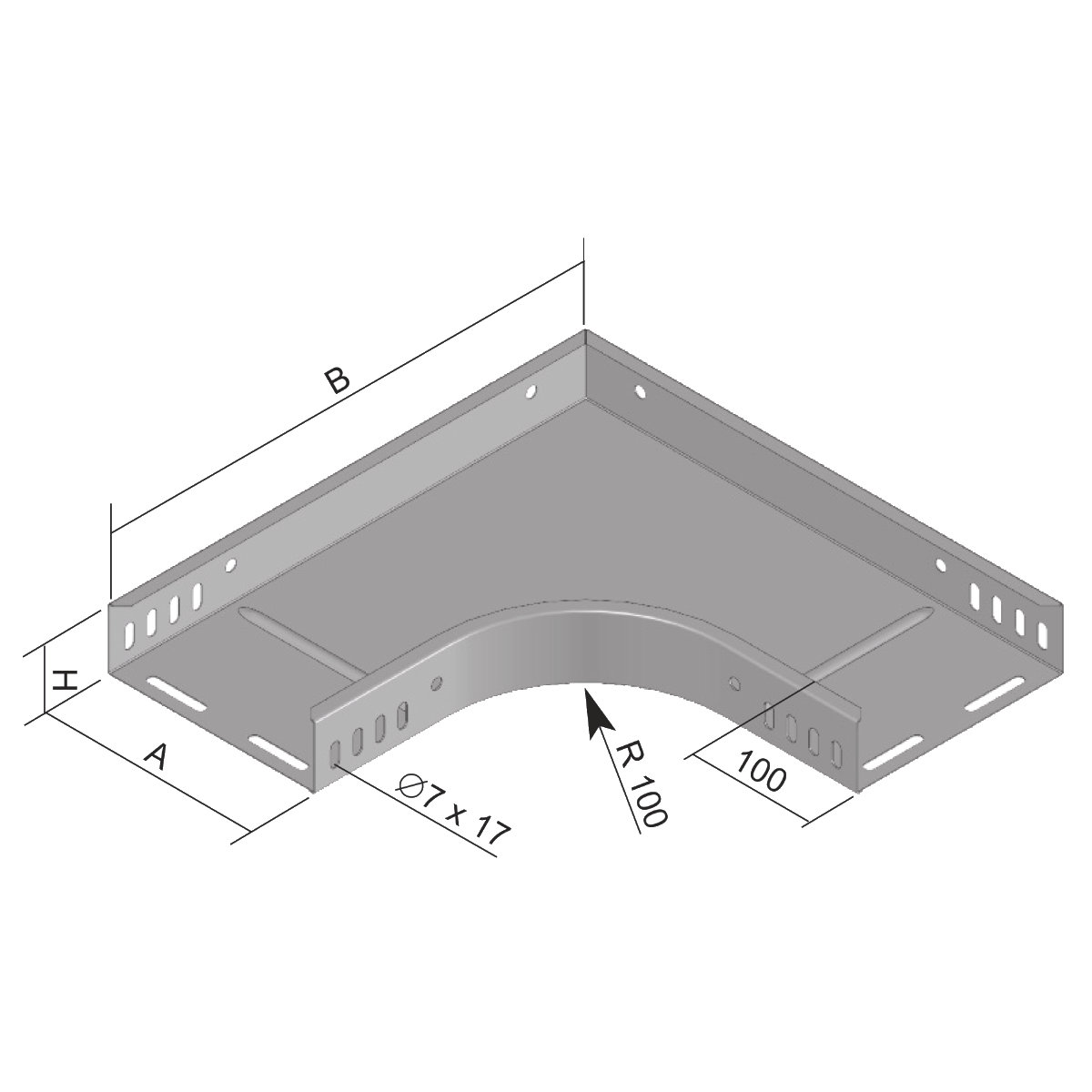

Dimension A303 mm
Dimension B503 mm
Dimension H65 mm
For width of cable tray300 mm
For height of cable tray60 mm

To fix the connection use the bolt NSM 6X10.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
