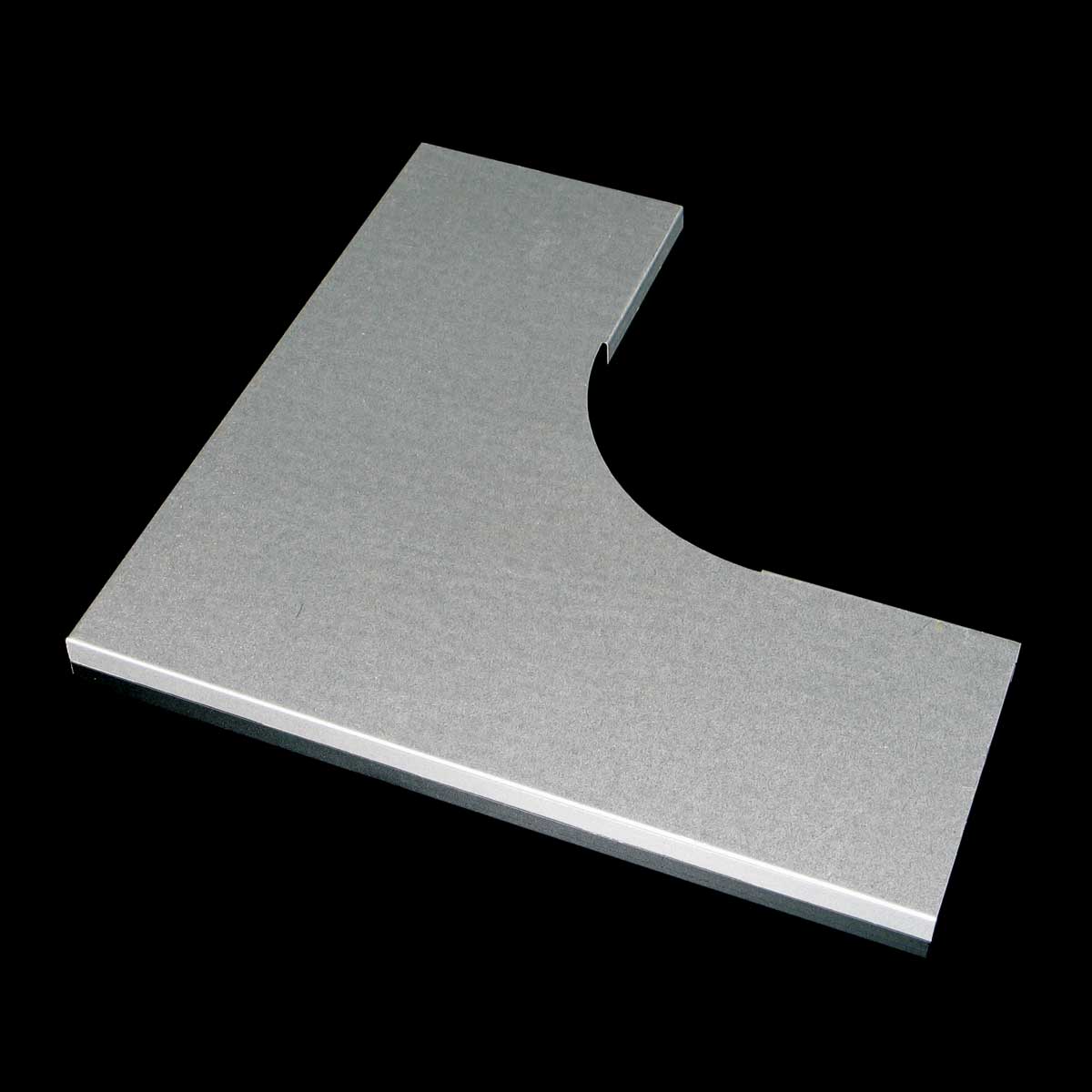

illustrative picture
To download 3D models, please login or create an account and request access.
NIXVO90_EN
| EAN code | 8595057674578 |
| Customs code | 73089059 |
| Weight | 0,8010 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - +150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,6 mm |

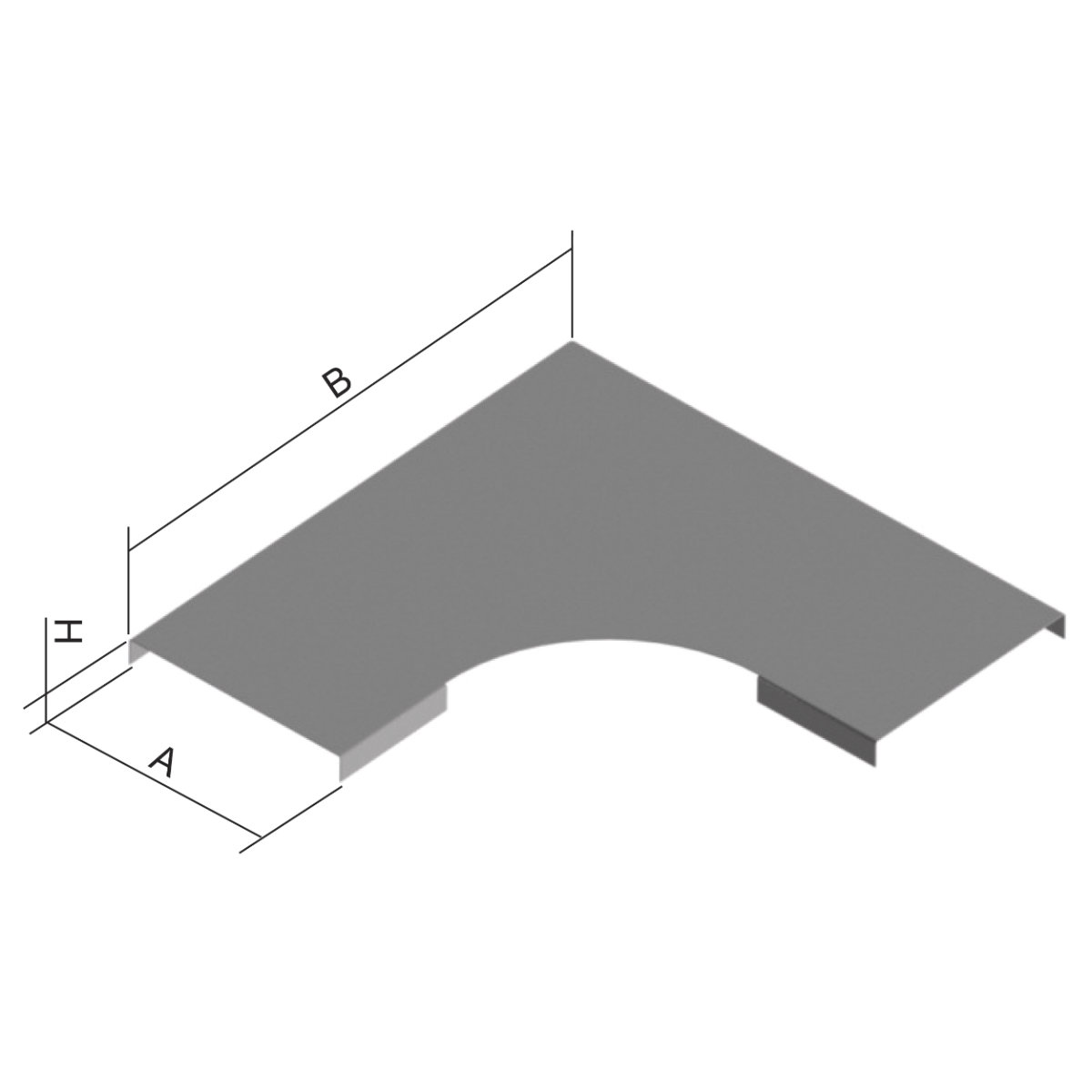

| Dimension A | 254 mm |
| Dimension B | 426 mm |
| Dimension H | 15 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 - 100 mm |
To fix the cover use cover fixtures NIXUV.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
