NIXO90_EN
| EAN code | 8595057671522 |
| Customs code | 73089059 |
| Weight | 1,3000 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - +150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 4 |

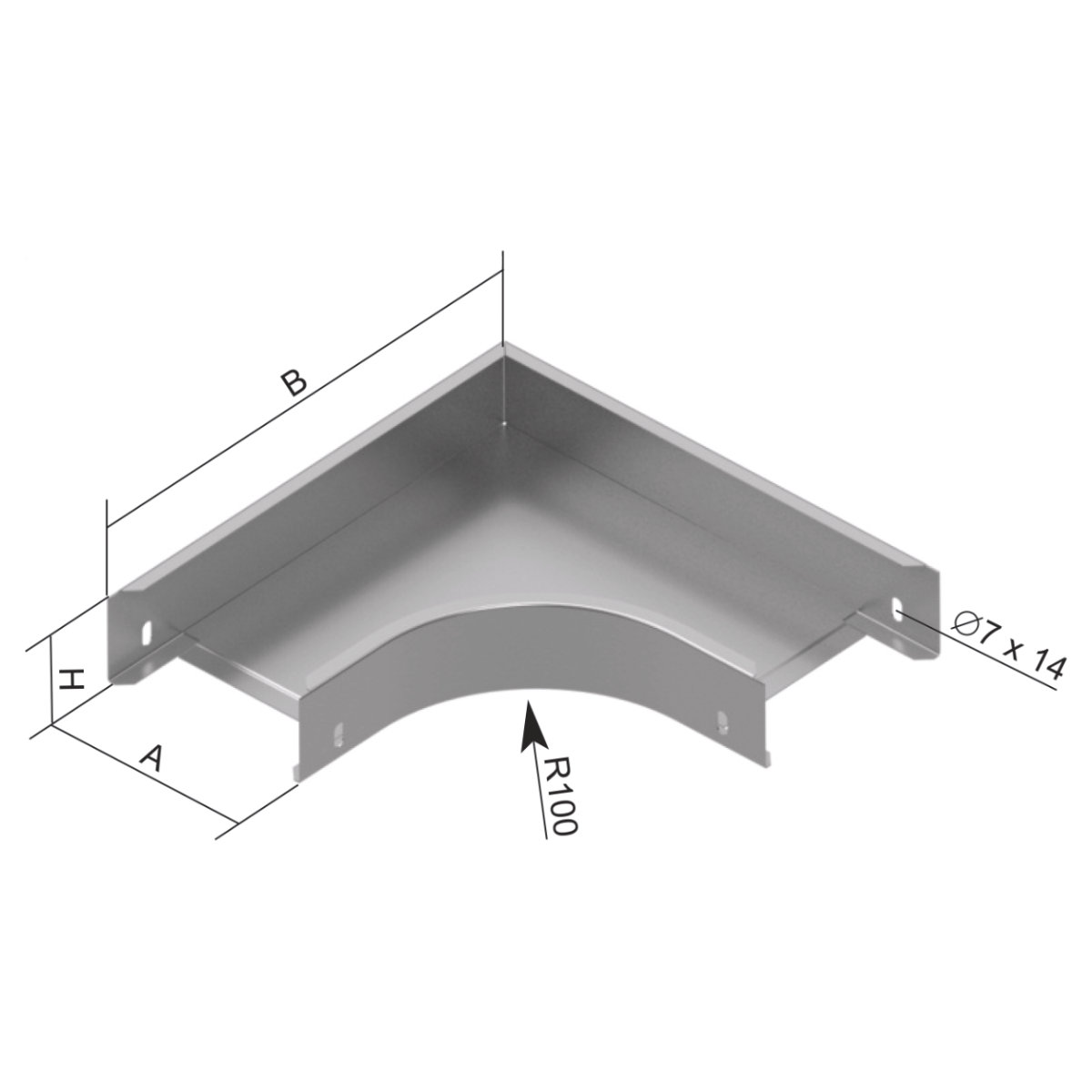

| Dimension A | 253 mm |
| Dimension B | 413 mm |
| Dimension H | 52 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 mm |

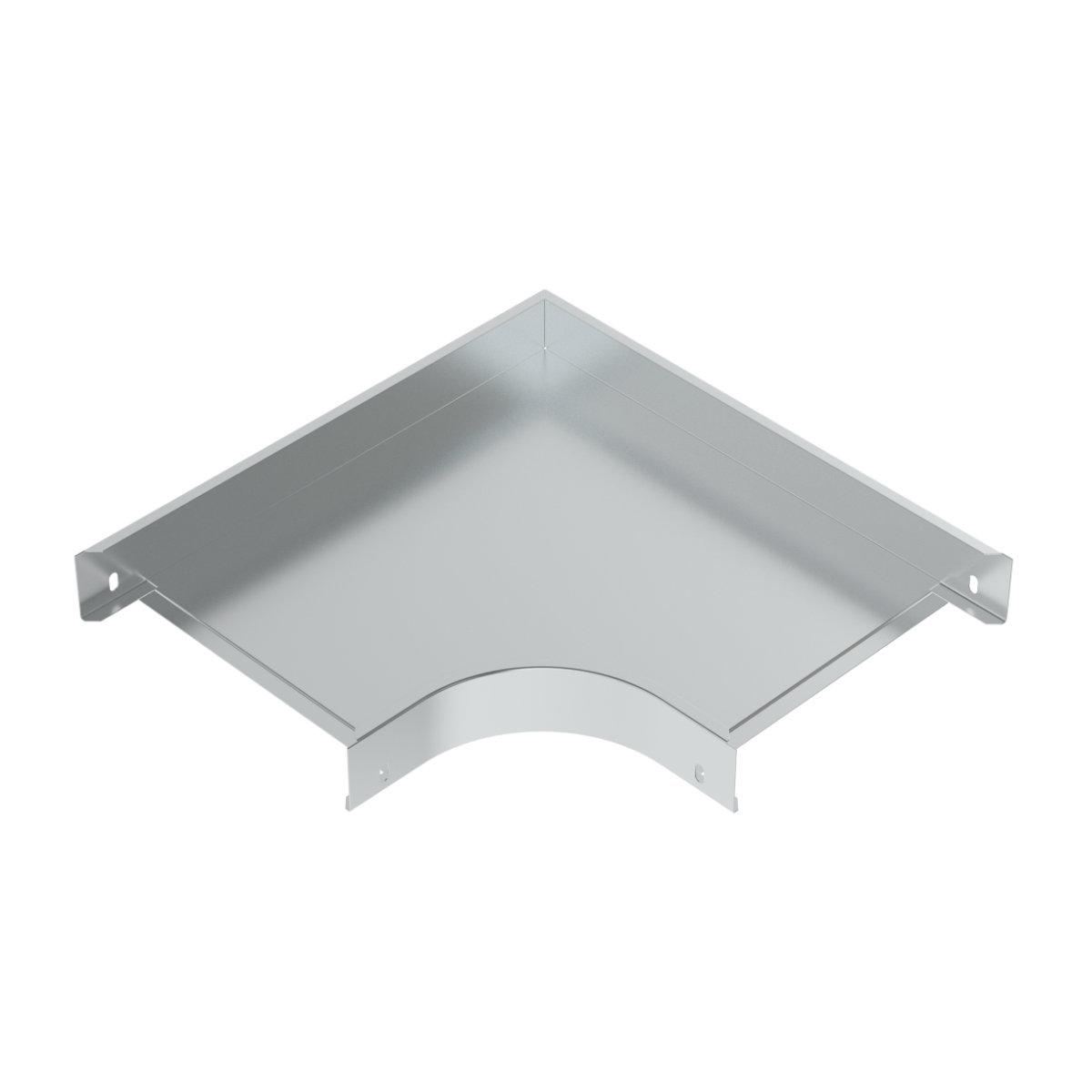

The arc is used to create a 90° branch in a horizontal direction. The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
