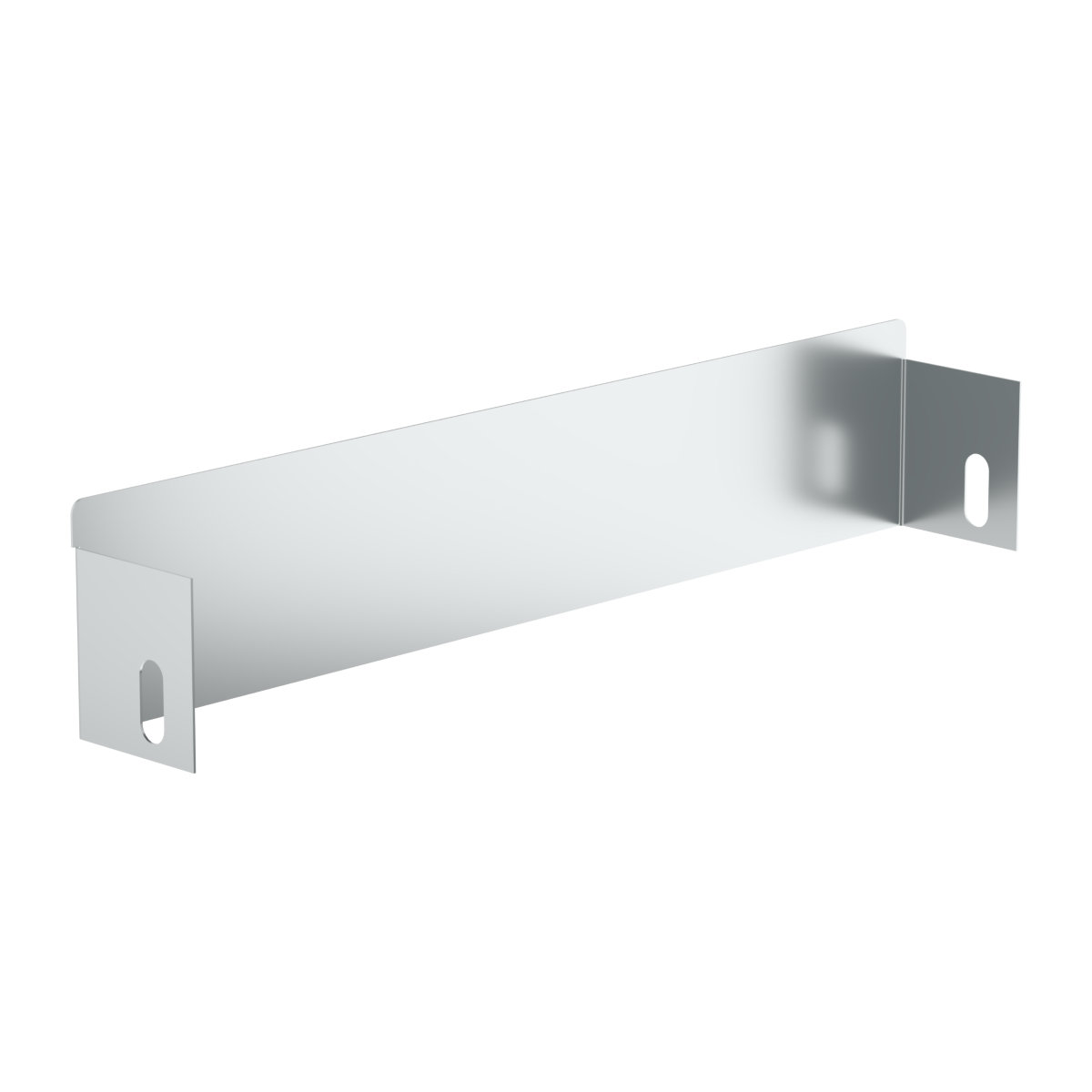

illustrative picture
To download 3D models, please login or create an account and request access.
NIXK_EN
| EAN code | 8595057670006 |
| Customs code | 73269098 |
| Weight | 0,07 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,6 mm |
| Quantity of screws for connecting | 4 |
| Dimension A | 248 mm |
| Dimension H | 50 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 mm |
The joining is performed by using the bolts NIXSM 6X10. The end-piece serves for the ending off a route.
