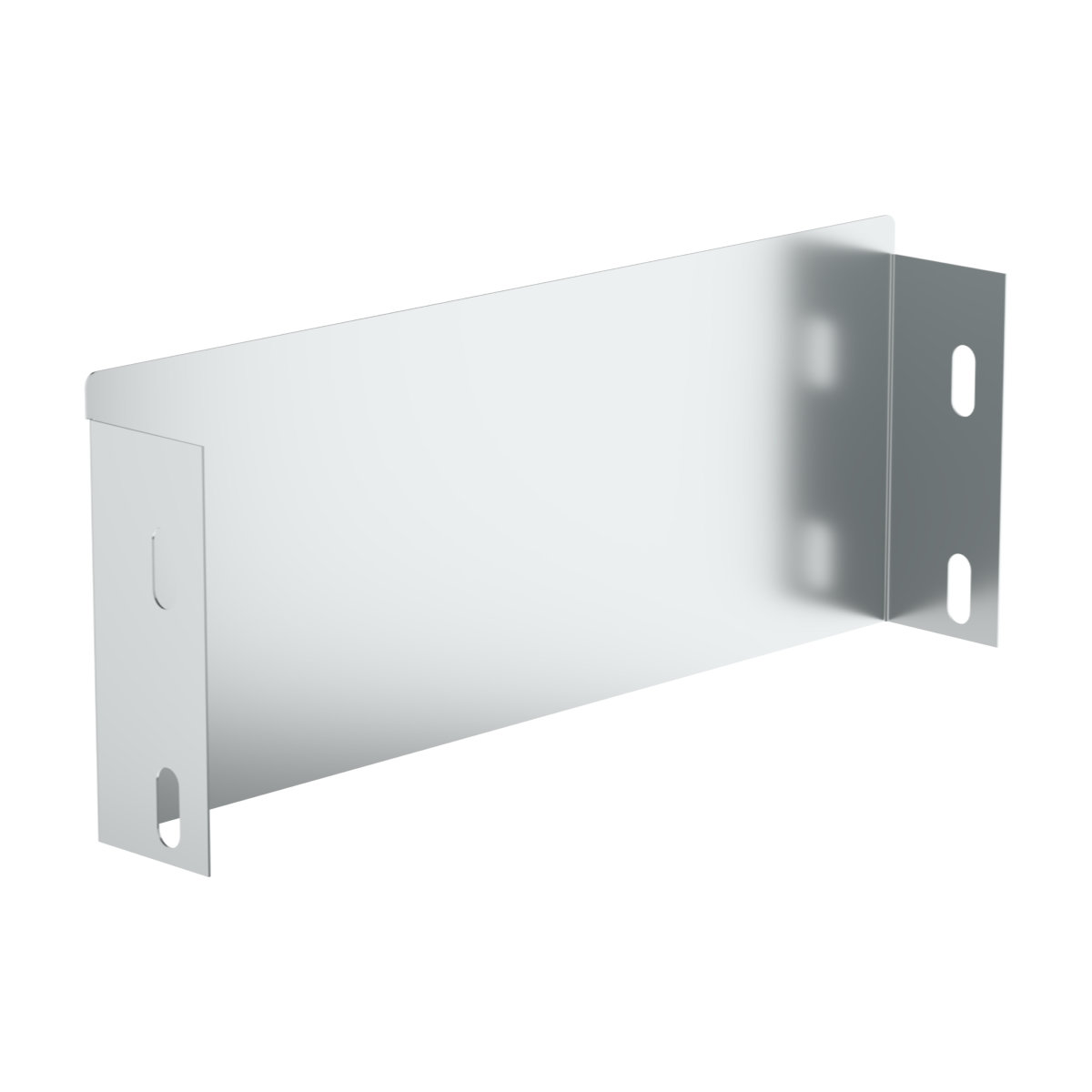

illustrative picture
To download 3D models, please login or create an account and request access.
NIXK_EN
| EAN code | 8595057669963 |
| Customs code | 73269098 |
| Weight | 0,1440 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - +150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,6 mm |
| Quantity of screws for connecting | 4 |
| Dimension A | 248 mm |
| Dimension H | 100 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 100 mm |
The joining is performed by using the bolts NIXSM 6X10. The end-piece serves for the ending off a route.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
