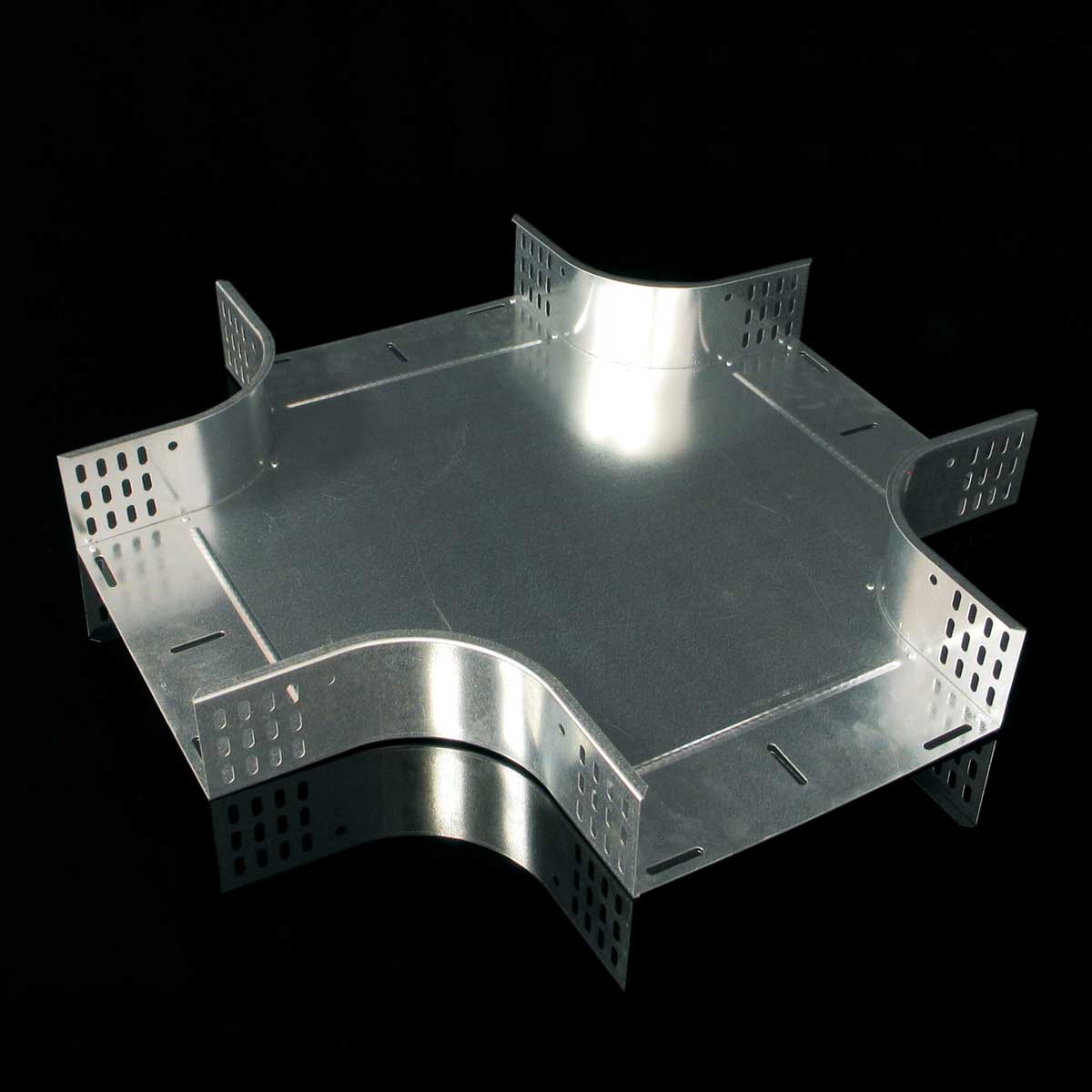

illustrative picture
To download 3D models, please login or create an account and request access.
KR_EN
| EAN code | 8595057662704 |
| Customs code | 73089059 |
| Weight | 1,2377 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 16 |
| Dimension A | 53 mm |
| Dimension B | 453 mm |
| Dimension H | 40 mm |
| For width of cable tray | 50 mm |
| For height of cable tray | 35 mm |
To fix the connection use the bolt NSM 6X10. Use horizontal branch OH or reduction piece SU to make unequal cross.
