EAN code8595057662674
Customs code73089059
Weight6,61 kg/pcs
Surface finishHot Dip Galvanized
Temperature resistance-50 - 150 °C
StandardsČSN EN 61537
Thickness of metal sheet1 mm

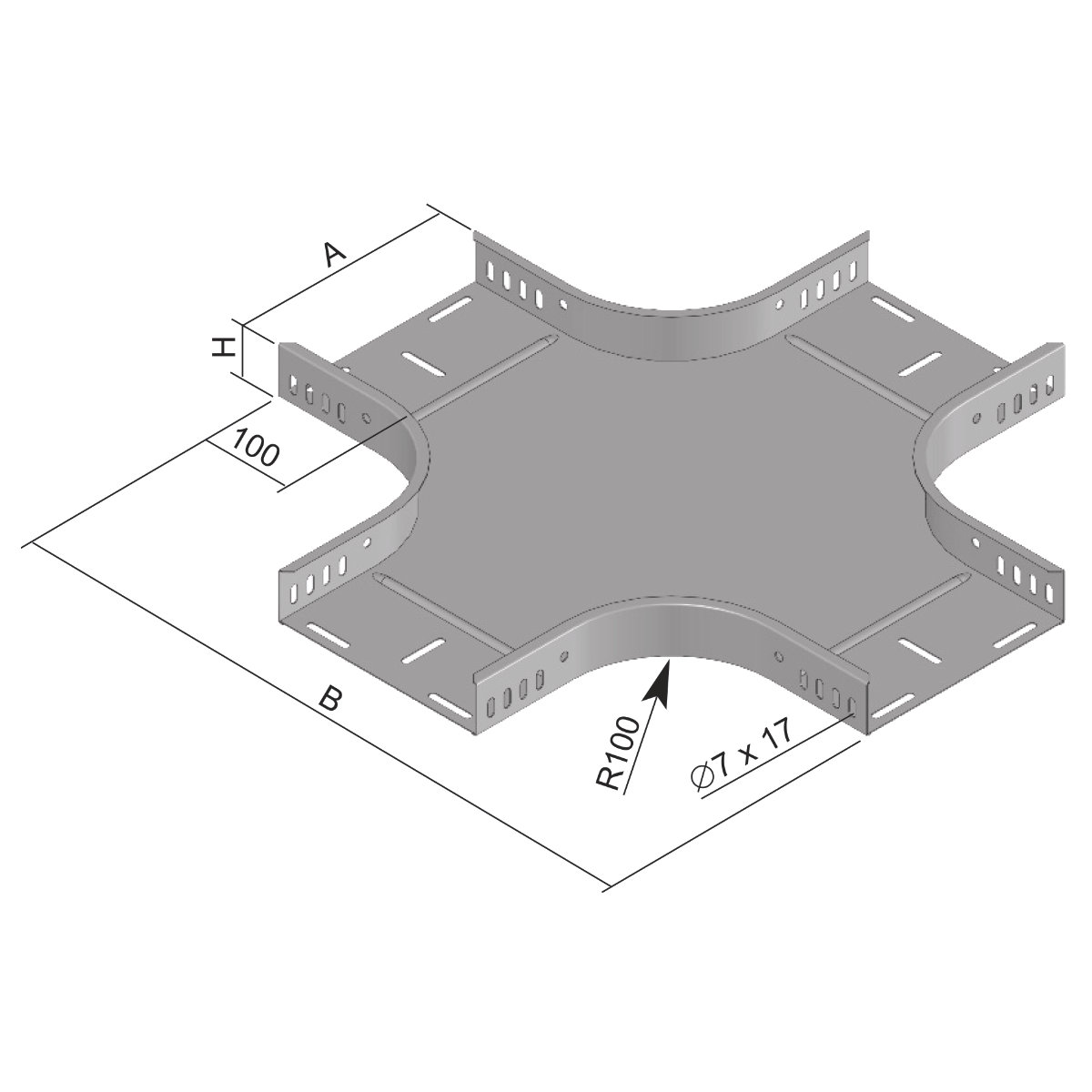

Dimension A403 mm
Dimension B803 mm
Dimension H115 mm
For width of cable tray400 mm
For height of cable tray110 mm

To fix the connection use the bolt NSM 6X10. Use horizontal branch OH or reduction piece SU to make unequal cross.
