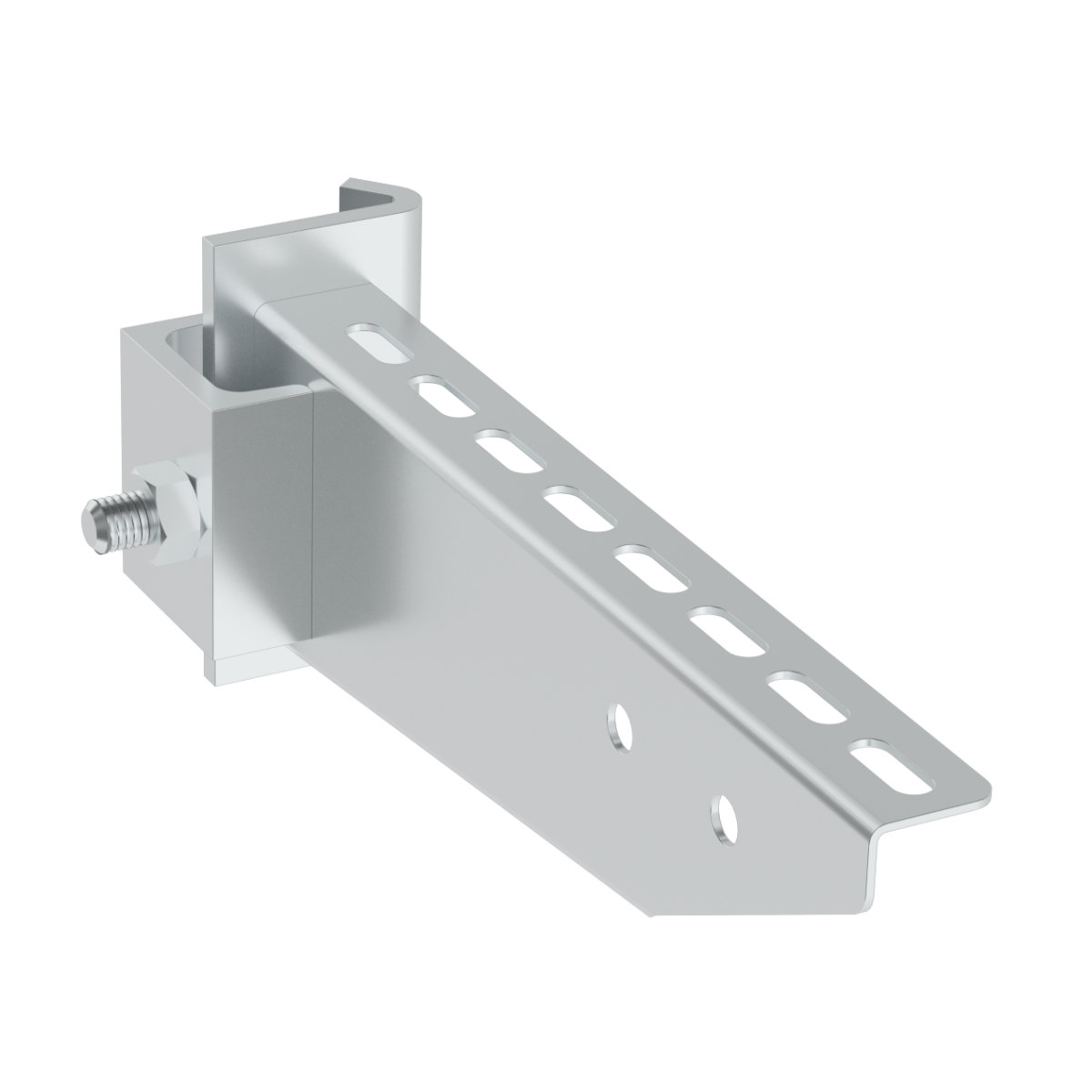

illustrative picture
To download 3D models, please login or create an account and request access.
DRT_EN
| EAN code | 8595057639928 |
| Customs code | 83024190 |
| Weight | 0,51 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Maximum load | 330 kg |
| Dimension A | 220 mm |
| Dimension B | 90 mm |
| For width of cable tray | 200 mm |
| For height of cable tray | 35 - 110 mm |
Set up for installation on the ceiling profile SPT and on Iprofile 80 mm. Tripping steel square, nut and crew S 8X20 are included. Cable tray attaching to the bracket is carried out by bolts NSM 6X10.
