EAN code8595057635302
Customs code83024190
Weight0,39 kg/pcs
Surface finishHot Dip Galvanized
Maximum load320 kg
Dimension A170 mm
Dimension B90 mm
For width of cable tray150 mm
For height of cable tray35 - 110 mm

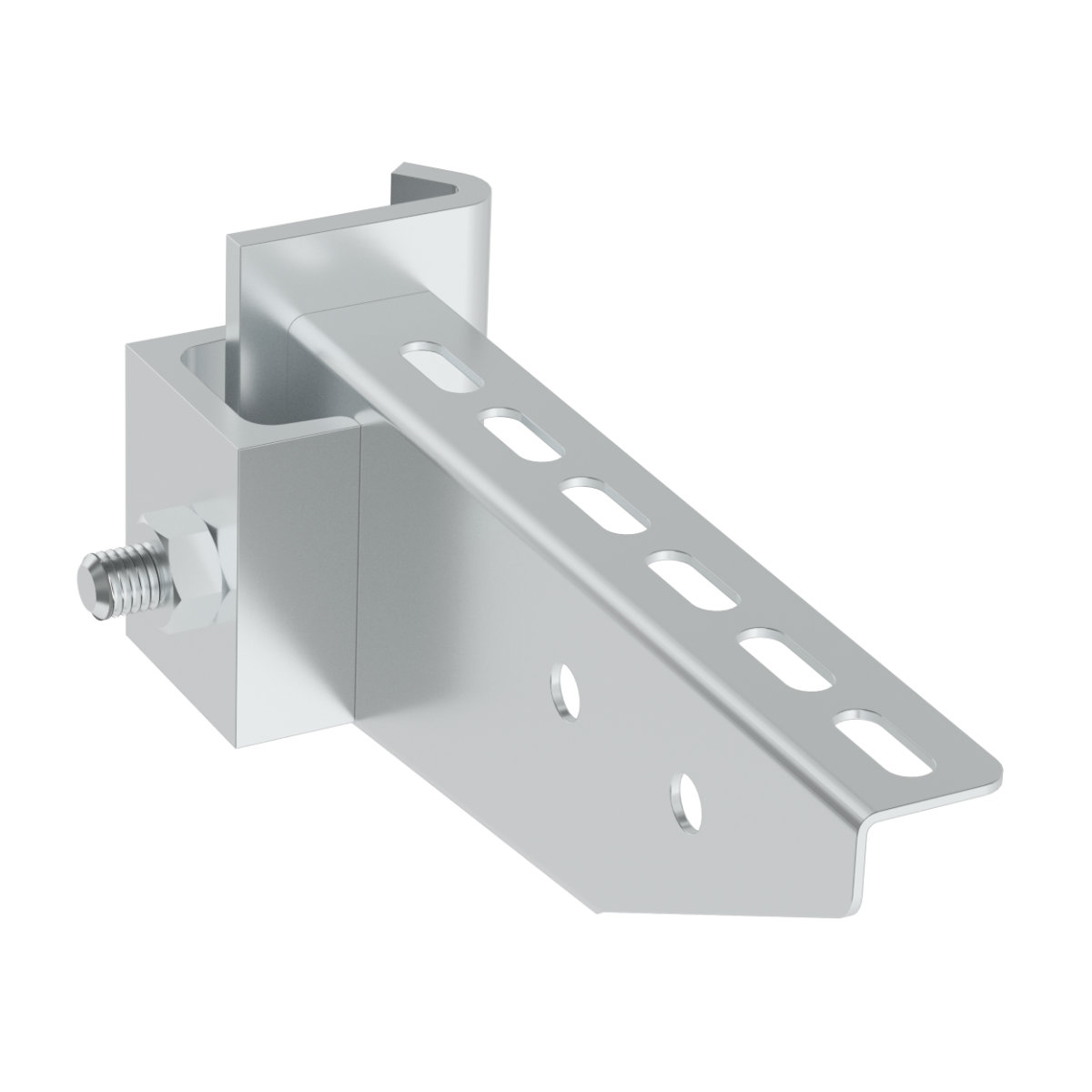

Set up for installation on the ceiling profile SPT and on Iprofile 80 mm. Tripping steel square, nut and crew S 8X20 are included. Cable tray attaching to the bracket is carried out by bolts NSM 6X10.
