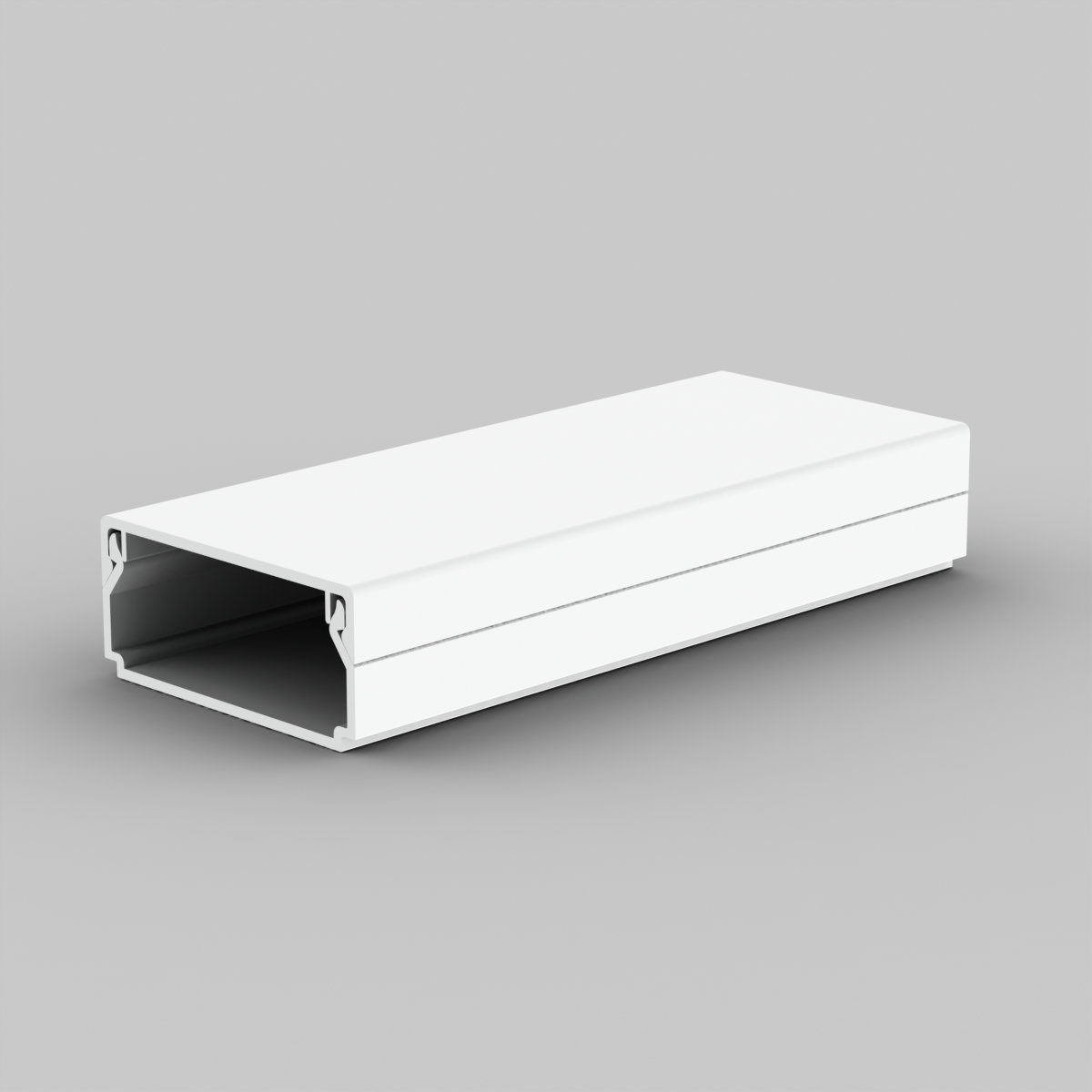

illustrative picture
To download 3D models, please login or create an account and request access.
LHD40X20HF_EN
| EAN code | 8595057656437 |
| Customs code | 39259020 |
| Weight | 0,1920 kg/m |
| Colour | white |
| Material | HF |
| Halogen free material | yes |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -25 - +90 °C |
| Flaming loop test | 850 °C |
| Mechanical protection | IK06 |
| Impact resistance | 1 J |
| Antibacterial | yes |

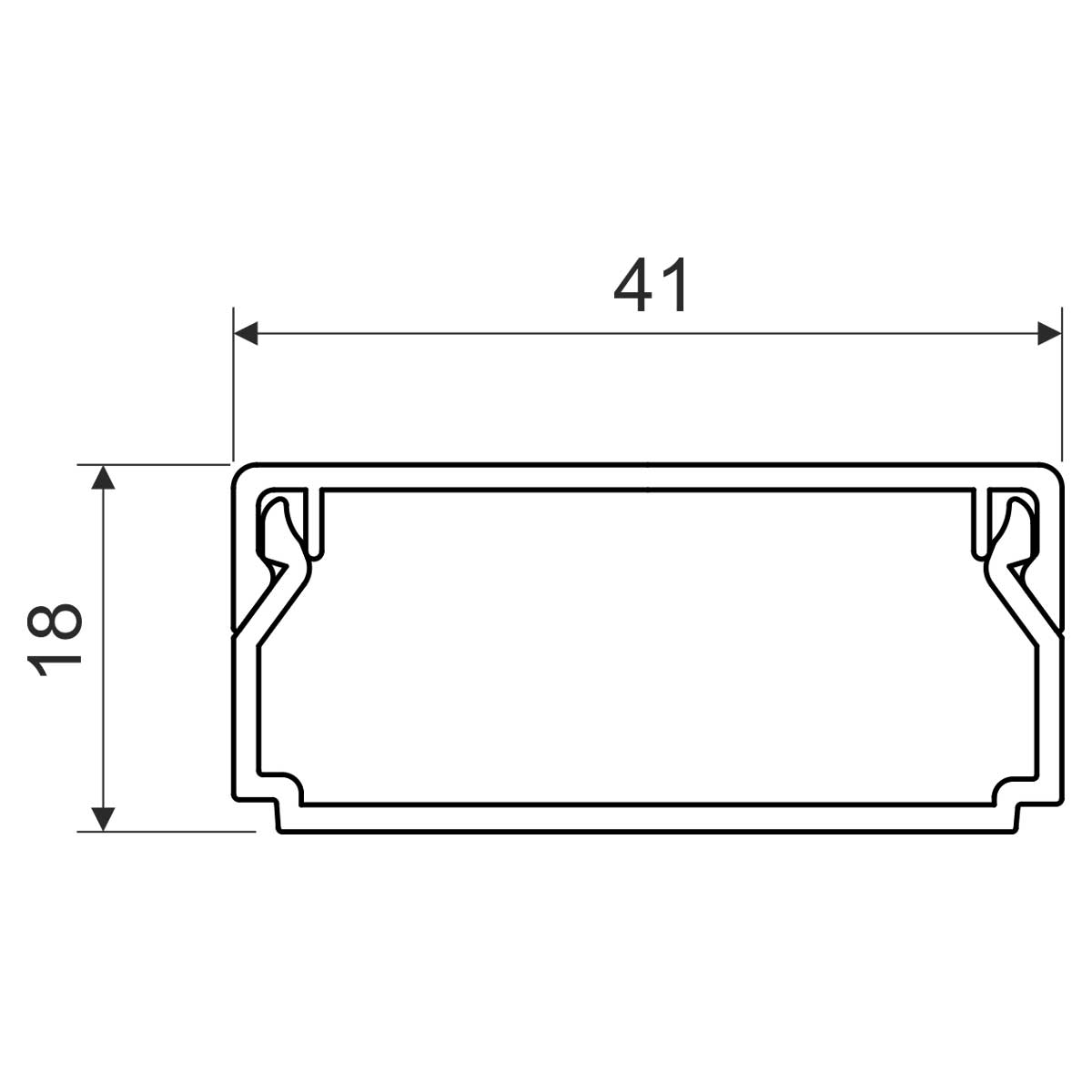

| Width | 41 mm |
| Height | 18 mm |
| Length | 2 m |
| Inside area | 560 mm2 |
| Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Use they are resistant to aggressive and chemical environments. They do not resist UV radiation. | |
| Funcionality in fire | P90-R, E90, PS90 |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 40 |
| Standards | ČSN EN 50 085-1 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Package description | package - cardboard |
| With protective foil | ano |
It does not contain halogen elements, suitable for environments with high concentrations of people. Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation.
Note for system with maintained functionality in fire:
You find more information in the catalogue Cable management systems - Fire resistant systems.
