EAN code | 8595057656659 |
Customs code | 39259020 |
Weight | 0,1370 kg/m |
Colour | birch pink |
Material | PVC |
Leadless material | yes |
Self-extinguishing | 30 s |
Temperature resistance | -5 - 60 °C |
Flaming loop test | 850 °C |
Mechanical protection | IK06 |
Impact resistance | 0,5 J |
Width | 21 mm |
Height | 19 mm |
Length | 2 m |
Inside area | 260 mm2 |
Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
Fire reaction class of underlying material | A1 - F |
Protection types | IP 40 |
Standards | ČSN EN 50 085-1 |
Package description | package - cardboard |

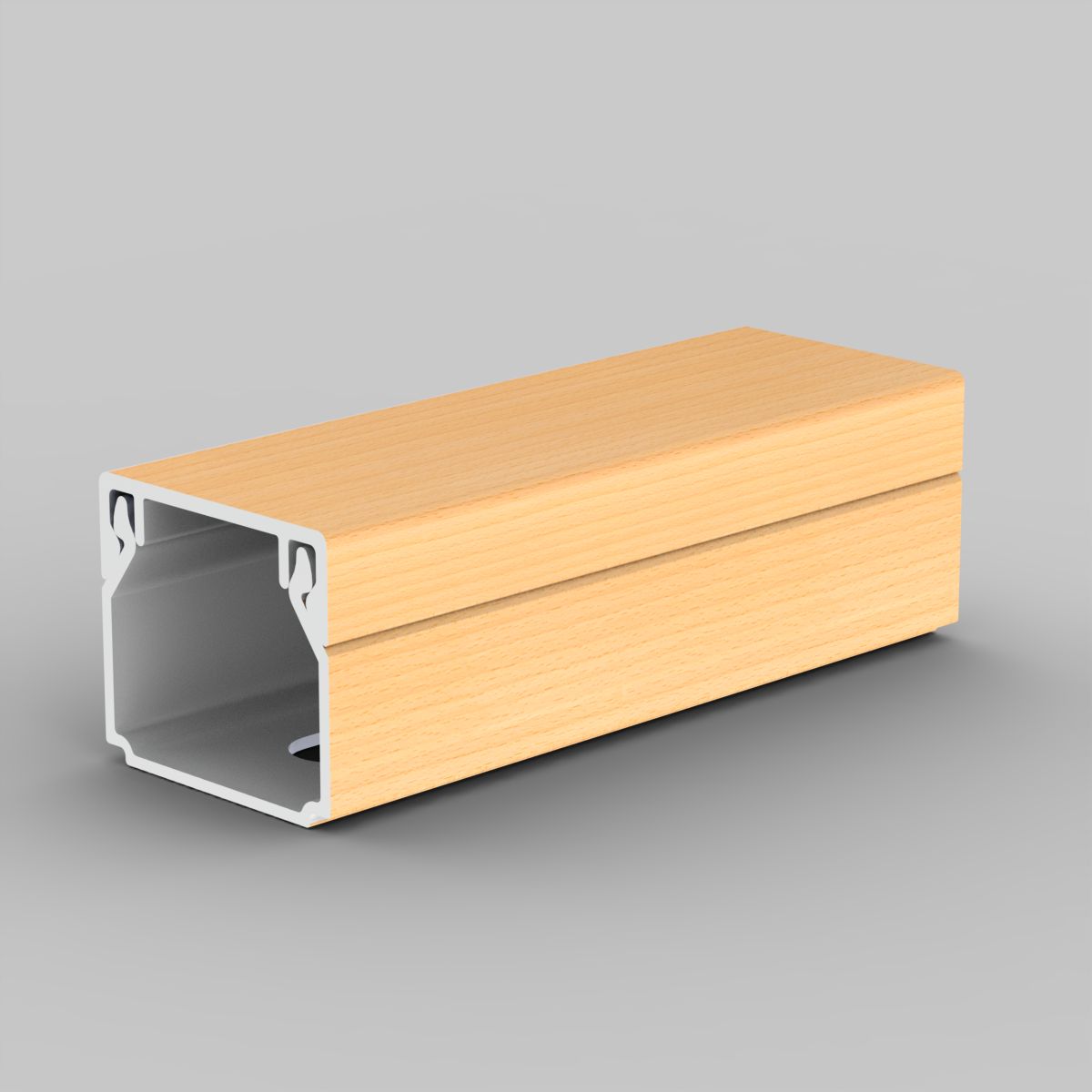

Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. 8824/12 transition branching intended for transition to the LP 80X25 trunking.
