illustrative picture
To download 3D models, please login or create an account and request access.
DV_EN
| EAN code | 8595568939449 |
| Customs code | 73269098 |
| Weight | 0,2930 kg/pcs |
| Surface finish | Magnelis® |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,5 mm |
| Quantity of screws for connecting | 6 |

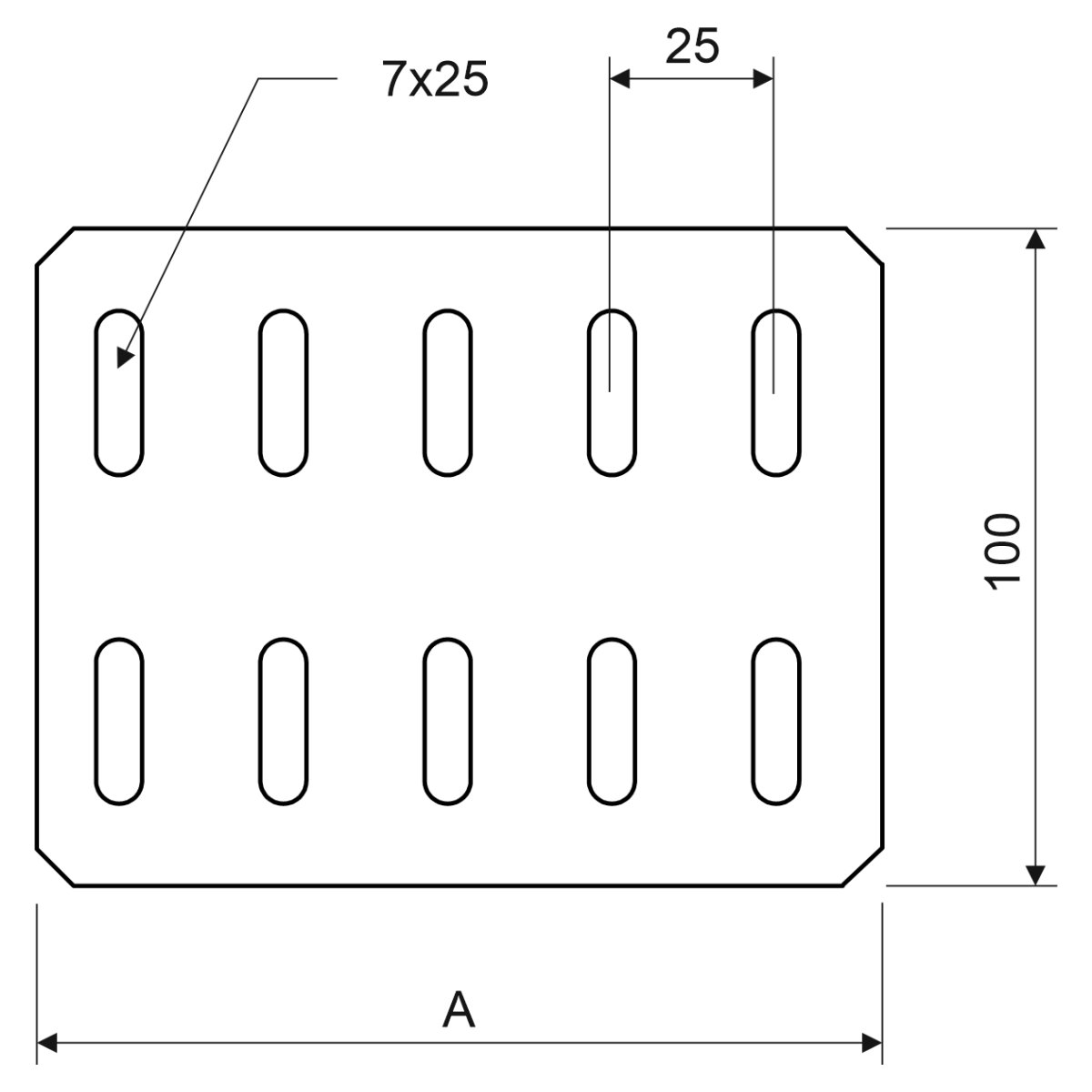

| Dimension A | 275 mm |
| For width of cable tray | 300 mm |

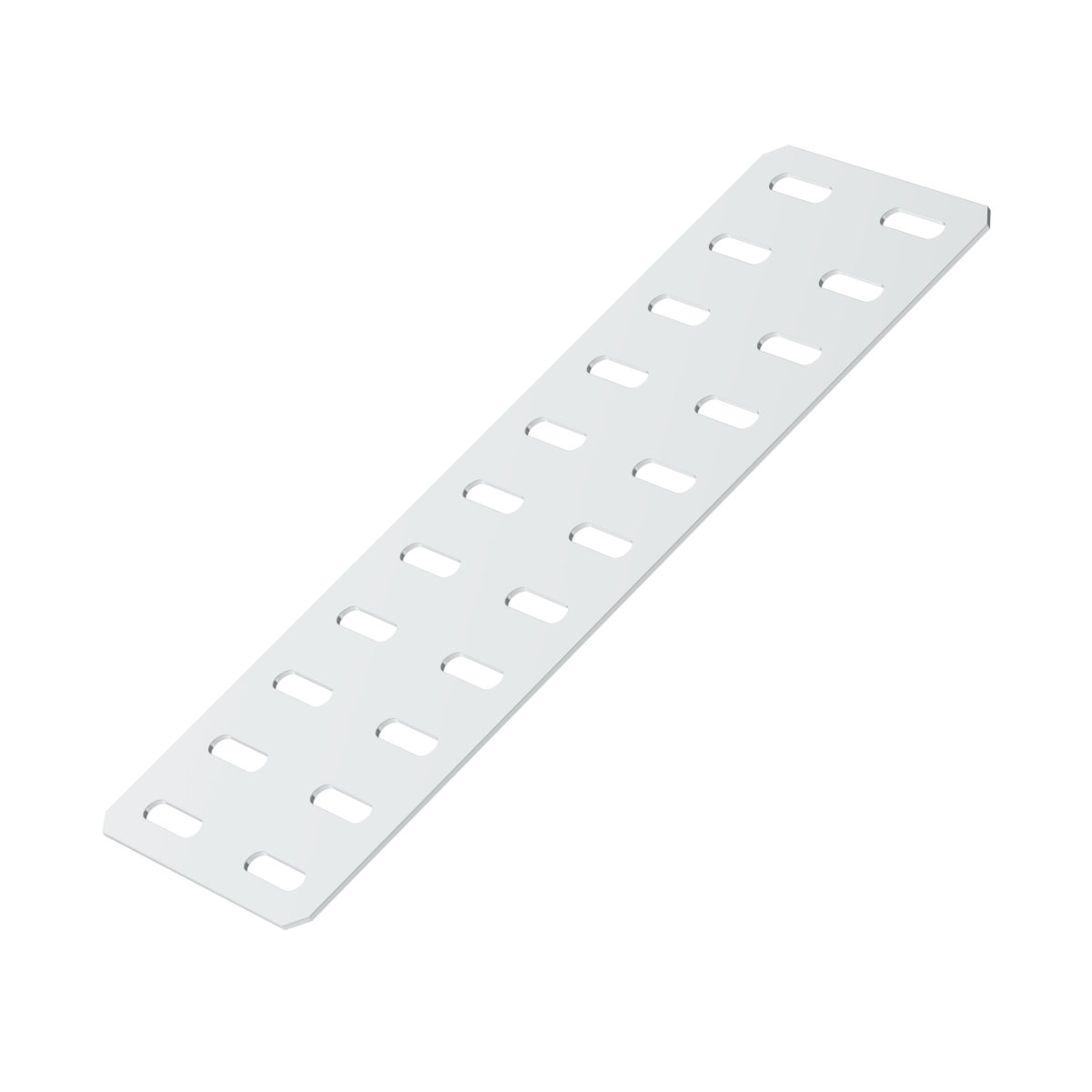

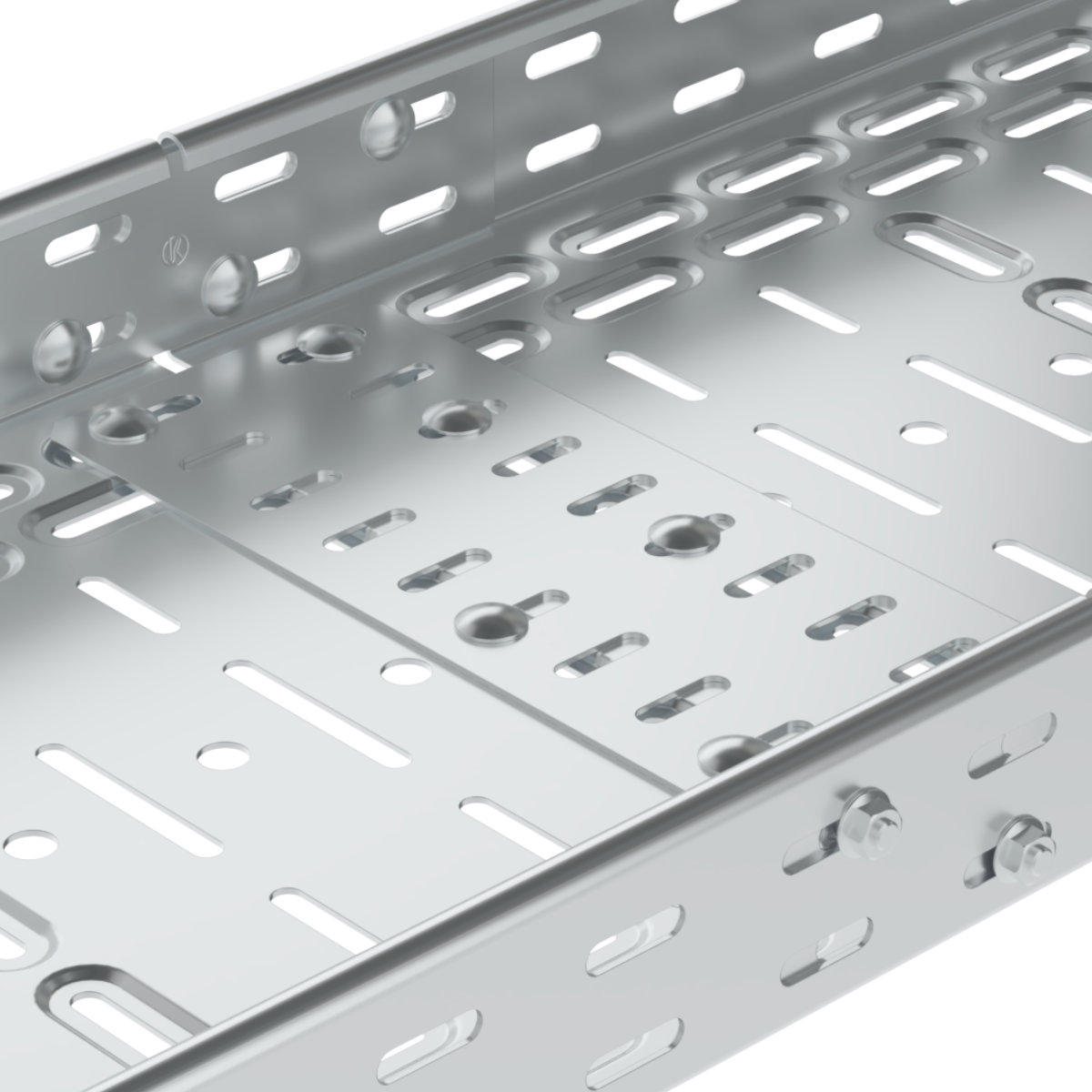

Is used for reinforcing the tray connections without integrated coupling. It is fastened by the bolts NSM 6X10 to the tray bottom.
