EAN code8595568939418
Customs code73269098
Weight0,0786 kg/pcs
Surface finishMagnelis®
Temperature resistance-50 - 150 °C
Funcionality in fireP90-R, E90, PS90
StandardsČSN EN 61537
Fire resistance standardsČSN 73 0895, DIN 4102-12, STN 92 0205
Thickness of metal sheet1,5 mm
Quantity of screws for connecting4
Dimension H75 mm
For width of cable tray100 mm

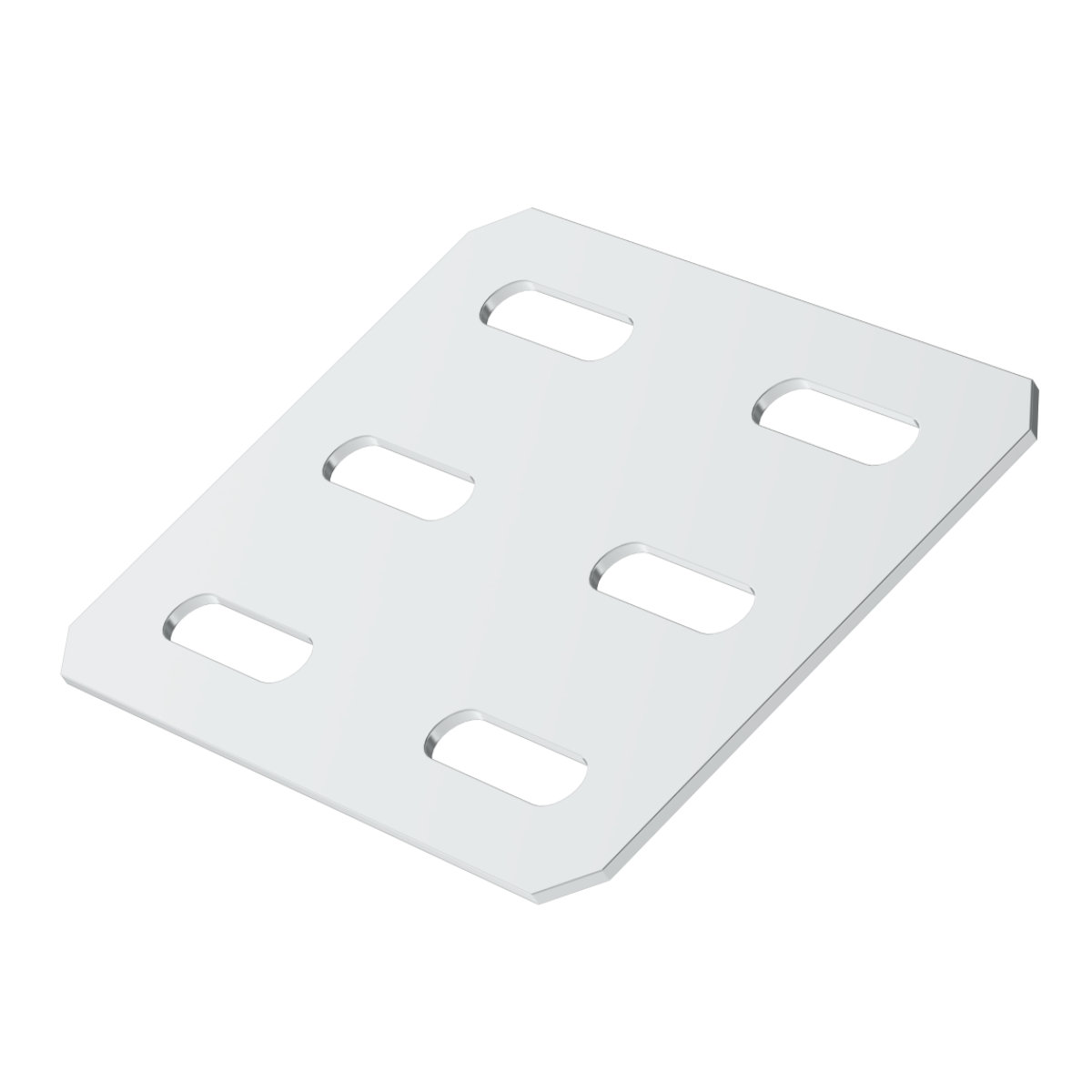

Is used for reinforcing the tray connections without integrated coupling. It is fastened by the bolts NSM 6X10 to the tray bottom.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
