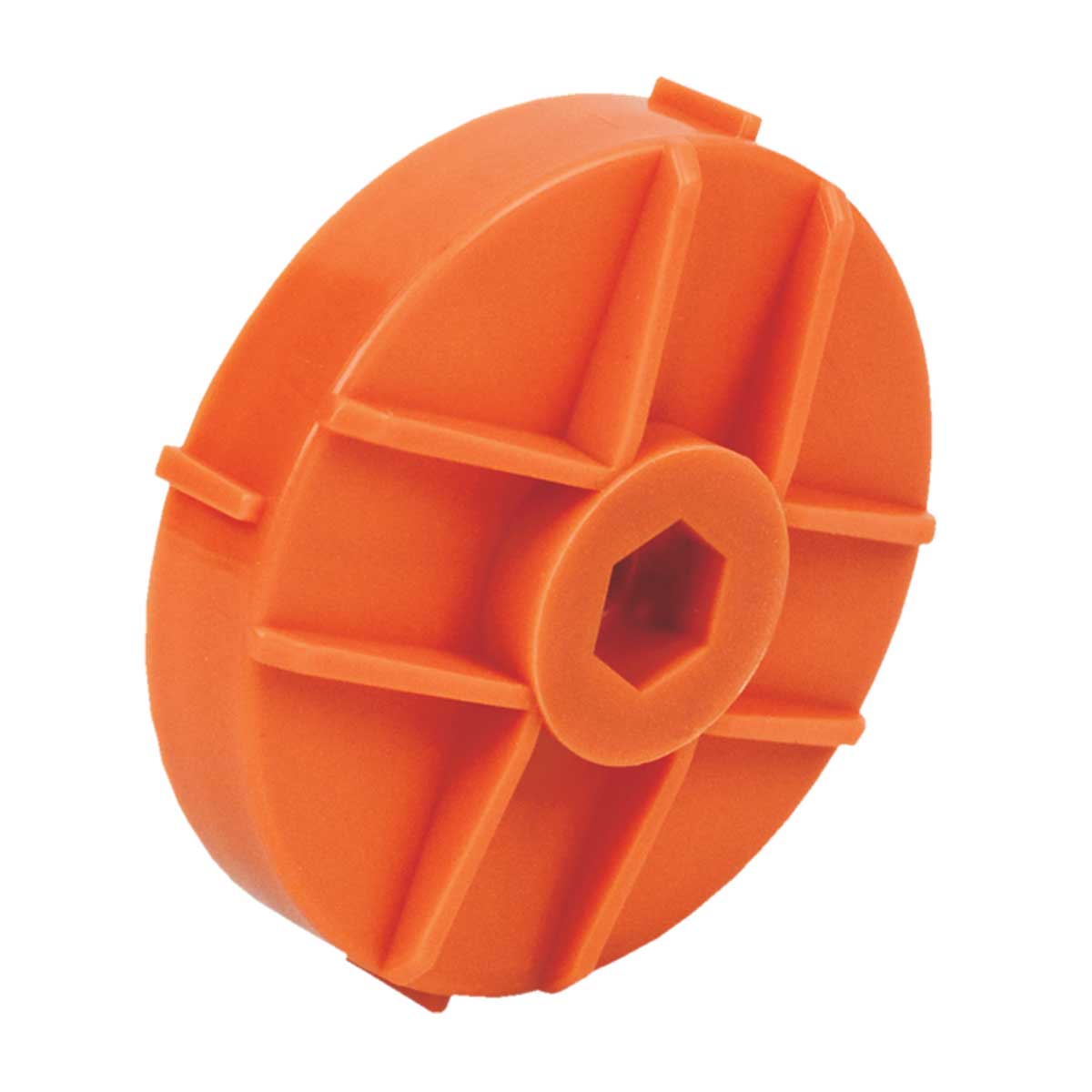

illustrative picture
To download 3D models, please login or create an account and request access.
KBS3_EN
| EAN code | 8595057608146 |
| Customs code | 39259080 |
| Weight | 0,02 kg/pcs |
| Colour | orange |
| Material | PA |
| Halogen free material | yes |
| Leadless material | yes |
| Rated voltage | <= 400 V |
| Temperature resistance | -5 - 60 °C |
| Short term temperature resistance | 90 °C |
| Flaming loop test | 650 °C |

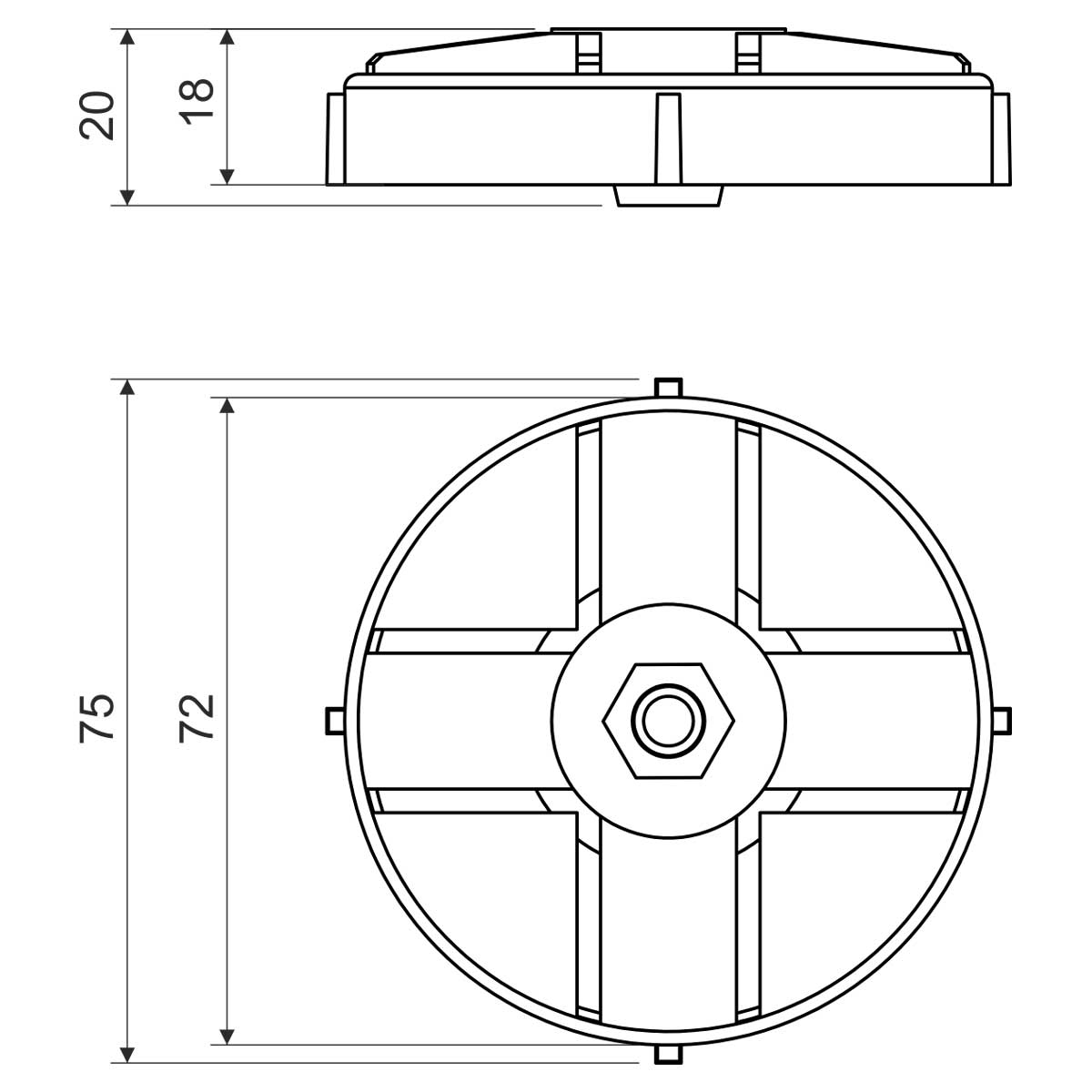

| Diameter | 75 mm |
| Depth | 18 mm |
| Fire reaction class | A1 |
| Standards | ČSN EN 60 670-1 |
| Package description | packed in shrink foil |
The bottom is suitable for covering the bodies of boxes KBT-1 and KBT-2. The design of the bottom allows the insertion of KBM nut for screwing the threaded hook eye. The nut must be inserted before pouring concrete over the assembly!
