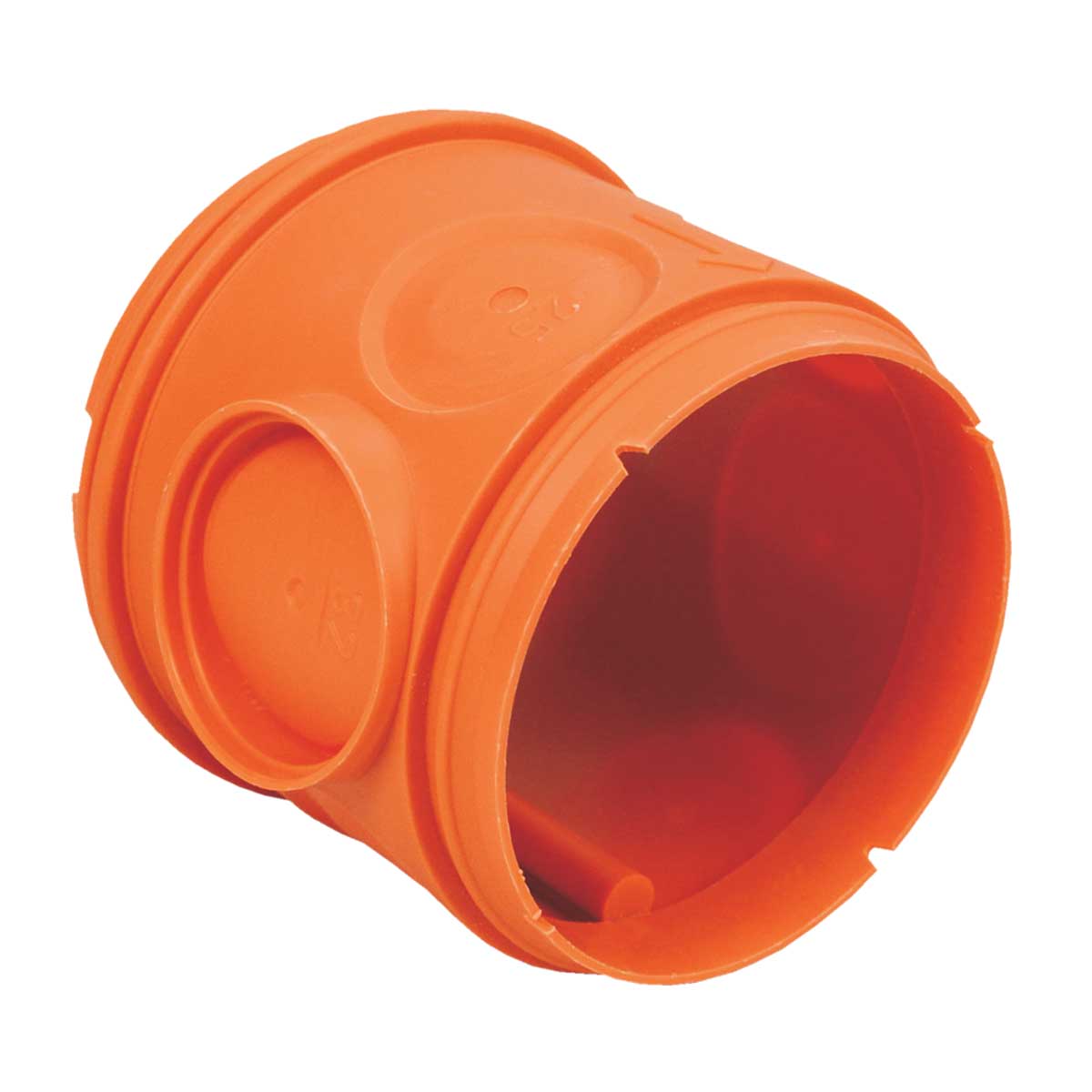

illustrative picture
Základní použití na rozteč 80 nebo 88 mm
Příklad montáže krabice na rozteč 80 mm
Montáž krabice na rozteč 71 mm
Příklad použití lustrháku na horizontální bednění
Příklad použití víčka KBV-3
To download 3D models, please login or create an account and request access.
EAN code8595057632455
Customs code39259080
Weight0,0440 kg/pcs
Colourorange
MaterialPP
Halogen free materialyes
Leadless materialyes
Rated voltage<= 400 V
Temperature resistance-5 - 60 °C
Short term temperature resistance90 °C
Flaming loop test650 °C

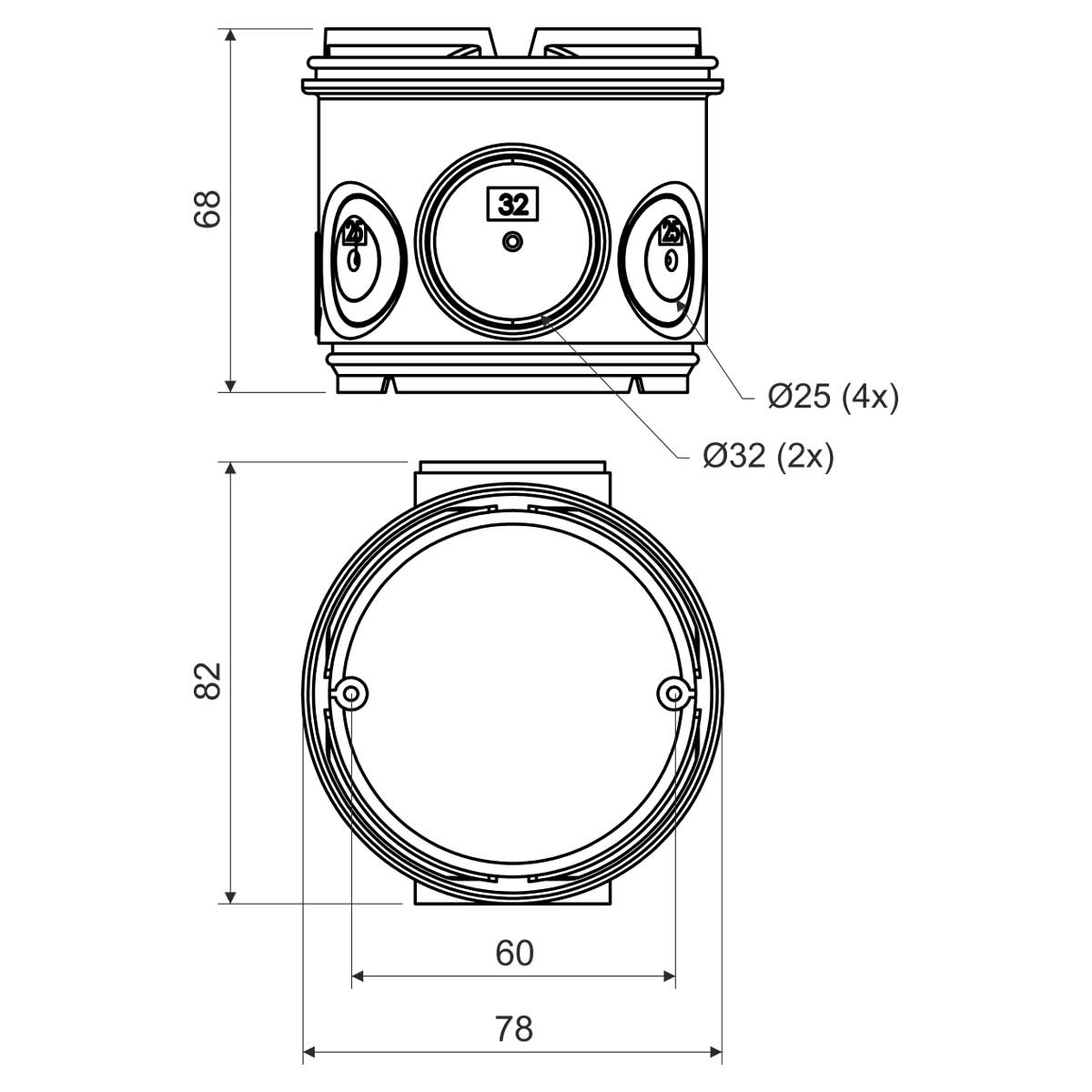

Diameter78 mm
Depth68 mm
Fire reaction class of underlying materialA1
Allows to install double-socketyes
StandardsČSN EN 60 670-1
Package descriptionpacked in shrink foil

The body of the box is provided with a fixture for connection to the lid KBV and bottom KBS. The perimeter of the box body contains pre-marked holes to drill inlets for pipes of EN 25 and 32, inlets can easily be made in the desired locations using a drill and the respective drilling blade For devices with greater mounting depth. The box can be fitted with terminal plate S-66, we recommend its mounting to the box body before assembly. For the double-socket the KBV-1 lid is necessary.
