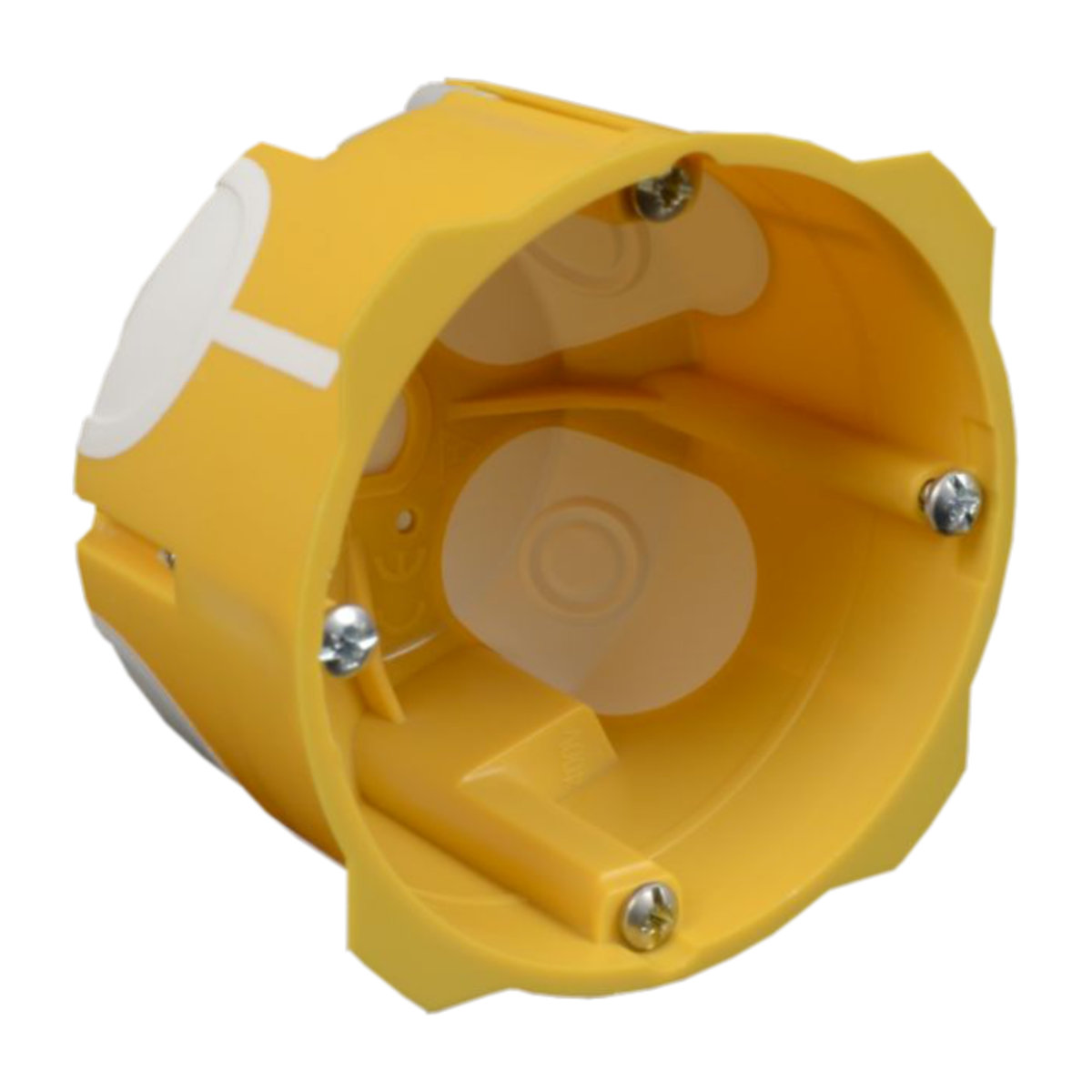

illustrative picture
To download 3D models, please login or create an account and request access.
EAN code8595568925299
Customs code39259080
Weight0,02 kg/pcs
MaterialPVC
Leadless materialyes
Soundproofingyes
Self-extinguishing30 s
Rated voltage<= 400 V
Rated current<= 16 A
Temperature resistance-5 - 60 °C
Flaming loop test850 °C

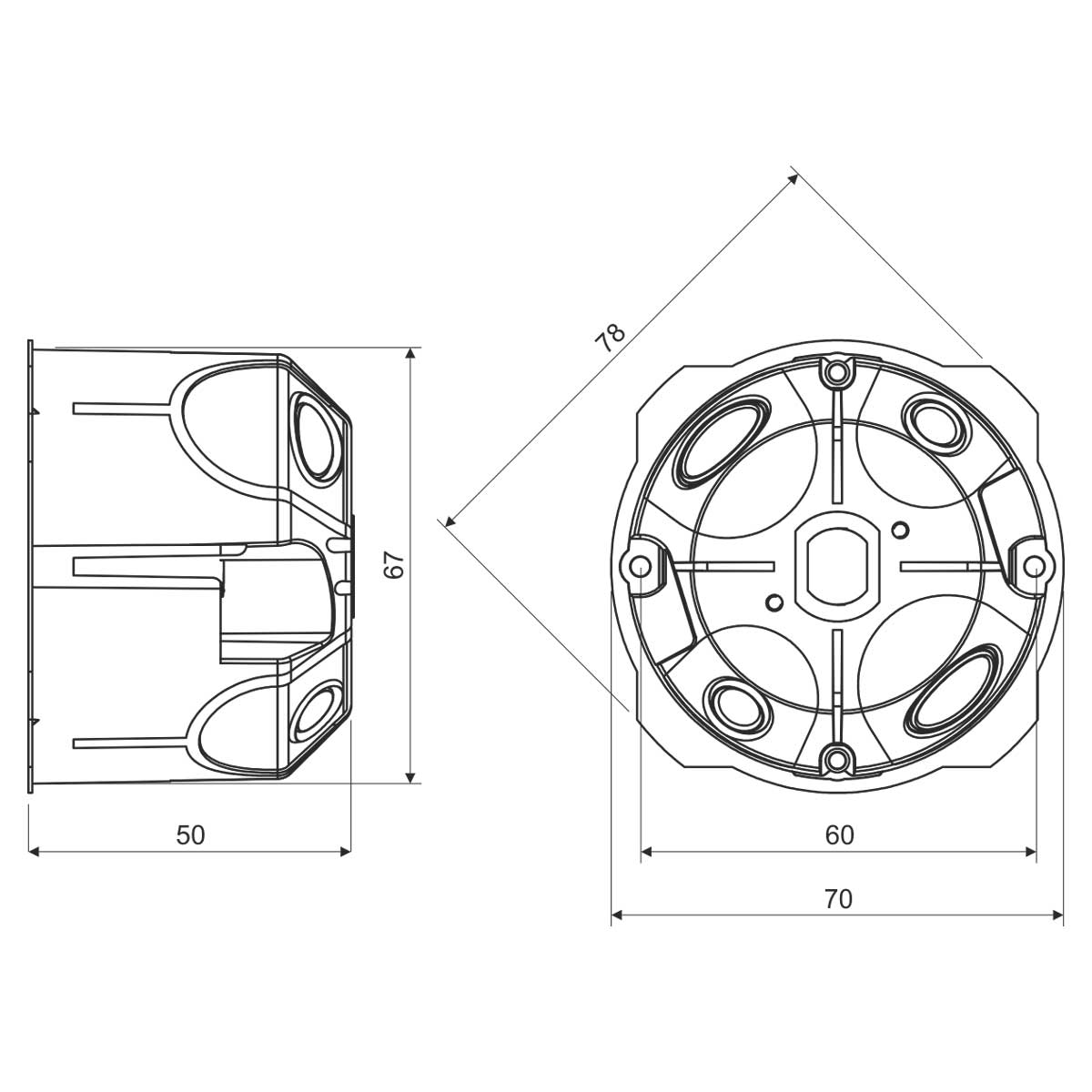

Width70 mm
Height68 mm
Depth50 mm
Milled (drilled) hole diameter68 mm
Manufactures´s recommendations
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Fire reaction class of underlying materialA1 - F
Protection typesIP 30
StandardsČSN EN 60 670-1
Package description
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

Inlet openings made of flexible material. The cable or tube installation is performed by extracting the pre-pressed inlet to the flexible membranes and then inserting the required item into the opening. Installation box in the hole is made by tightening mounting screws. Air proofed even with inserted cable or pipe. Suitable for low energy and passive houses. The fixing screws as well as the instrument screws are double-threaded for quick installation; the box has plastic flanges. When mounting, it is not necessary to countersink the plasterboard edge. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection.
