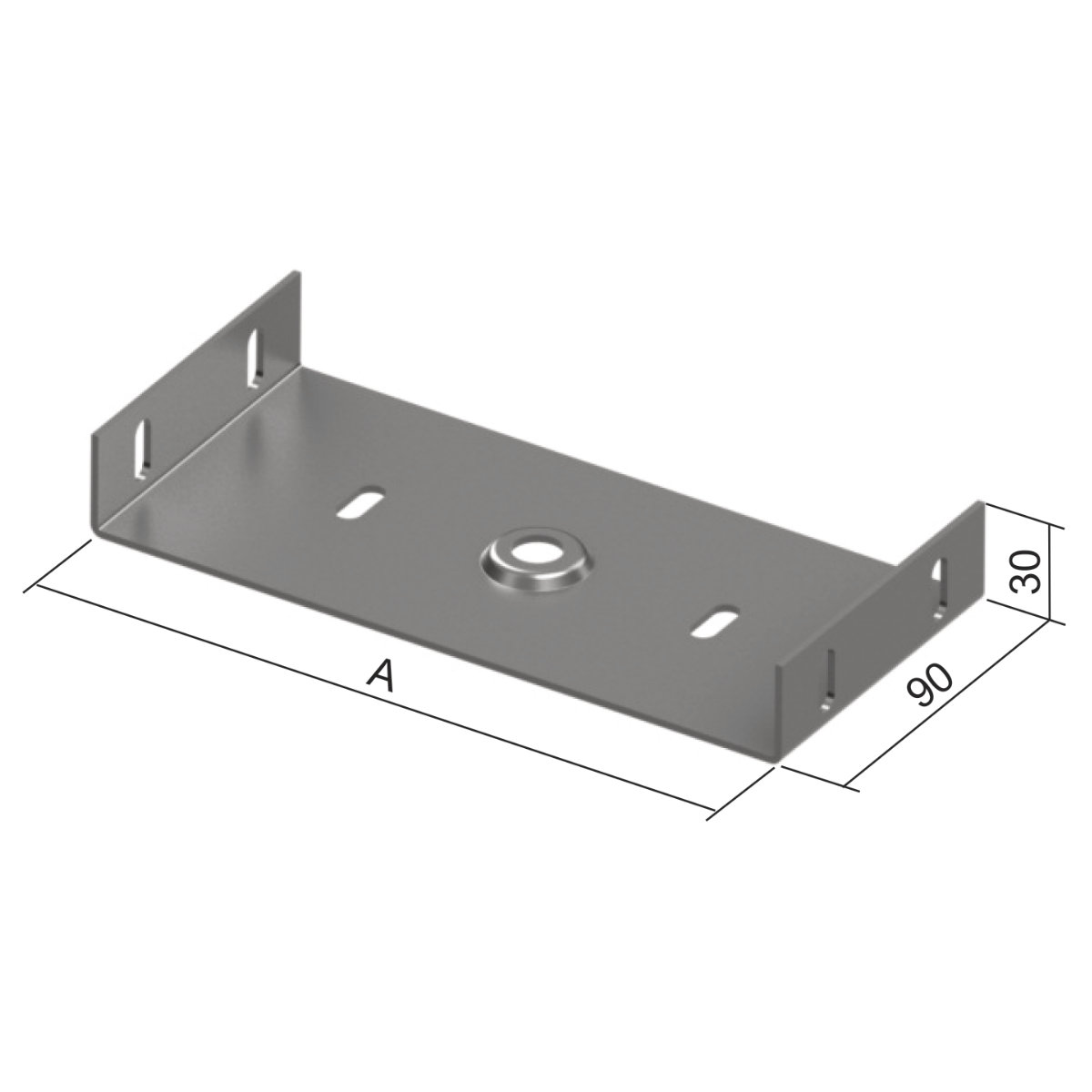

illustrative picture
To download 3D models, please login or create an account and request access.
ZVNI_EN
| EAN code | 8595568925329 |
| Customs code | 73269098 |
| Weight | 0,21 kg/pcs |
| Surface finish | pozinkováno Sendzimirovou metodou |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 2 mm |
| Quantity of screws for connecting | 4 |
| Maximum load | 90 kg |
| Dimension A | 96 mm |
| For width of cable tray | 100 mm |
| For height of cable tray | 35 - 60 mm |
It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The inner hinge is inserted into the tray before connecting it to another tray.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
