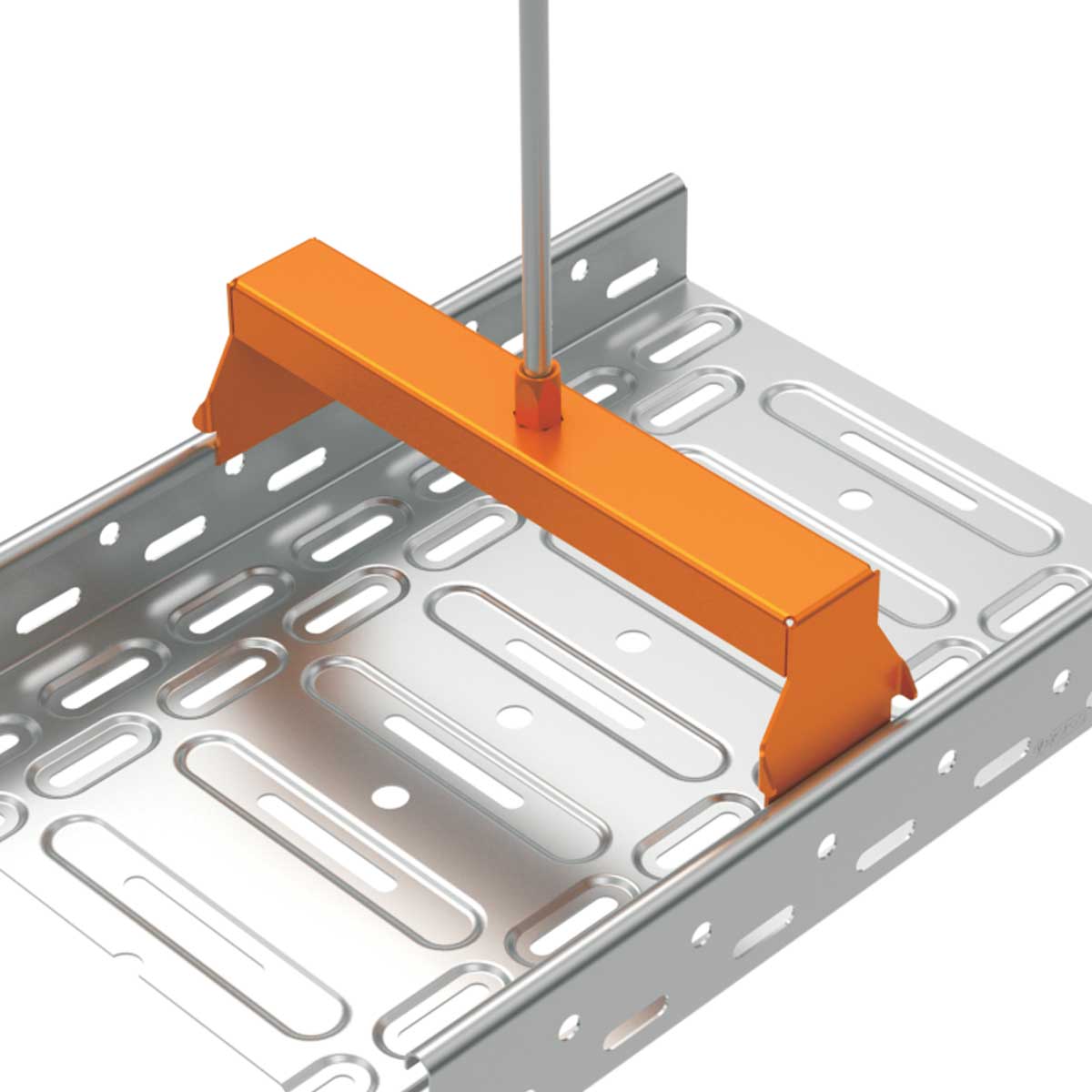

illustrative picture
To download 3D models, please login or create an account and request access.
ZVNE_EN
| EAN code | 8595568923448 |
| Customs code | 73269098 |
| Weight | 0,1080 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 2 mm |
| Maximum load | 90 kg |
| Dimension A | 42 mm |
| For width of cable tray | 62 mm |
| For height of cable tray | 50 - 100 mm |
It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The hanger is suitable for hanging cables with cross piece.
