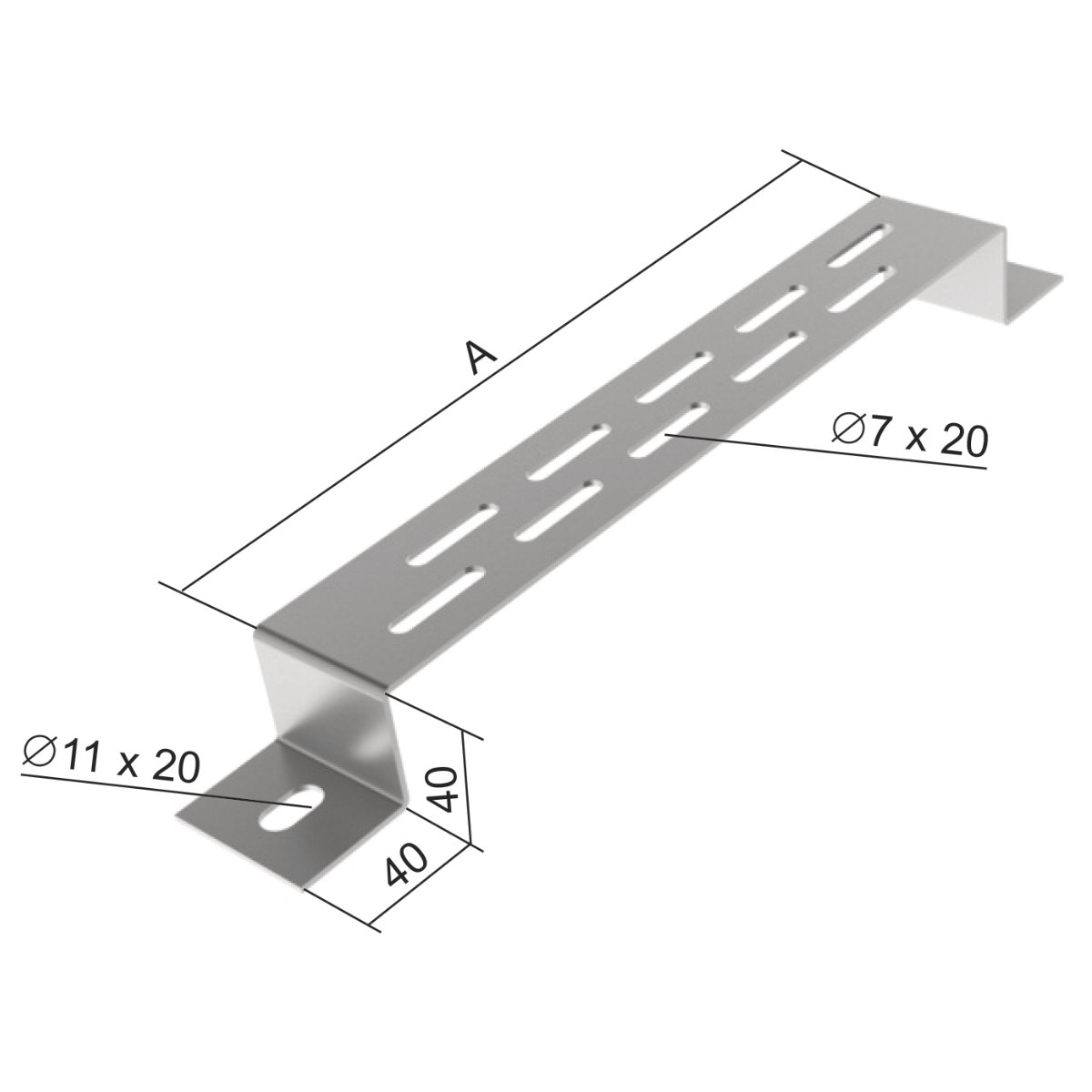

illustrative picture
To download 3D models, please login or create an account and request access.
| EAN code | 8595057664791 |
| Customs code | 73269098 |
| Weight | 0,2340 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 2 mm |
| Dimension A | 200 mm |
| For width of cable tray | 200 mm |

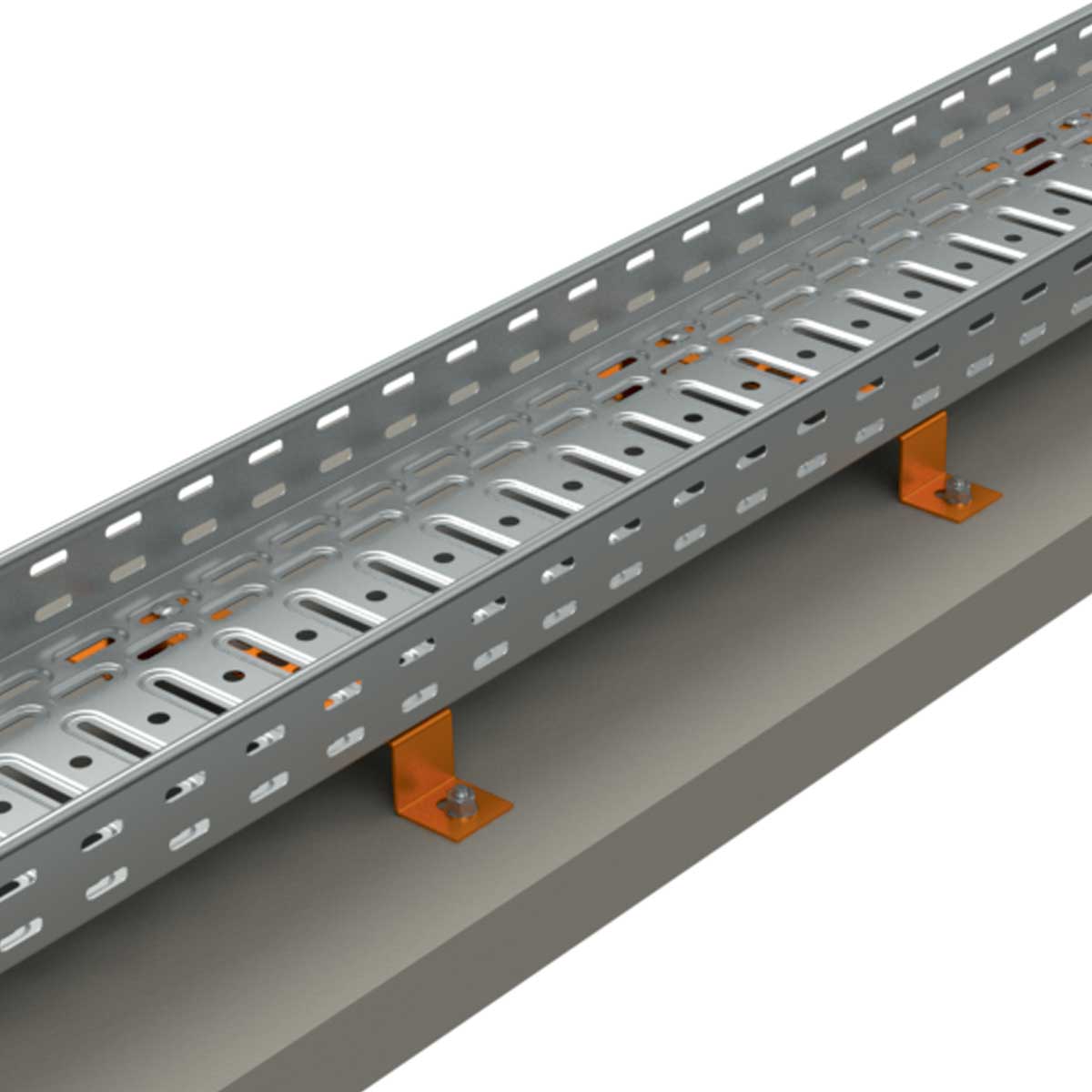

It is used to attach a cable tray to the floor or wall. Attachment to the wall is carried using the Ø 10 mm wall clamps. Cable tray is installed to VMB using the bolts NSM 6X10.
VMB_EN
