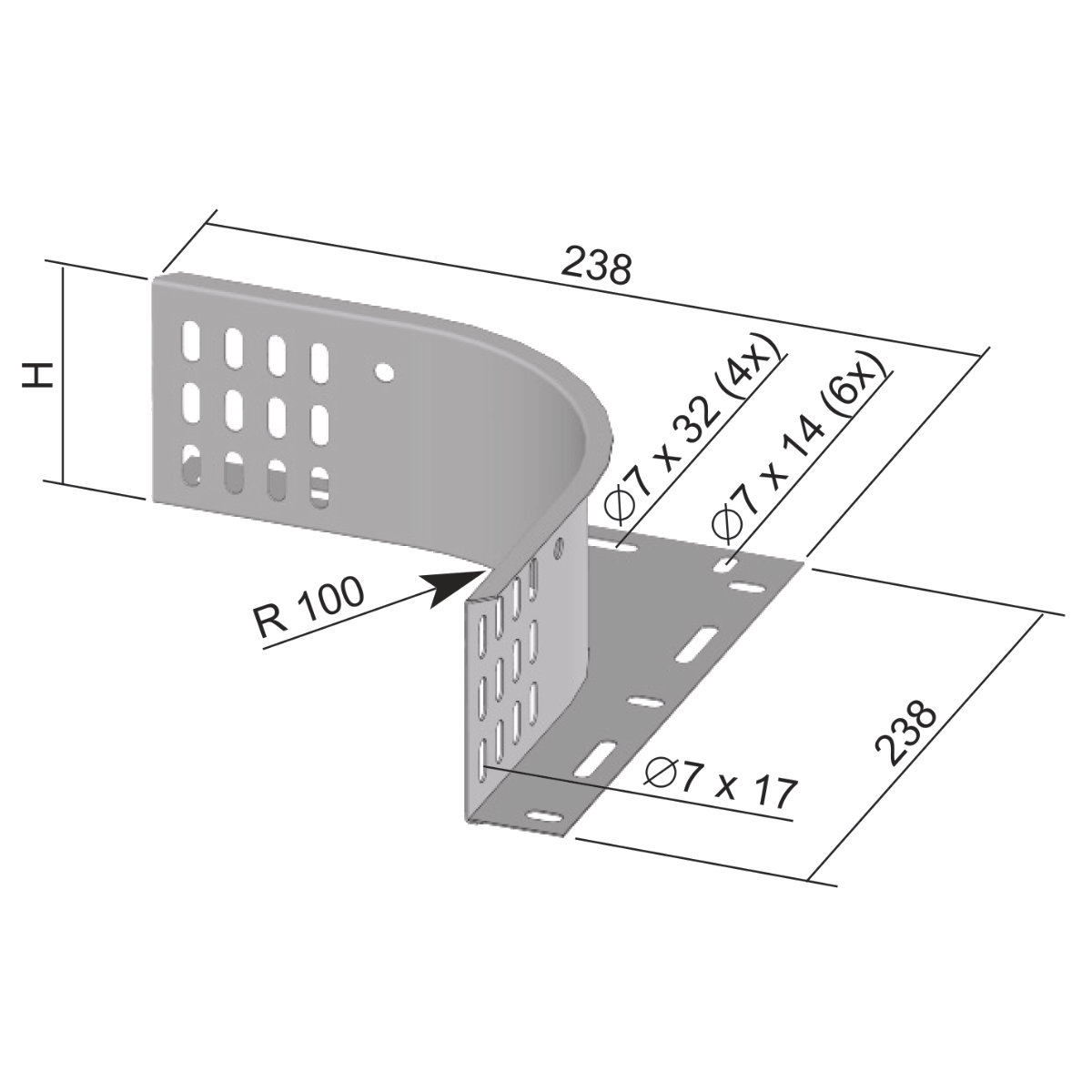

illustrative picture
To download 3D models, please login or create an account and request access.
SU_EN
| EAN code | 8595057638129 |
| Customs code | 73089059 |
| Weight | 0,2340 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 4 |
| Dimension H | 40 mm |
| For height of cable tray | 35 mm |
It is used for making an additional branching use an unequal T-piece or cross. Advantage of this using is availability to choose bending tray with any width. The reduction piece is delivered in singles, must be used 2 pieces for installation. The connection is performed using the bolts NSM 6X10. The cover of a horizontal VOH branch can be used to cover routes with a reduction piece.
