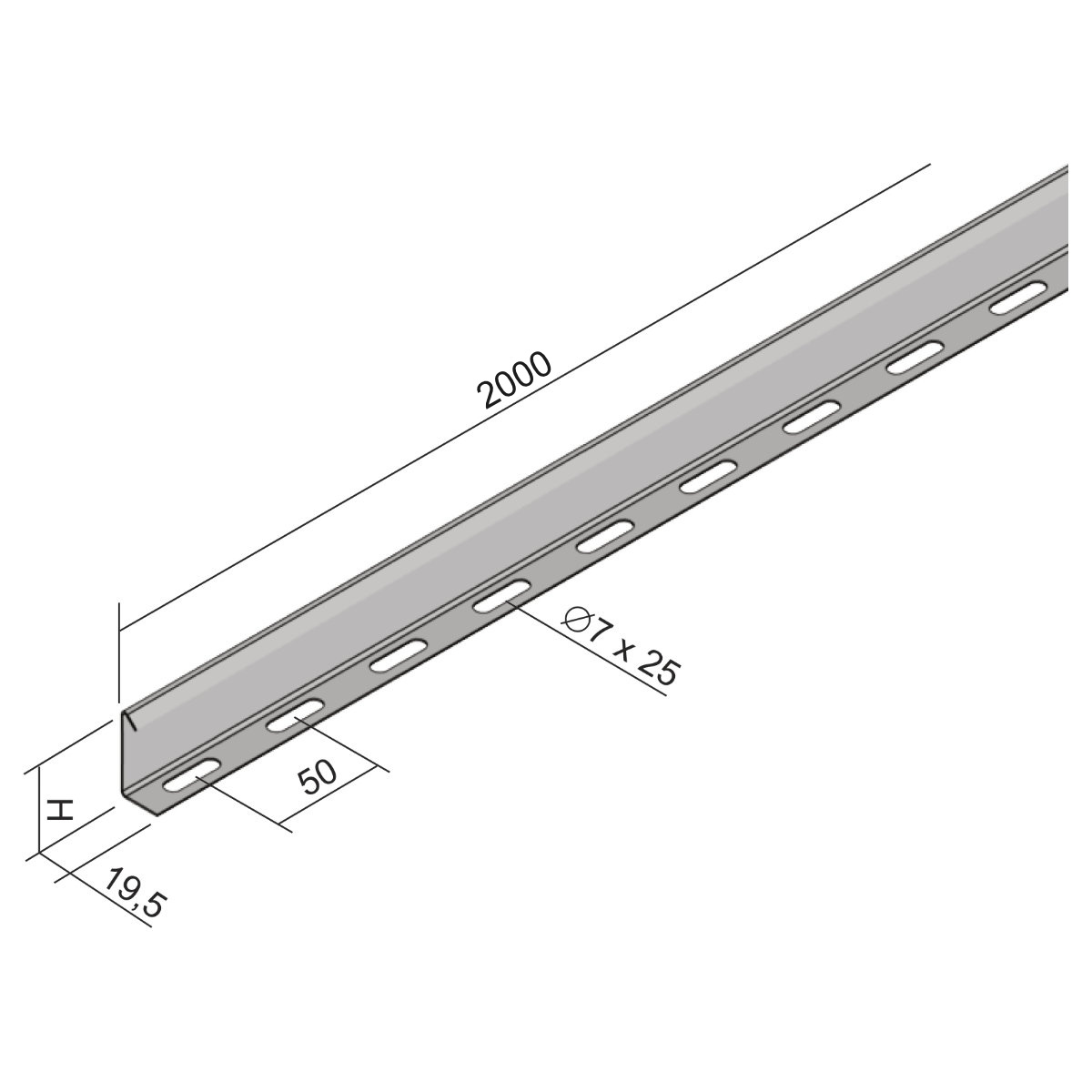

illustrative picture
To download 3D models, please login or create an account and request access.
P_EN
| EAN code | 8595057639515 |
| Customs code | 72169180 |
| Weight | 0,34 kg/m |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Length | 2000 mm |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Dimension H | 29 mm |
| For height of cable tray | 35 mm |

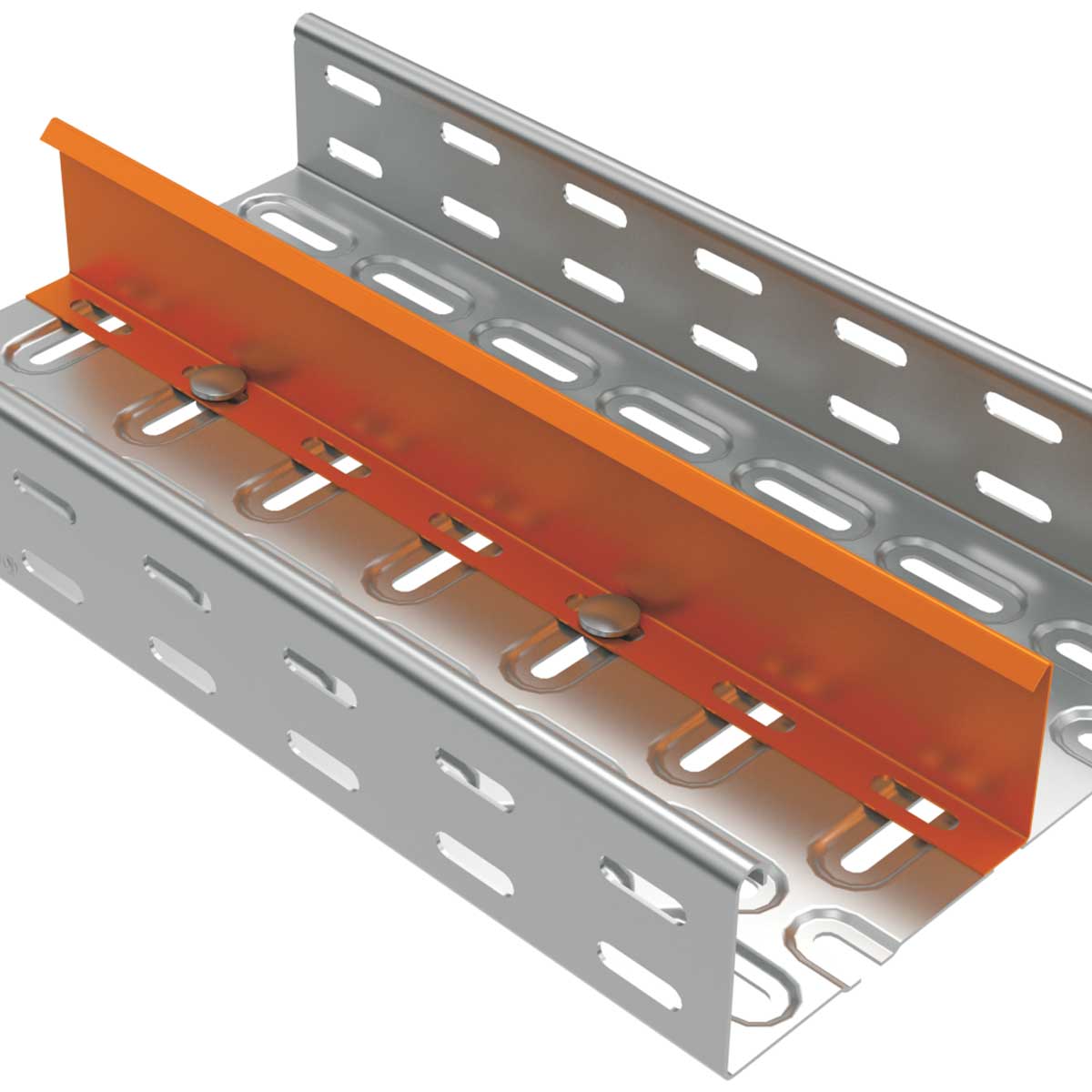

The connection is performed using the bolts NSM 6X10, 2 pcs per 1 meter. The partition is used to separate cables in cable trays. In term of electrical compatibility, it is also used for dividing several types of lines. It is recommended to use covers for this type of installation and make the covered and shielded room.
