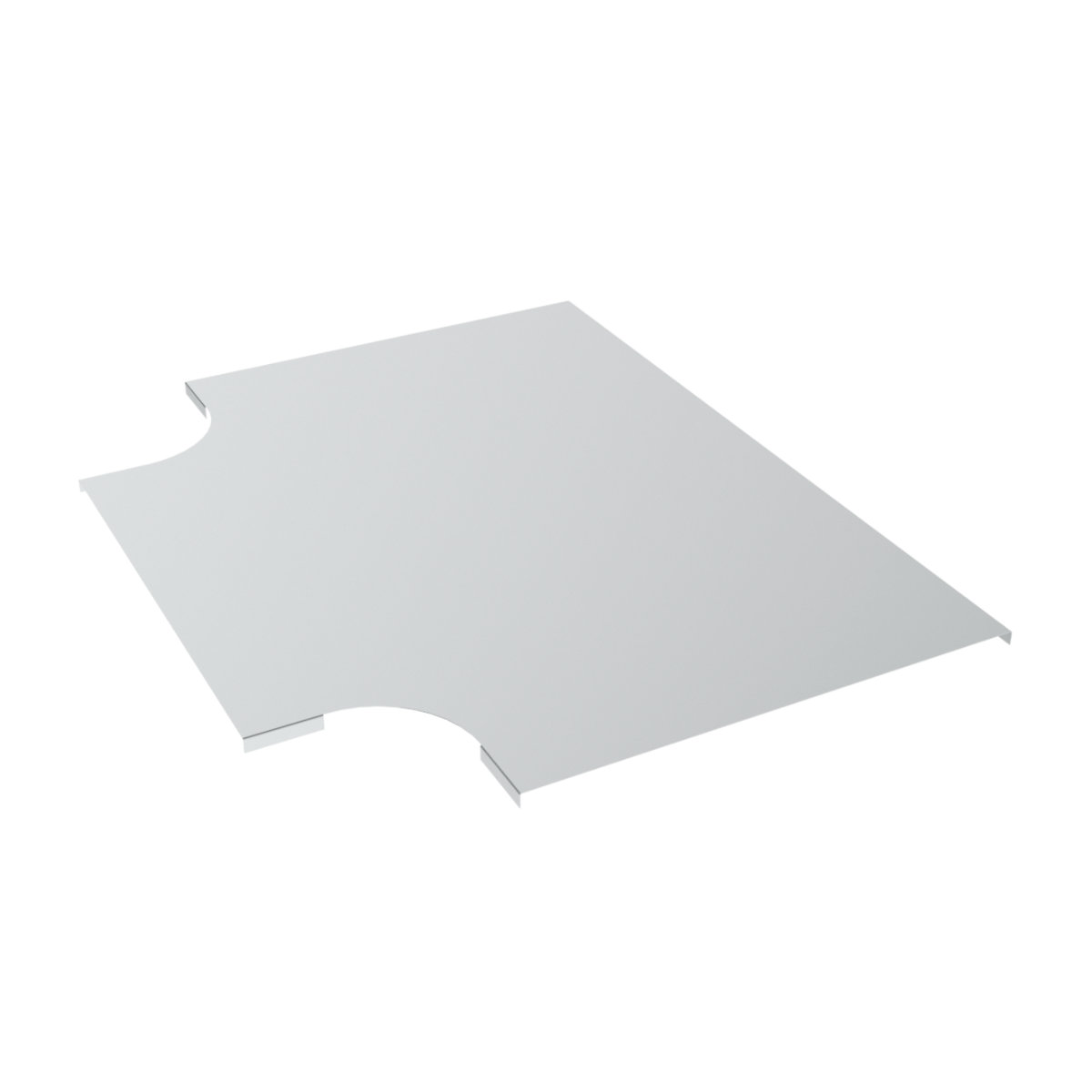

illustrative picture
To download 3D models, please login or create an account and request access.
NIXVT_EN
| EAN code | 8595057674998 |
| Customs code | 73089059 |
| Weight | 2,56 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,6 mm |
| Dimension A | 504 mm |
| Dimension B | 848 mm |
| Dimension C | 676 mm |
| Dimension H | 15 mm |
| For width of cable tray | 500 mm |
| For height of cable tray | 100 mm |
To fix the cover use cover fixtures NIXUV.
