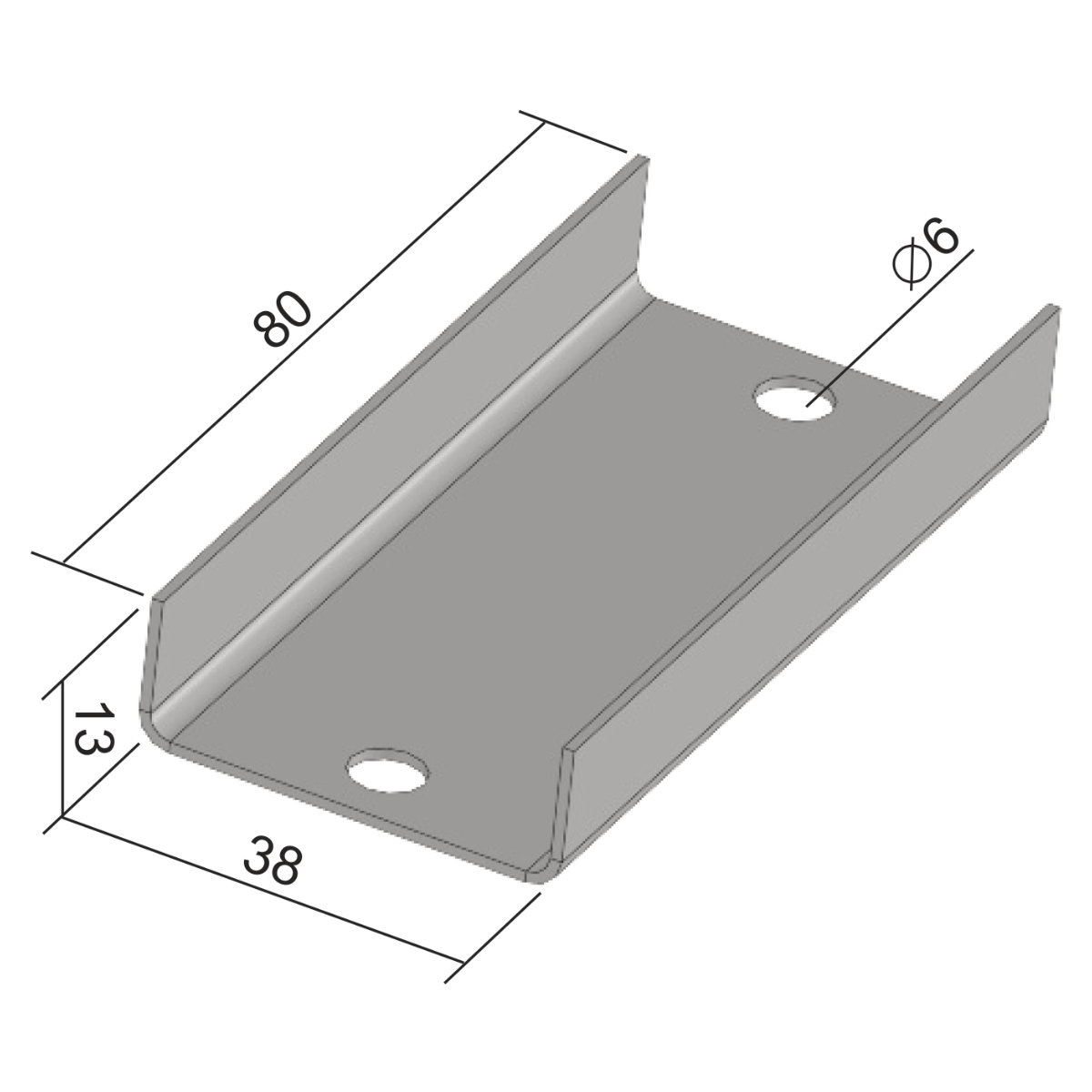

illustrative picture
To download 3D models, please login or create an account and request access.
NIXS40_EN
| EAN code | 8595057672093 |
| Customs code | 73269098 |
| Weight | 0,0400 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 2 |
| For width of cable tray | 40 mm |
| For height of cable tray | 20 mm |

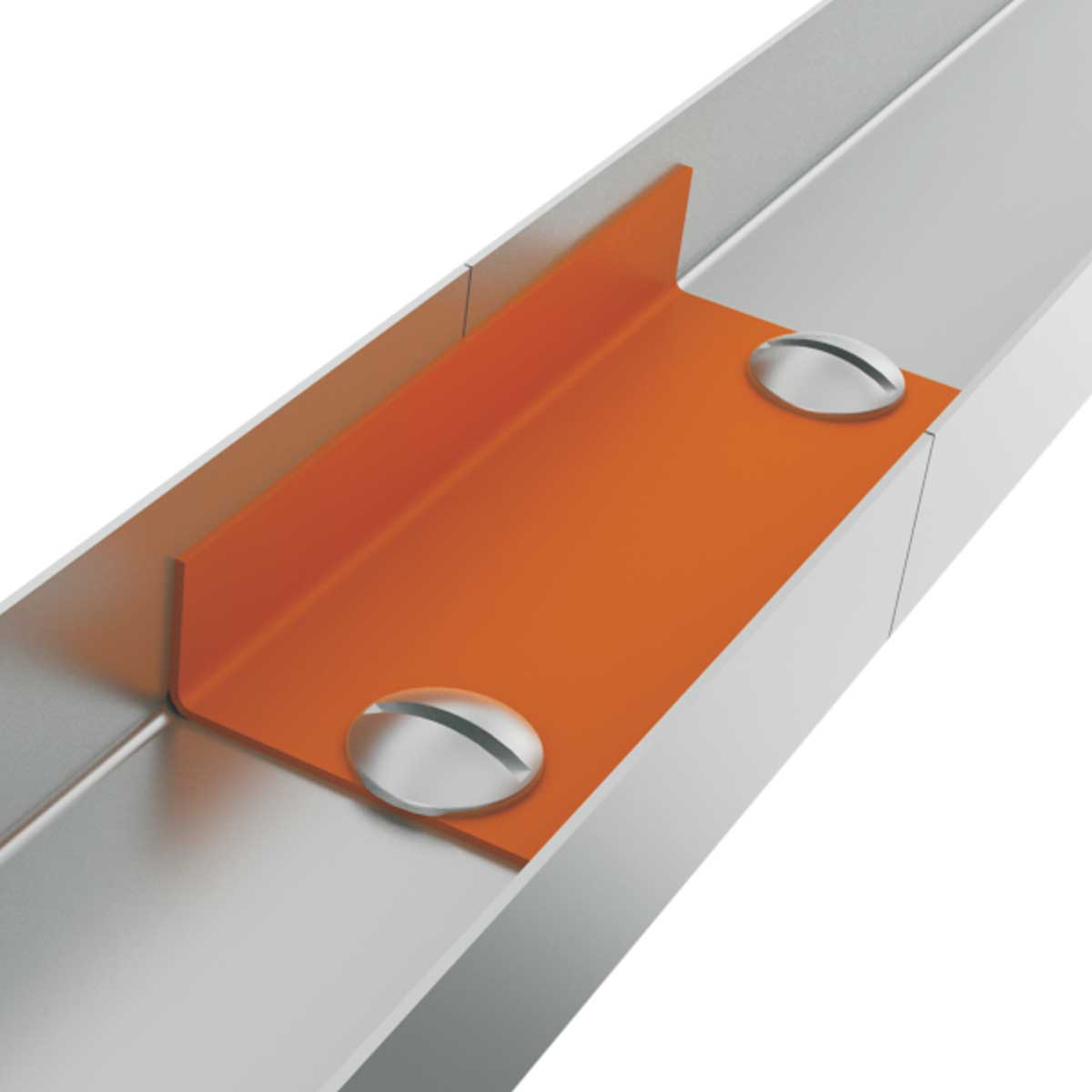

The joining is performed by using the bolts NIXSMP 5X10.
