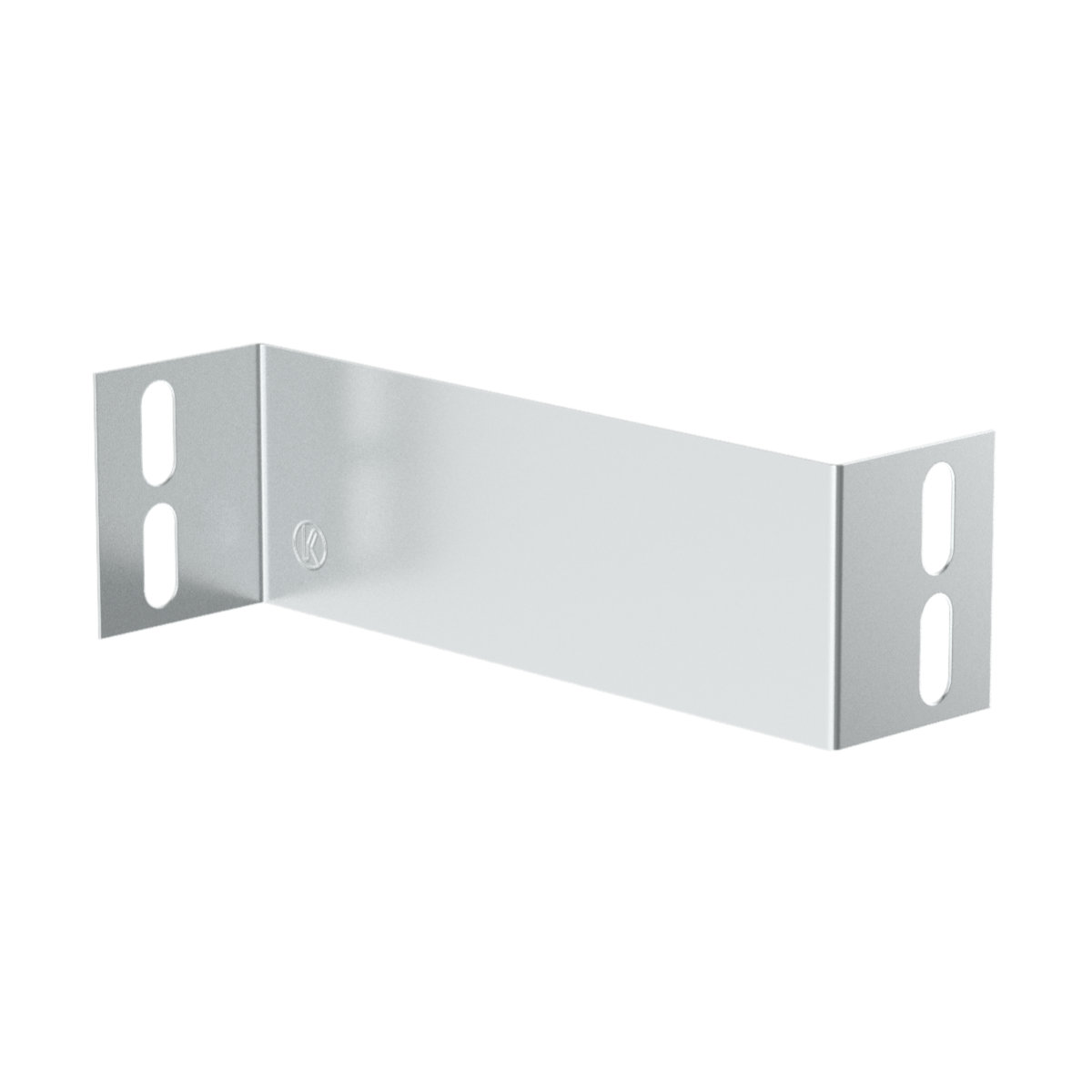

illustrative picture
To download 3D models, please login or create an account and request access.
NIXR_EN
| EAN code | 8595057672017 |
| Customs code | 73269098 |
| Weight | 0,0380 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - +150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,6 mm |
| Quantity of screws for connecting | 2 |
| Dimension A | 127 mm |
| Dimension H | 43 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 mm |
The joining is performed by using the bolts NIXSM 6X10. The reduction is used for the transition between various tray widths with identical height of side walls.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
