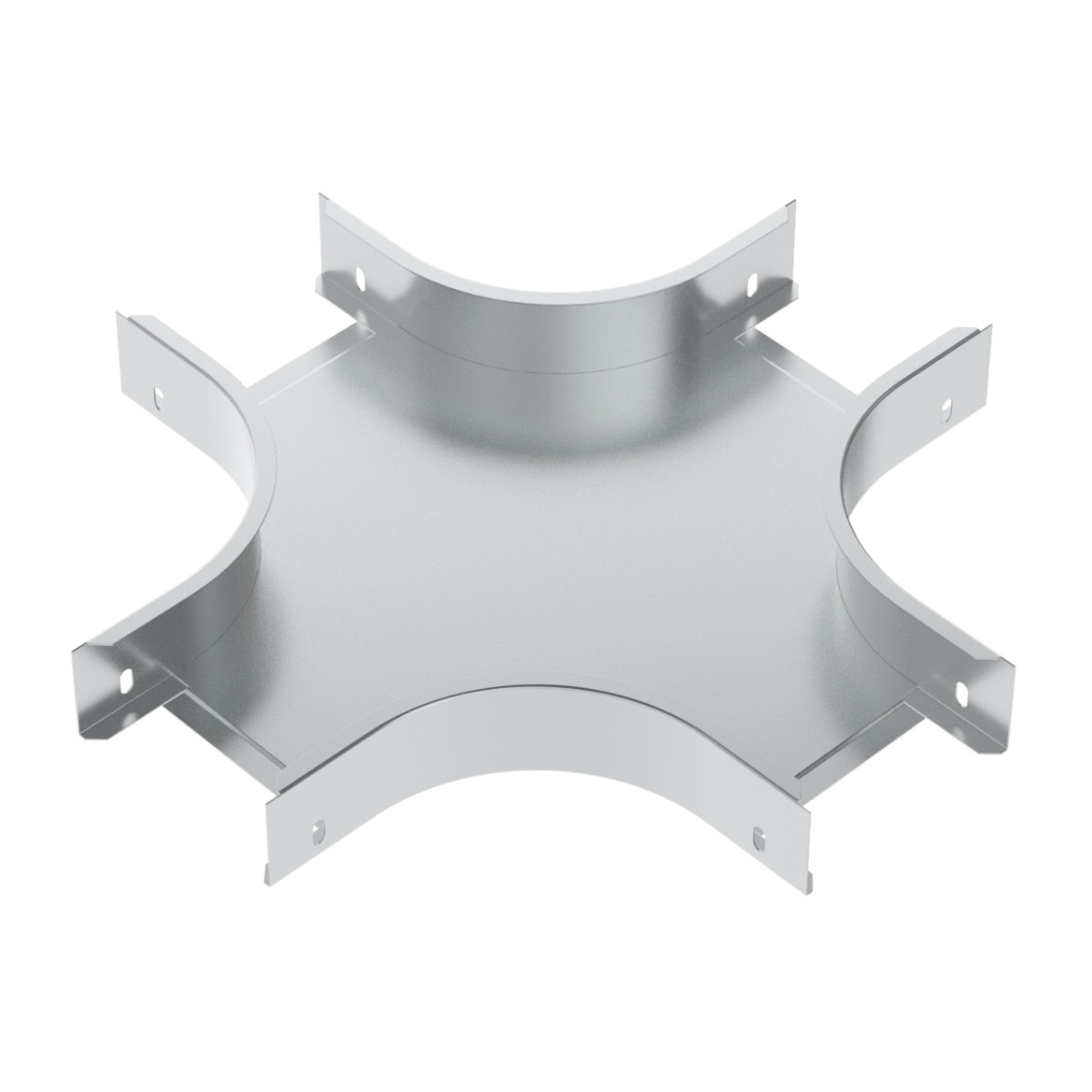

illustrative picture
To download 3D models, please login or create an account and request access.
NIXKR_EN
| EAN code | 8595057670488 |
| Customs code | 73089059 |
| Weight | 1,03 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 8 |
| Dimension A | 128 mm |
| Dimension B | 448 mm |
| Dimension H | 52 mm |
| For width of cable tray | 125 mm |
| For height of cable tray | 50 mm |
The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10.
