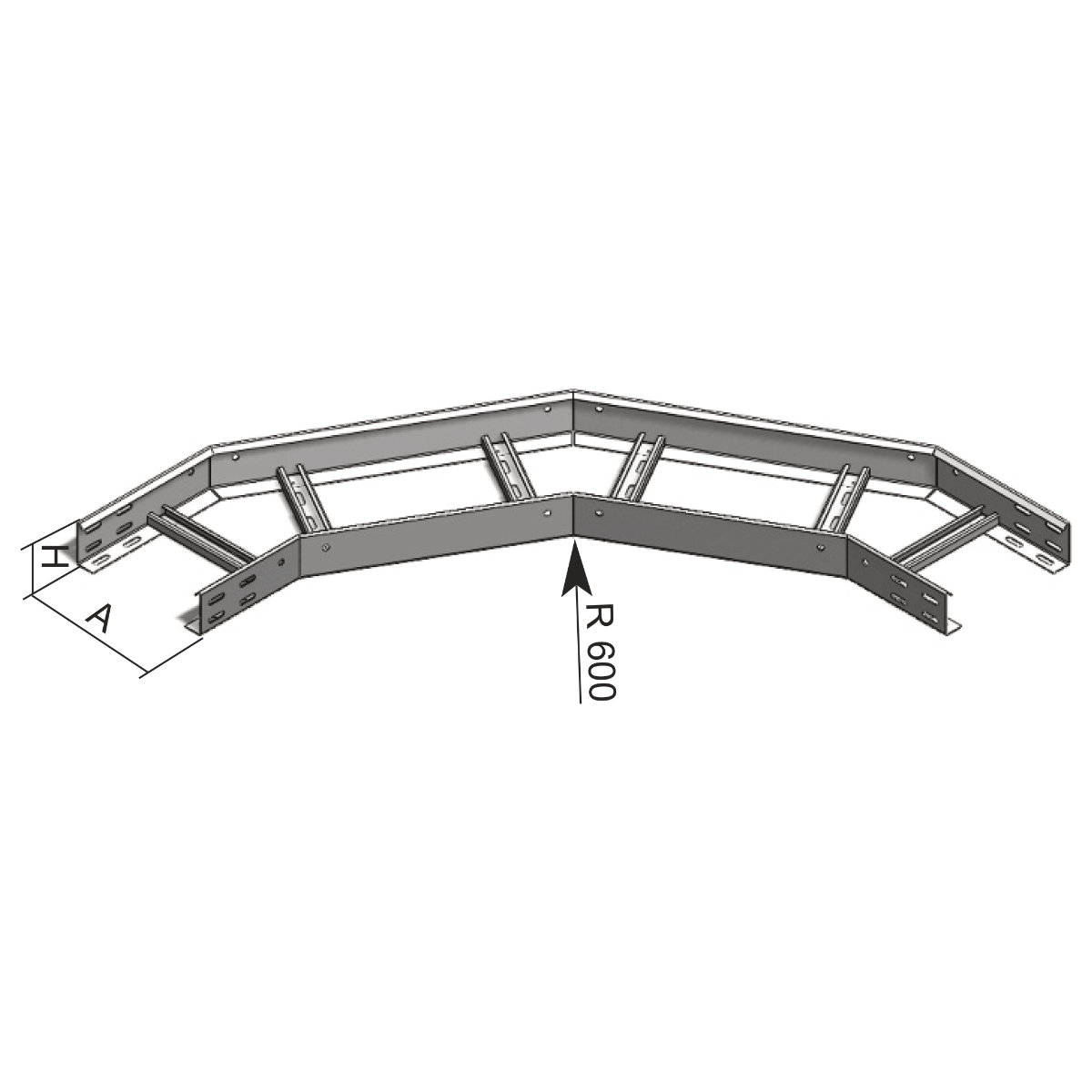

illustrative picture
To download 3D models, please login or create an account and request access.
KLOBH_EN
| EAN code | 8595057644526 |
| Customs code | 73089059 |
| Weight | 5,4840 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,2 - 1,5 mm |
| Quantity of screws for connecting | 16 |
| Dimension A | 600 mm |
| Dimension H | 60 mm |
The connection of the bend with the ladder is performed by using the 4 pcs couplings S 60X200 and 16 pcs the bolts NSM 6X10.
