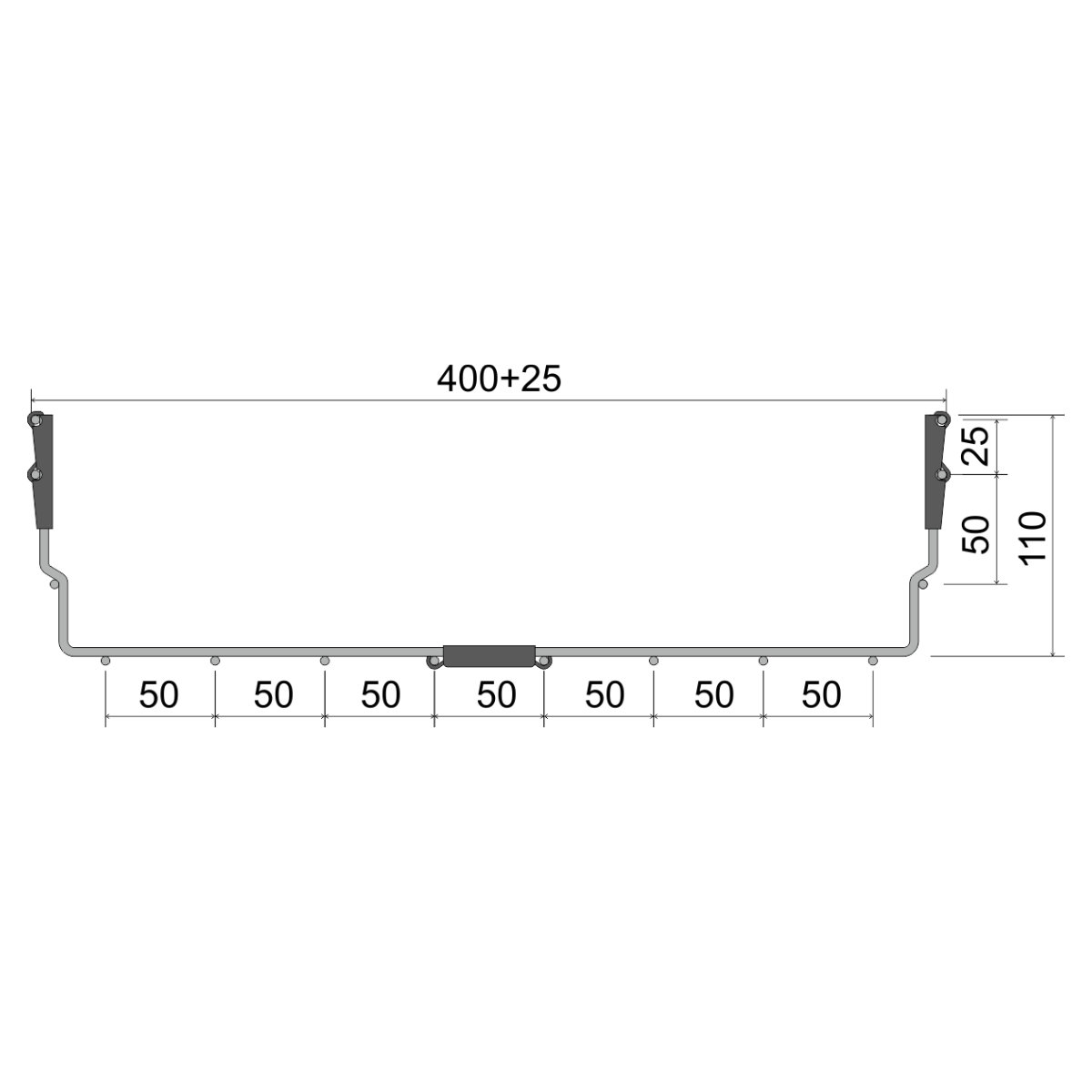

illustrative picture
To download 3D models, please login or create an account and request access.
DZI_EN
| EAN code | 8595568927958 |
| Customs code | 73262000 |
| Weight | 2,76 kg/m |
| Surface finish | Electrolytic Galvanized |
| Width | 400 mm |
| Height | 110 mm |
| Length | 3000 mm |
| Standards | ČSN EN 61537 |
| Wire diameter | 4,6 mm |
| Bottom grating | 50x100 |
| Connecting part at the bottom of the cable trays | 1 |
There are couplings at one end of the wire cable tray. In this way the conductive connection is fulfilled. To enable the proper ventilation it is recommended to install the trays at a distance at least 250 mm from each other and 20 mm from the wall.
