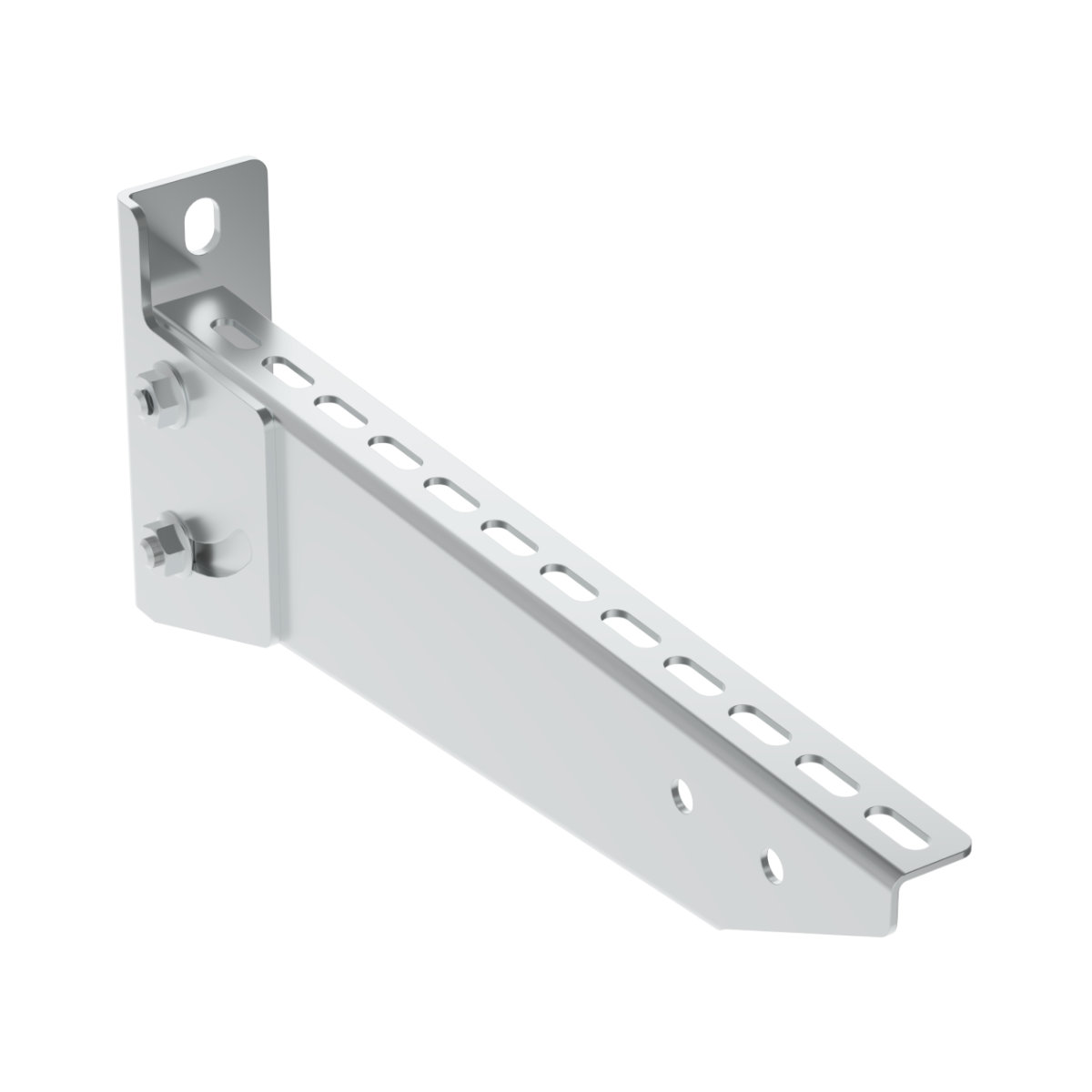

illustrative picture
| EAN code | 8595568925756 |
| Customs code | 83024190 |
| Weight | 0,8100 kg/pcs |
| Surface finish | Pre-Galvanized |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Dimension A | 324 mm |
| Dimension B | 45 mm |
| Dimension C | 102 mm |
| For width of cable tray | 200 mm |
| For height of cable tray | 60 mm |
| Max. load for fire resistance | 10 kg |
Note for system with maintained functionality in fire:
The bracket allows cable trays to be fixed to sloping structures up to a 45° angle. The goods are delivered exclusively on order.
You find more information in the catalogue Cable management systems - Fire resistant systems.
