BSKH 60 D_F
BSKH 60 D_F
BSKH 60 D_F
BSKH 60 D_F
To access download of 3D models login or register.
EAN code8595568904201
Customs code73269098
Weight0.96 kg/pcs
Surface finishHot Dip Galvanized
Temperature resistance-50 - 150 °C
StandardsČSN EN 61537
Thickness of metal sheet2 mm
Quantity of screws for connecting8
Dimension A315 mm
Dimension H64 mm

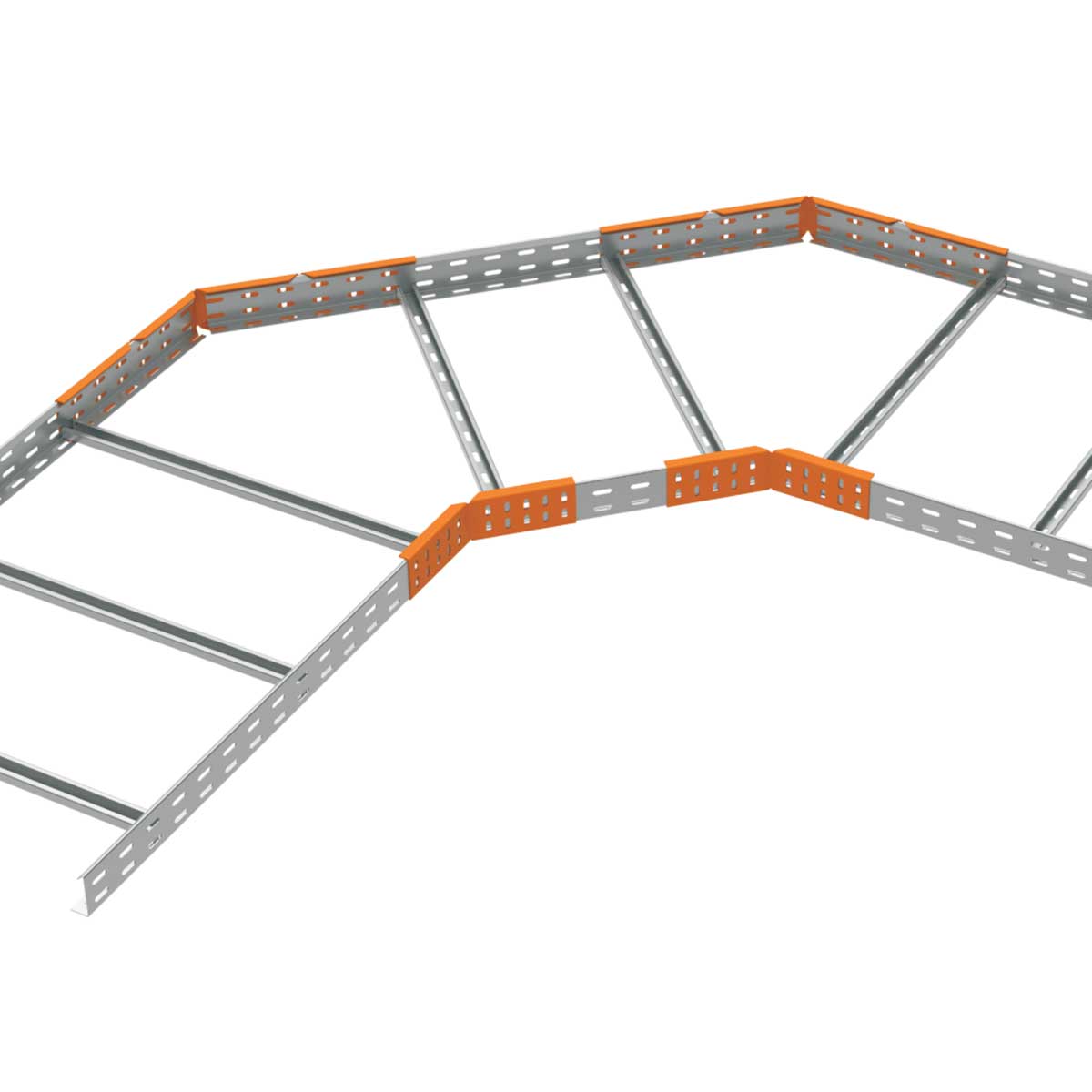

Used to create branches in cable ladder routes or as a substitute for cable ladder fittings or to create a change in a route at different angles and different bending radiuses. Connectors are a cost-effective and versatile way of creating branches in routes in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. The fastening of the joint is performed with the bolts NSM 6X10.
