EAN code8595568919199
Customs code85366990
Weight0,04 kg/pcs
Colourwhite
MaterialPC-ABS
Rated voltage250 V
Rated current16 A

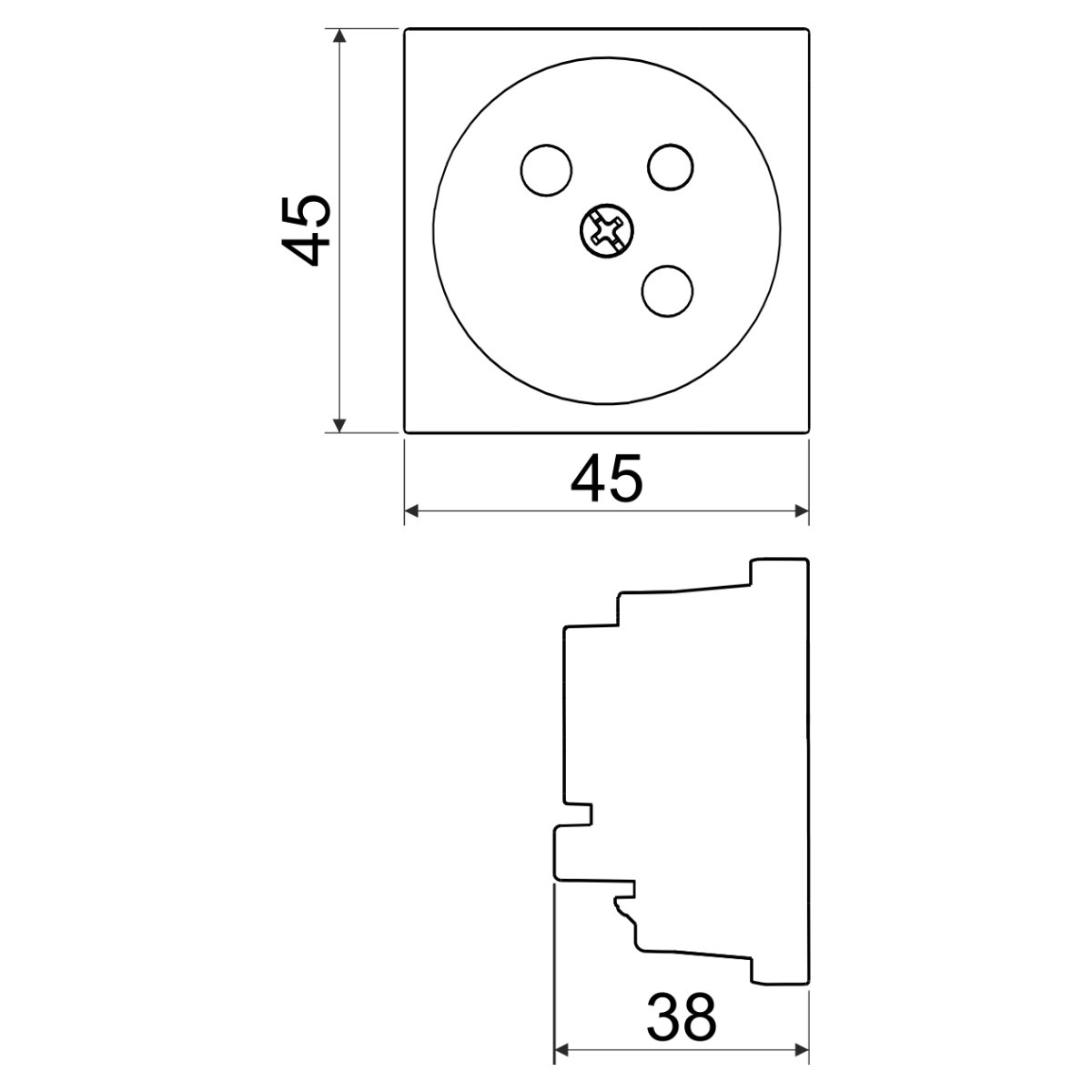

Width45 mm
Height45 mm
Depth38 mm
Use
PK 90X55 D, PK 120X55 D, PK 160X65 D, PK 210X70 D
Protection typesIP 20
Torque-moment0,6 Nm

For 1.5-2.5 mm2 Cu wires. The fixing of the conductor is performed by means of screws. Installation by snap-on movement only. The socket modules can continuously connect, max. is determined by the parapet trunkings or boxes series KOPOBOX®.  The use of the PIN system (with pin) and the SCHUKO system (with spring contacts) sockets should be according to the standards of each particular country.
