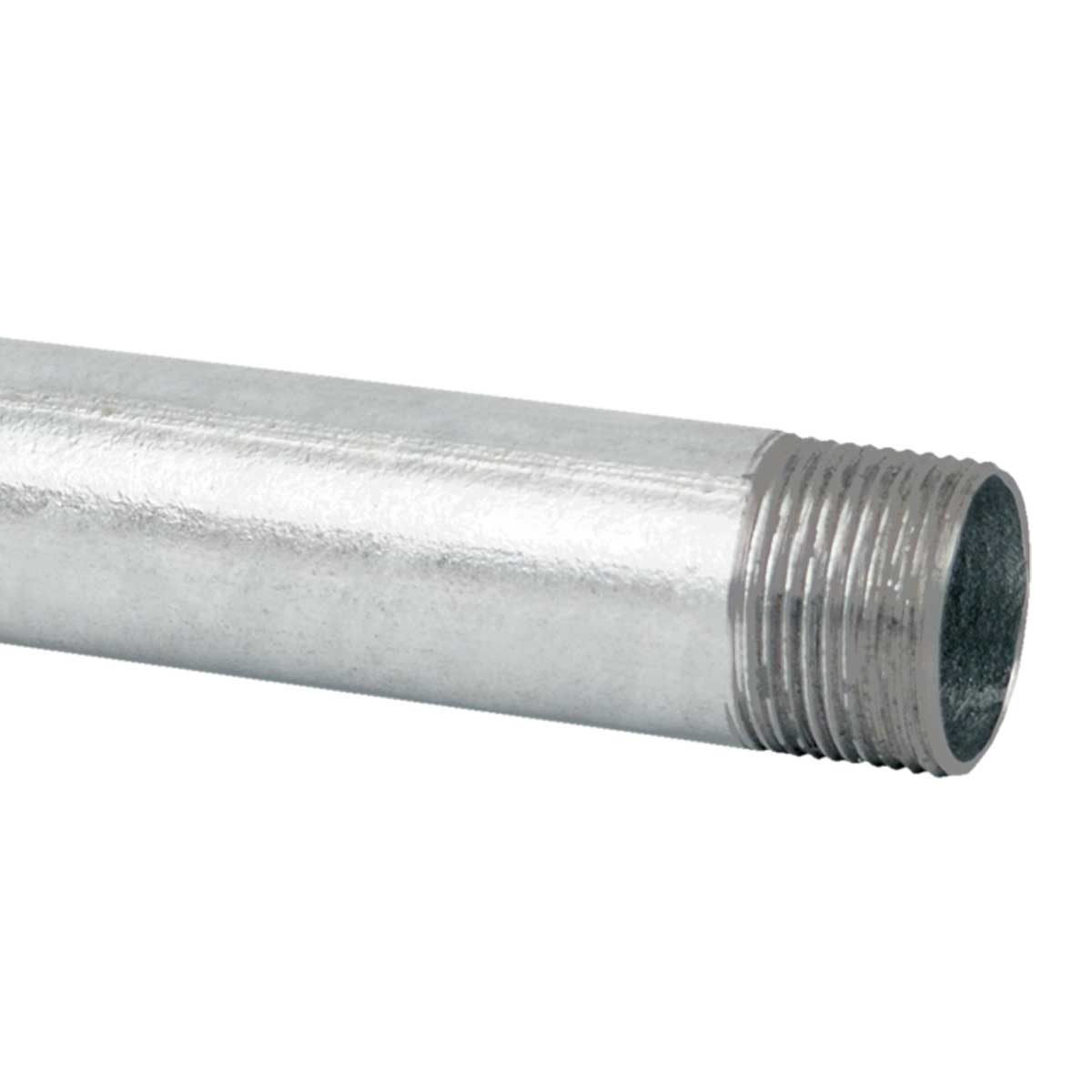

illustrative picture
| EAN code | 8595568922342 |
| Customs code | 73063041 |
| Weight | 1,2000 kg/m |
| Material | steel |
| Surface finish ZNM: Sendzimir Galvanized, zinc layer 15 - 27 micron, replaces primer, medium corrosion resistance - group 2 | |
| Temperature resistance | -45 - +250 °C |
| Mechanical resistance | 4000 N/5cm |
| Mechanical protection | IK10 |
| Length | 3 m |
| Outside diameter | 32 mm |
| Inner diameter (min.) | 26,6 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Thread type | M32 x 1,5 |
| Sorting code | 55561 |
| Standards | ČSN EN 61386-1 ed.2 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Max. load for fire resistance | 10 kg |
The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Cable management systems - Fire resistant systems.
