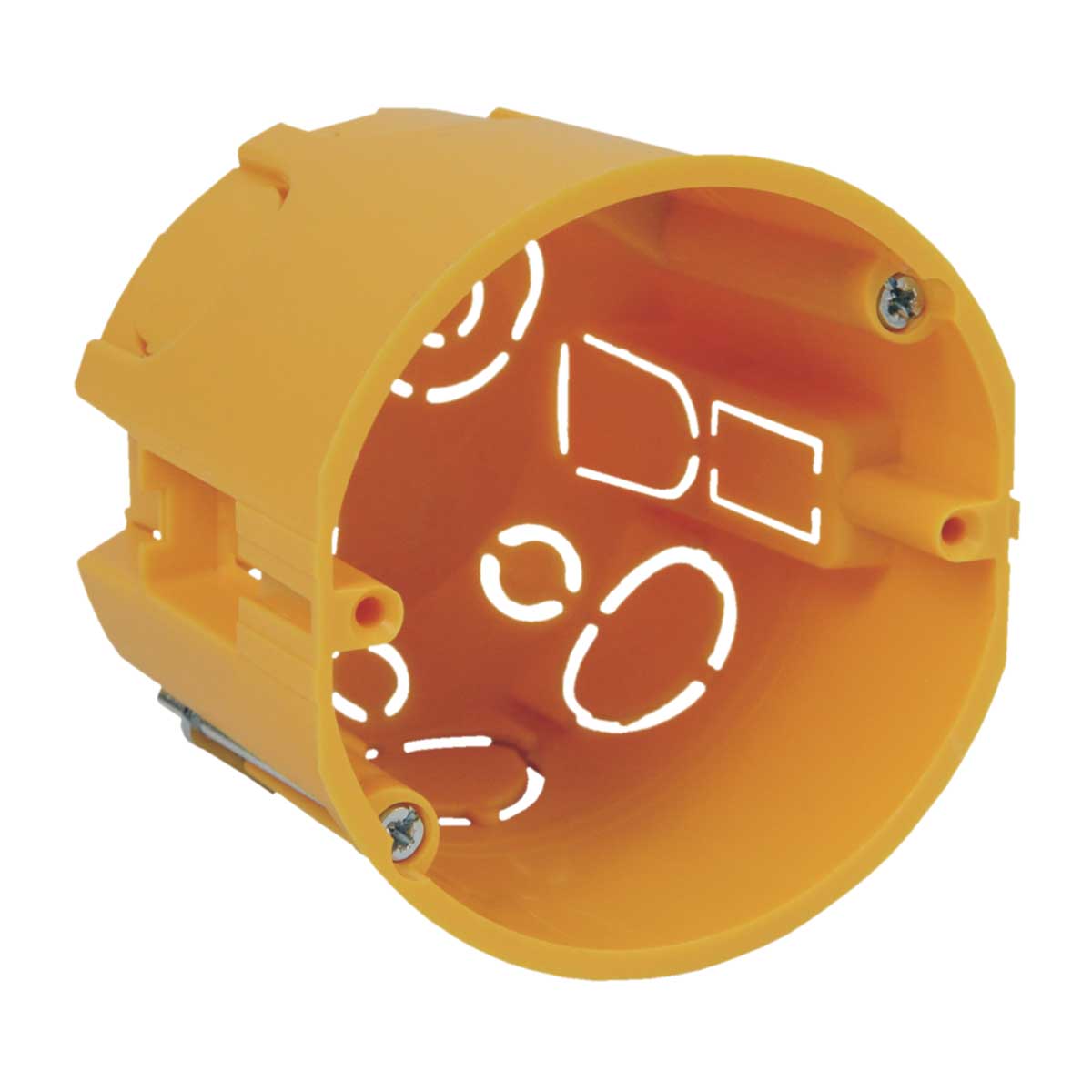

illustrative picture
To download 3D models, please login or create an account and request access.
KPR6871L_EN
| EAN code | 8595057687929 |
| Customs code | 39259080 |
| Weight | 0,0519 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |
| Diameter | 73 mm |
| Depth | 70 mm |
| Milled (drilled) hole diameter | 73 mm |
| Manufactures´s recommendations For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Fire reaction class of underlying material | A1 - F |
| Spacing when joining 2 boxes | 71 mm |
| Allows to install double-socket | yes |
| Protection types | IP 30 |
| Standards | ČSN EN 60 670-1 |
| Package description individual boxes fitted with screws for installation in plasterboard | |
Easy installation of devices with big depth. Connection in a continuous series with axial distance of 71 mm. Possibility to insert terminal S-66. Integrated tip to mark the centre of drilling. Jointed boxes can be interconnected using single insulated wires. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection When mounting, it is not necessary to countersink the plasterboard edge.
