EAN code8595057620940
Customs code39259020
Weight0,49 kg/m
Colourwhite
MaterialPVC
Leadless materialyes
Self-extinguishing30 s
Temperature resistance-5 - 60 °C
Flaming loop test850 °C
Impact resistance1 J

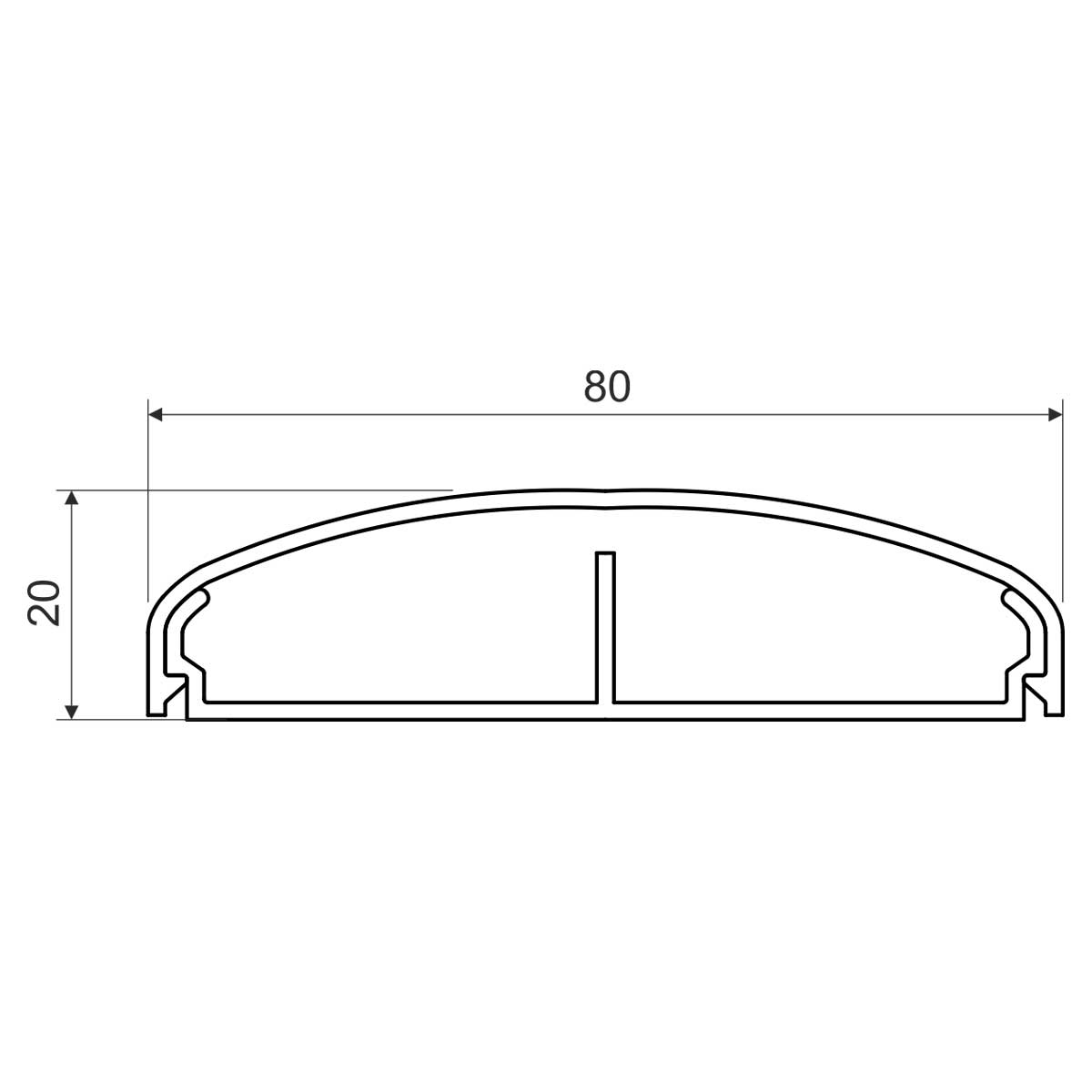

Width80 mm
Height20 mm
Length2 m
Inside area420, 420
Allowance
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Area with explosion danger
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Fire reaction classA1 - F
Protection typesIP 40
StandardsČSN EN 50 085-1
Package descriptionpackage - cardboard
