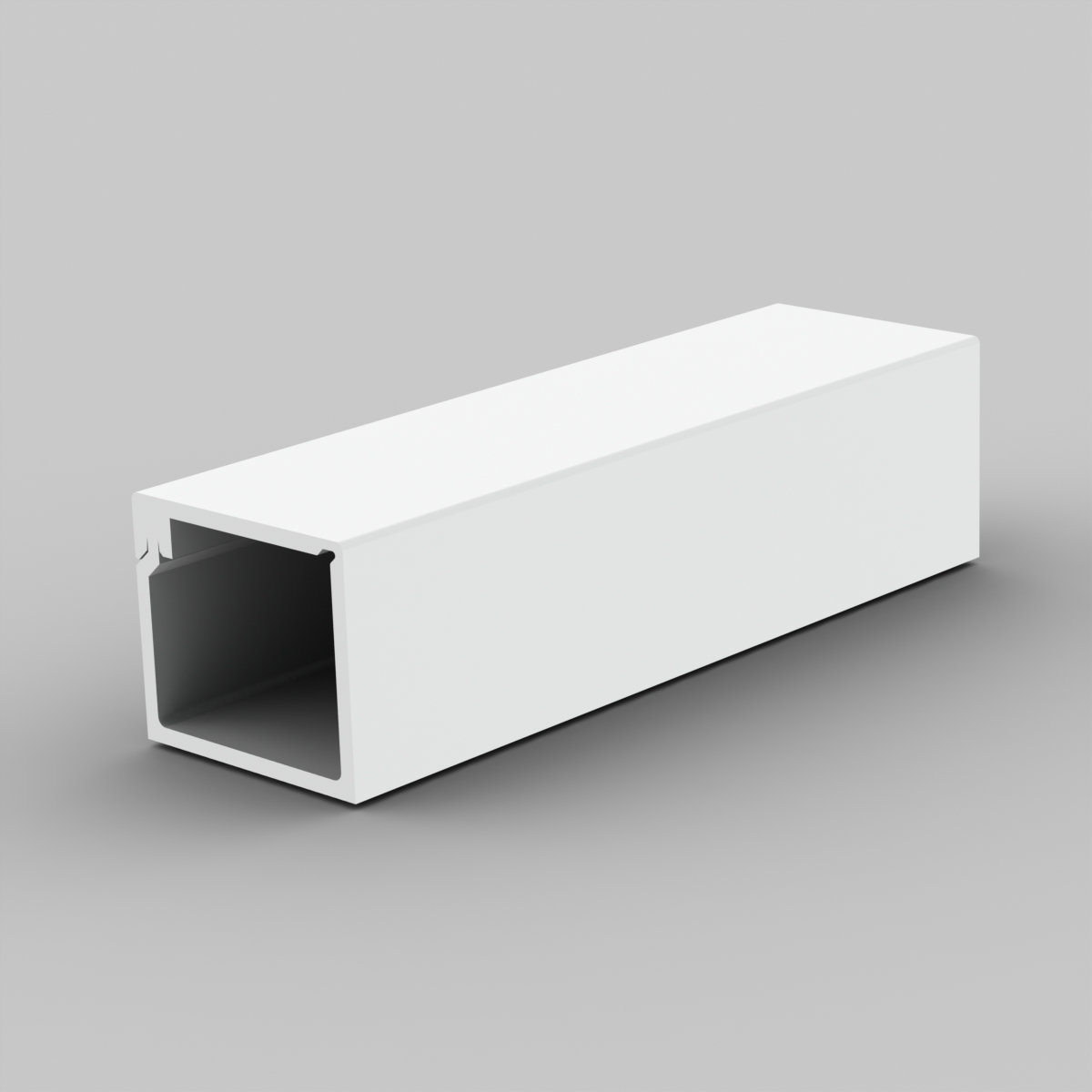

illustrative picture
To download 3D models, please login or create an account and request access.
| EAN code | 8595057612426 |
| Customs code | 39259020 |
| Weight | 0,0780 kg/m |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |
| Impact resistance | 1 J |
| Antibacterial | yes |

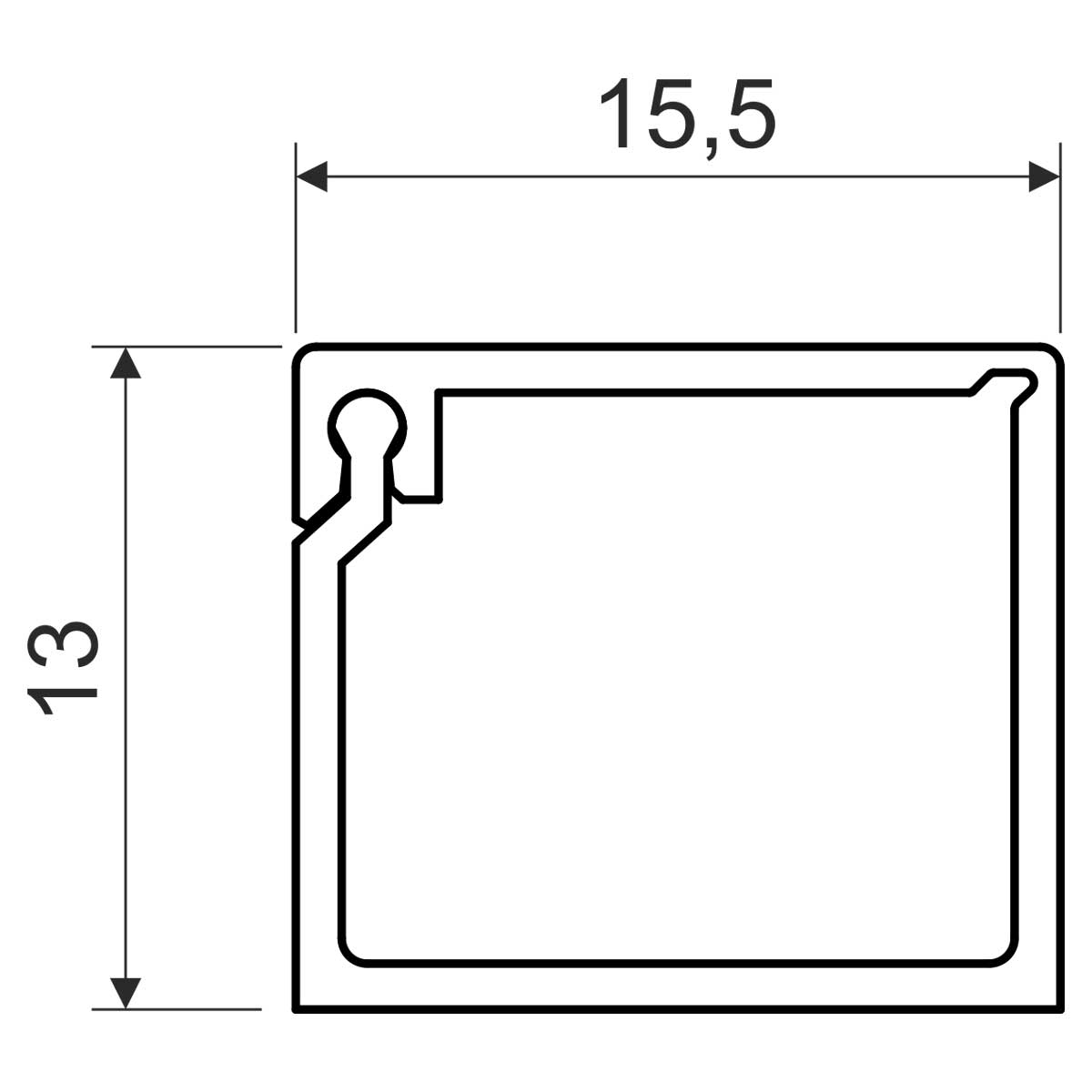

| Width | 15,5 mm |
| Height | 13 mm |
| Length | 2 m |
| Inside area | 140 mm2 |
| Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 30 |
| Standards | ČSN EN 50 085-1 |
| Package description | package - cardboard |
One side of the rounded lid is a part of the trunking body, the second side of the lid can be simply snapped on, it is fitted with double lock increasing the trunking´s rigidity and ensuring stronger cover fixation.
