EAN code8595057626140
Customs code39174000
Weight0,0220 kg/pcs
Colourblack
MaterialPA
Halogen free materialyes
UV stable/UV stable materialyes
Self-extinguishing30 s
Temperature resistancestable mounting: -50 to + 120 ° C; flexible mounting: -45 to +120 ° C
Pipe outside diameter25 mm
Note
Combination of accessories and pipes is always controlled by outside diameter of the pipe used.
Area with explosion danger
Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22.
Protection typesIP 66
StandardsČSN EN 61386-24

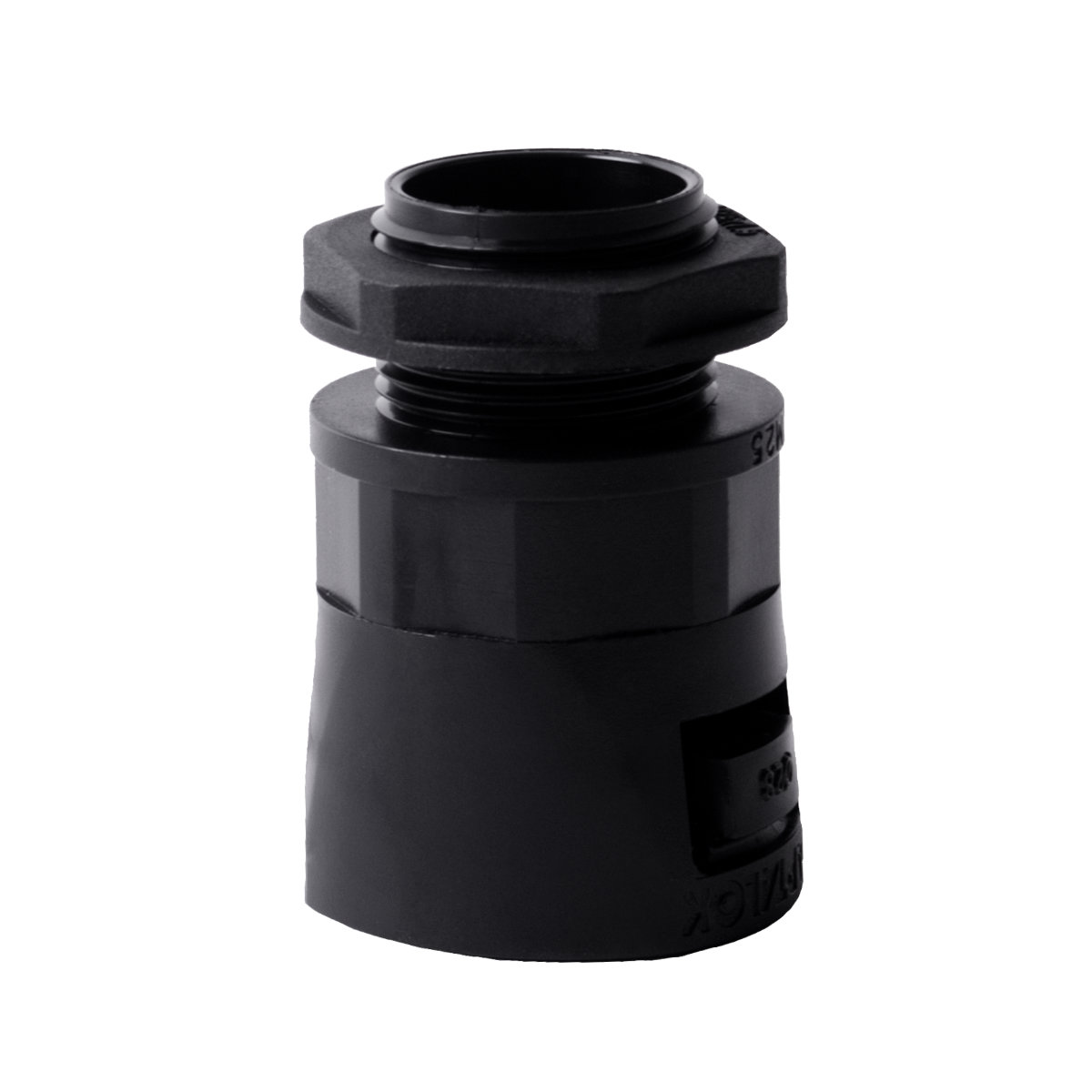

Adaptalok is a system of utilities allowing to terminate and fix the pipe. Utilities allow 45° and 90° tapping and direct threaded termination - M16 - M50 or PG13,5 - PG48. pipe termination is available as for flange as well. Installation and removal is easy and quick.
