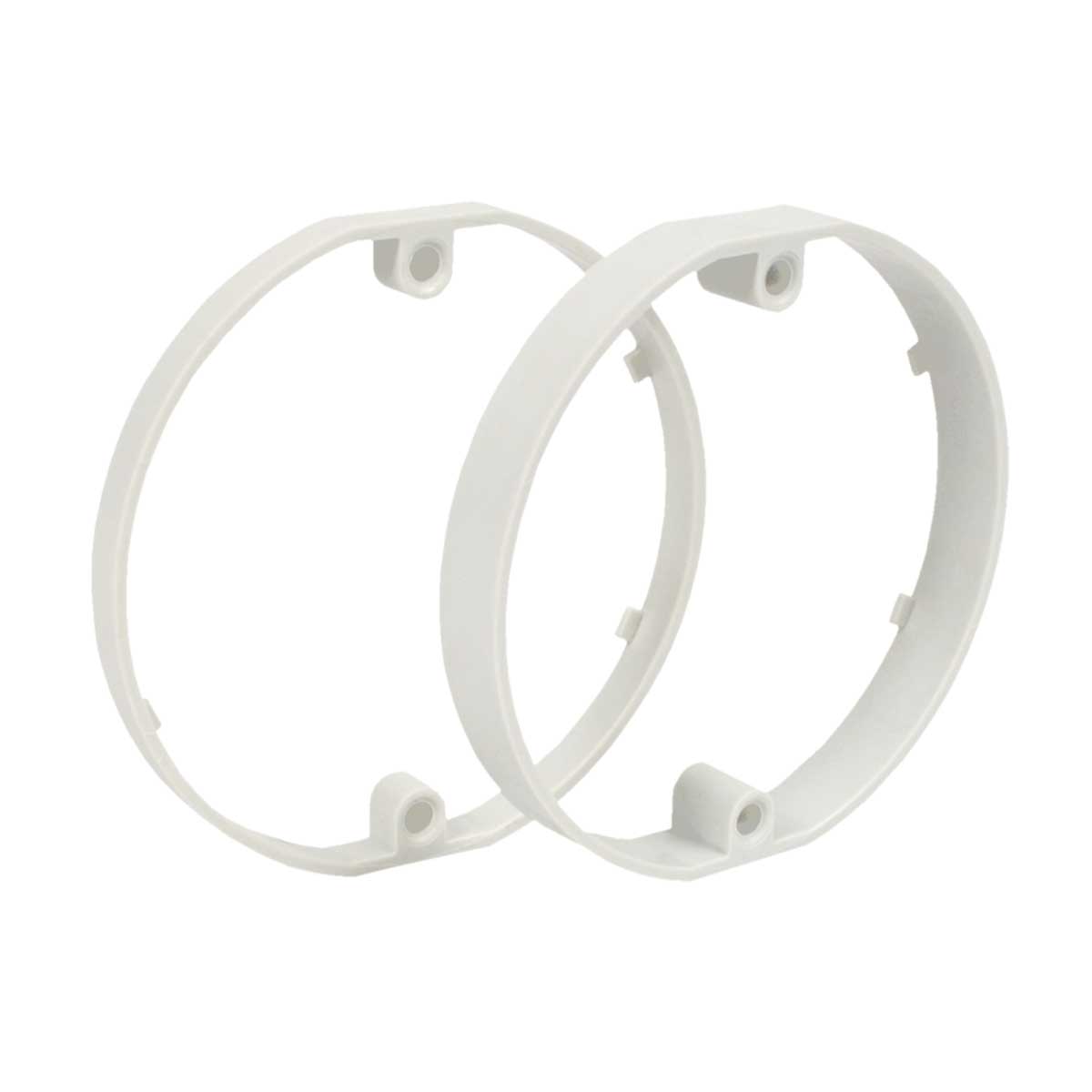

illustrative picture
To download 3D models, please login or create an account and request access.
NR68_EN
| EAN code | 8595057619043 |
| Customs code | 39259080 |
| Weight | 0,0068 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Diameter | 73 mm |
| Height | 10 mm |
| Fire reaction class of underlying material | A1 - F |
| Spacing when joining 2 boxes | 71 mm |
| Package description | packed in shrink foil |
For individually installed boxes of the KU, KP and KUH lines, with the edge under the plastering or tiling surface. Can also be used for boxes for combined devices KP 64/2, 3, 4, 5.
