EAN code8595568939333
Customs code73269098
Weight0,2416 kg/pcs
Surface finishZn+Mg+Al galvanizing
Temperature resistance-50 - 150 °C
StandardsČSN EN 61537
Thickness of metal sheet1,2 mm
Quantity of screws for connecting8
Dimension H78 mm
For height of cable tray85 mm

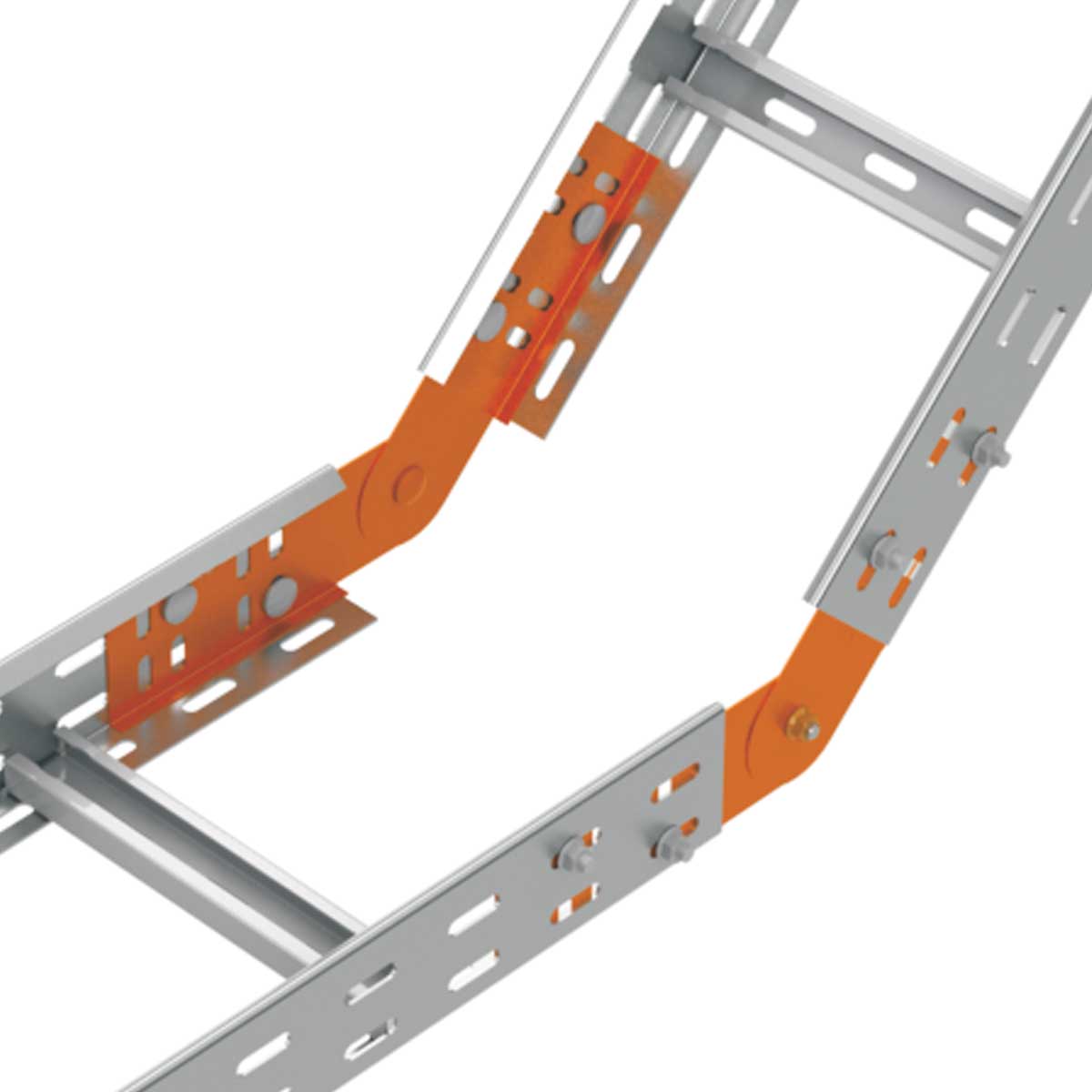

For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
