SBKP_6850L_EN
| EAN code | 8595568938664 |
| Customs code | 39259080 |
| Weight | 0,04 kg/pcs |
| Colour | orange + gray |
| Material | PP |
| Halogen free material | yes |
| Leadless material | yes |
| Rated voltage | 400 V |
| Temperature resistance | -25 - 60 °C |
| Short term temperature resistance | 90 °C |
| Flaming loop test | 650 °C |

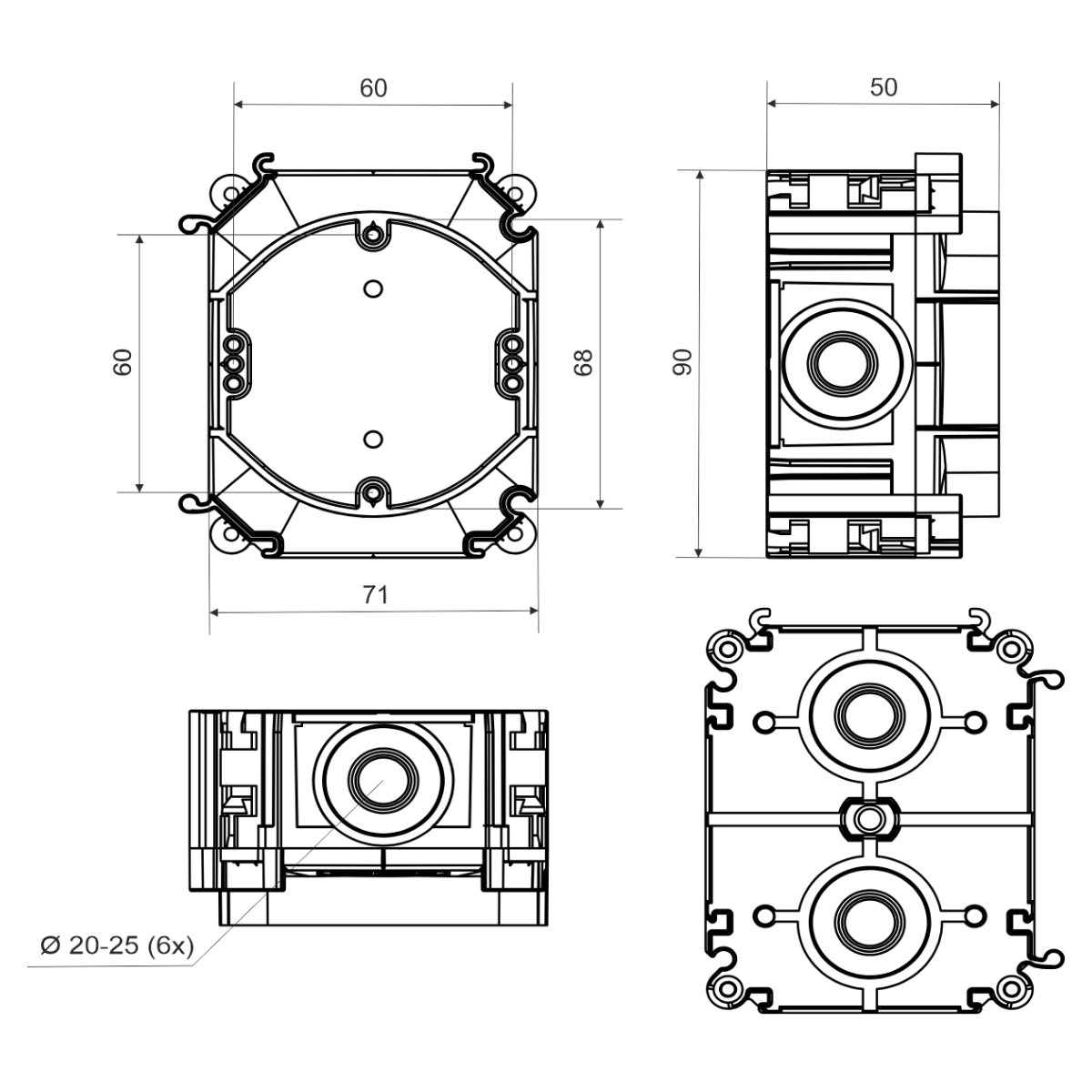

| Diameter | 68 mm |
| Width | 71 mm |
| Height | 90 mm |
| Depth | 50 mm |
| Fire reaction class of underlying material | A1 |
| Spacing when joining 2 boxes | 71/90 mm |
| Package description | box with shrink wrap lid |
Instrument box for cast concrete - installation depth 50 mm. The lid of the box is adapted for nailing or screwing with screws to wooden formwork. The possibility to fix the lid of the box using glue from a hot melt gun. Sealed connection of the lid with the box. Pipe inlets fitted with a sealing membrane to prevent the concrete penetration. The possibility of fixed connection of boxes with a pitch of 71 mm and 90 mm. The possibility of fixing the box to the reinforcement (metal armature) ) using SB-MK 1 mounting wings (not included in the delivery). The possibility of using a box for double-sided assembly - mutual fixation using steel rods 6 mm KBP-8 (not included in the package).
