EAN code8595568938329
Customs code73089059
Weight0,1400 kg/pcs
Surface finishZn+Mg+Al galvanizing
Temperature resistance-50 - 150 °C
Funcionality in fireP90-R, E90, PS90
StandardsČSN EN 61537
Fire resistance standardsČSN 73 0895, DIN 4102-12, STN 92 0205
Thickness of metal sheet0,75 mm
Dimension A54 mm
Dimension H12 mm
For width of cable tray50 mm

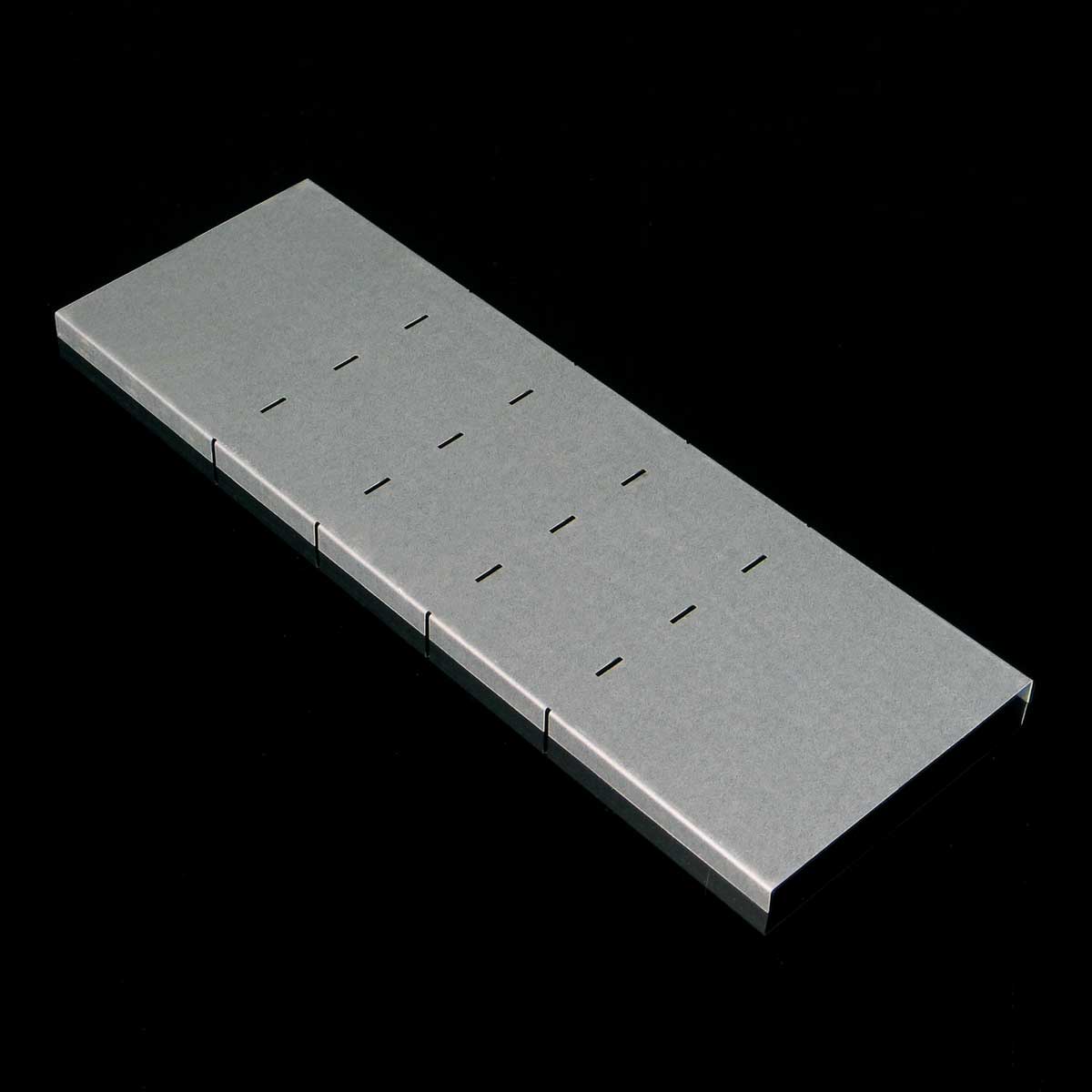

To fix the cover use 4 pcs of cover fixutres VU. The covers are delivered straight. They are made from one piece of sheet metal with pre-cut side walls for later bending during assembly.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
