EAN code8595568937957
Customs code73089059
Weight2,6000 kg/m
Surface finishZn+Mg+Al galvanizing
Temperature resistance-50 - 150 °C
Width300 mm
Height60 mm
Length3000 mm
Funcionality in fireP90-R, E90, PS90
StandardsČSN EN 61537
Fire resistance standardsČSN 73 0895, DIN 4102-12, STN 92 0205
Thickness of metal sheet1,2 - 1,5 mm
Quantity of screws for connecting4
Distance of partition300 mm
Max. load for fire resistance10 - 20 kg

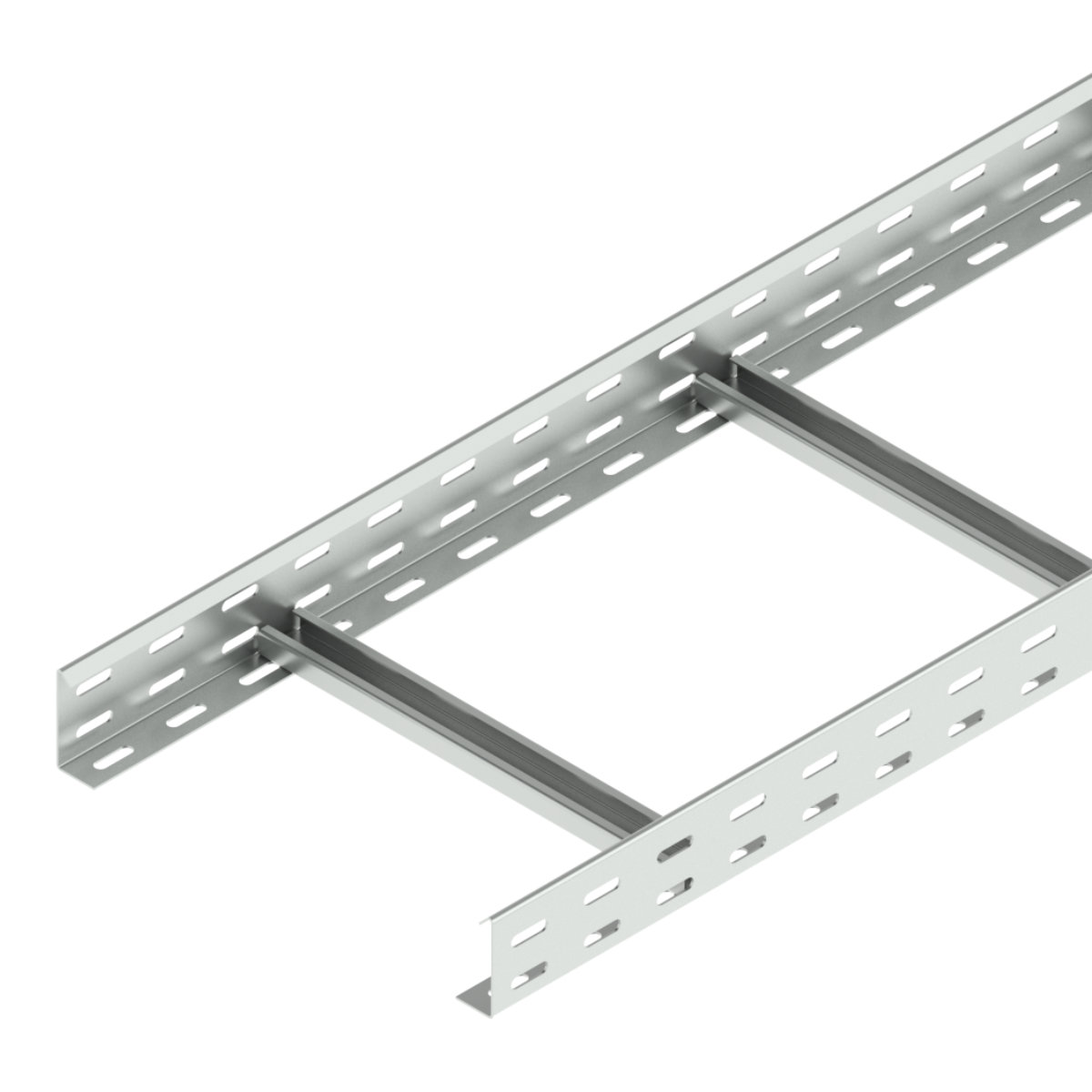

The joining of the ladders is performed by using the couplings S 60X200 and min. 4 pcs of bolts NSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.

Note for system with maintained functionality in fire:
For connecting the trays are designed for S 60X200 couplings and 16 pc NSM 6X10 screws.
You find more information in the catalogue Systems with maintained functionality in fire.
