KI68L1_EN
| EAN code | 8595057600119 |
| Customs code | 39259080 |
| Weight | 0,0827 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |
| Diameter | 80 mm |
| Depth | 50 mm |
| Milled (drilled) hole diameter | 79,5 mm |
| Manufactures´s recommendations For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Fire reaction class of underlying material | A - C3 |
| Allows to install double-socket | yes |
| Protection types | IP 30 |
| Standards | ČSN EN 60 670-1 |
| Package description individual boxes fitted with screws for installation in plasterboard | |

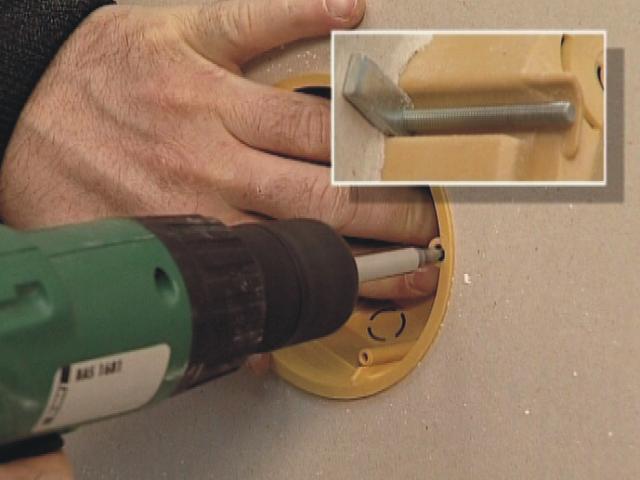

According to the formerly valid standard ČSN 73 0862 the box complies with materials of fire classes A - C3. Special added outer sheat. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection.
