EAN code8595568933782
Customs code39259020
Weight0.42 kg/m
Colourwhite
MaterialHF
Halogen free materialyes
Leadless materialyes
Self-extinguishing30 s
Temperature resistance-5 - 60 °C
Flaming loop test850 °C
Mechanical protectionIK06
Impact resistance0,5 J
Width60 mm
Height40 mm
Length2 m
Inside area1870 mm2
Allowance
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Use
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Notepackage in cardboard
Area with explosion danger
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Fire reaction classA1 - F
Protection typesIP 40
StandardsČSN EN 50 085-1
Package descriptionpackage - cardboard
With protective foilyes

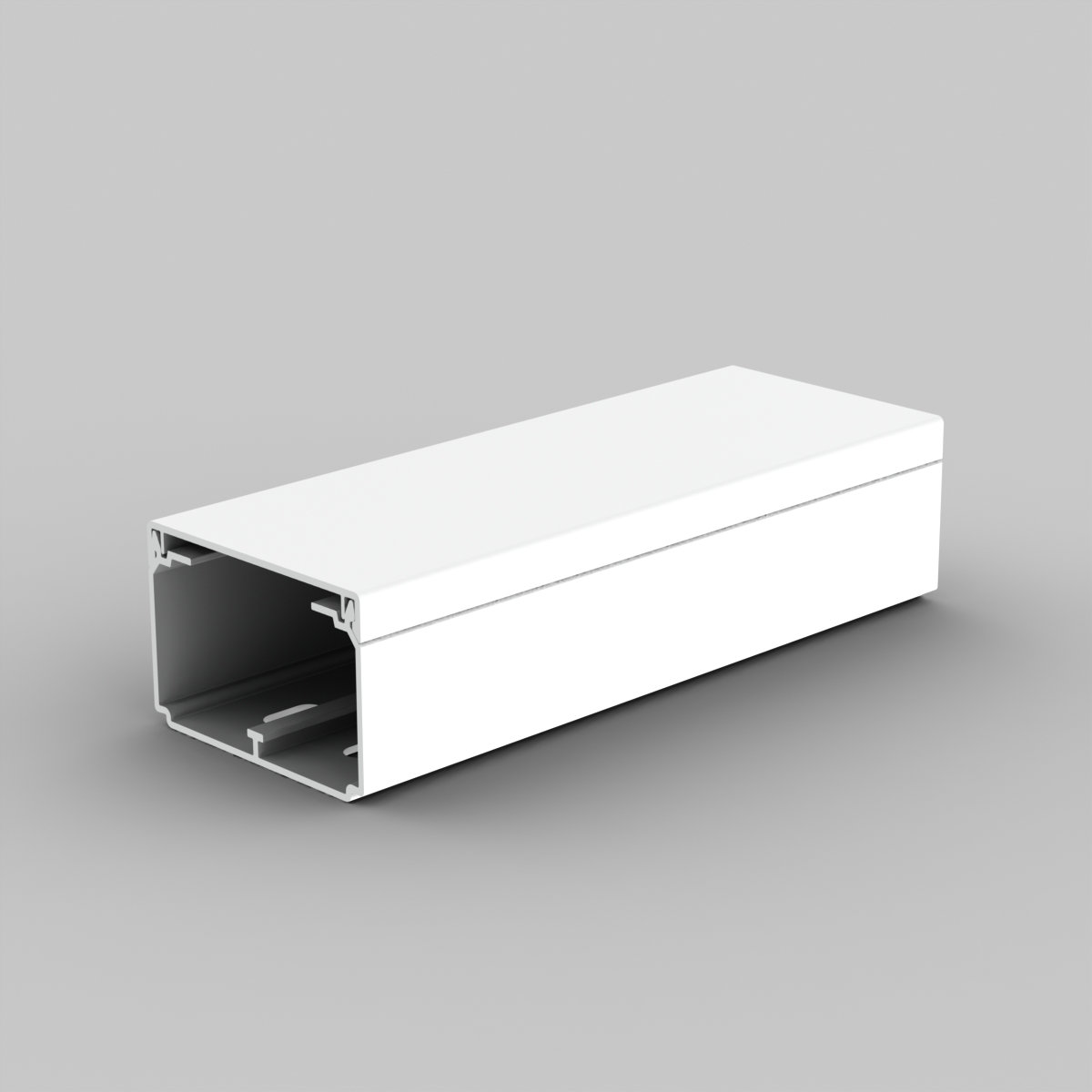

It does not contain halogen elements, suitable for environments with high concentrations of people. Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. The possibility of inserting partition wall PEKD 40HF. Spacers are included in the package – always 1 pc per 1 m.
